Heubach, located in Baden-Württemberg, Germany, presents a mixed picture for solar PV energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which affects the overall efficiency of solar installations.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 5.55 kWh per day output for each kW of installed solar capacity. Spring follows closely, generating 4.50 kWh per day. However, the performance drops considerably during autumn, with only 2.75 kWh per day, and plummets to a mere 1.31 kWh per day in winter.

These figures highlight the stark contrast between the warmer and colder months, indicating that solar energy production in Heubach is most effective from late spring through early autumn. During this period, longer daylight hours and higher sun angles contribute to increased energy generation.

Optimal Panel Installation

To maximize year-round solar production in Heubach, fixed panels should be installed at a 41-degree tilt angle facing south. This optimal angle takes into account the location's latitude and the sun's position throughout the year, ensuring the best possible energy capture across all seasons.

Environmental and Weather Factors

While Heubach's location is generally favorable for solar energy, there are some environmental and weather factors that could impact production:

• Cloud cover: The region experiences frequent cloud cover, especially during autumn and winter, which can significantly reduce solar output.
• Snow: Winter snowfall can temporarily cover panels, reducing efficiency until the snow melts or is removed.

To mitigate these issues, consider installing panels with anti-soiling coatings to reduce snow accumulation and ensure easier cleaning. Additionally, using microinverters or power optimizers can help maintain efficiency even when some panels are partially shaded or covered.

In conclusion, while Heubach's location presents challenges for year-round solar energy production, proper installation techniques and equipment choices can help maximize output during the more favorable months and mitigate the impact of less ideal conditions during autumn and winter.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

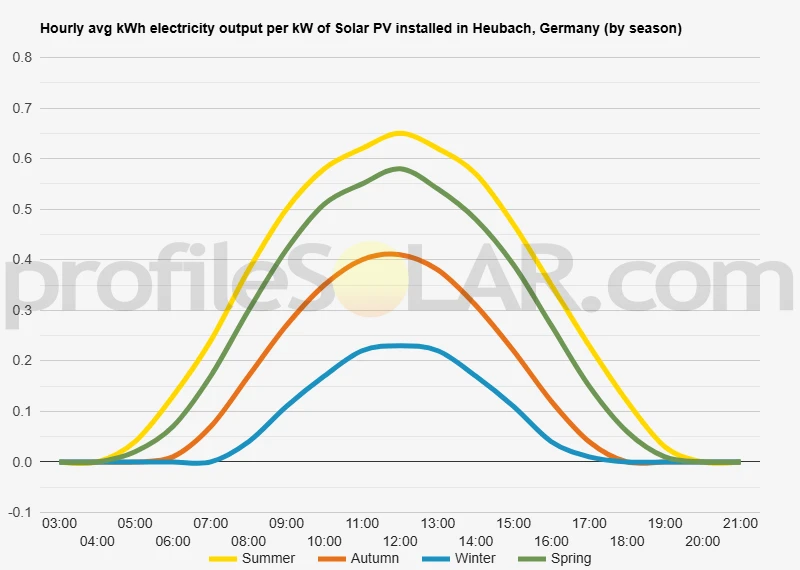

Solar output per kW of installed solar PV by season in Heubach

Seasonal solar PV output for Latitude: 48.7906, Longitude: 9.929 (Heubach, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Heubach, Germany

To maximize your solar PV system's energy output in Heubach, Germany (Lat/Long 48.7906, 9.929) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Heubach, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Heubach, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Heubach, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Heubach, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Heubach, Germany

The topography around Heubach, Germany, is characterized by a diverse landscape that combines rolling hills, forested areas, and open valleys. Situated in the eastern part of Baden-Württemberg, Heubach lies at the foot of the Swabian Alb, a low mountain range that dominates the region. The town itself is nestled in a valley, with gentle slopes rising on either side. To the south and east of Heubach, the terrain becomes more rugged as it transitions into the Swabian Alb. This area features limestone cliffs, steep hillsides, and picturesque plateaus. The elevation gradually increases as you move away from the town center, with some nearby peaks reaching heights of over 700 meters above sea level. North and west of Heubach, the landscape becomes slightly gentler, with undulating hills and broader valleys. This area is a mix of agricultural land, meadows, and patches of forest. Small streams and rivers crisscross the region, carving shallow valleys and contributing to the overall varied topography.

Potential Areas for Large-Scale Solar PV

When considering areas near Heubach that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have relatively flat or gently sloping terrain, good sun exposure, and minimal shading from nearby hills or forests. The most promising areas for solar PV development would likely be found in the more open landscapes to the north and west of Heubach. These regions offer larger expanses of agricultural land with fewer obstructions. The gently rolling hills in this direction provide opportunities for south-facing slopes, which are optimal for solar panel placement. However, it's important to note that the use of agricultural land for solar installations can be controversial and may face regulatory challenges. An alternative approach could be to consider brownfield sites or former industrial areas in the vicinity, if any exist, as these locations often provide large, open spaces without competing with agricultural use. The steeper and more forested areas to the south and east, while scenic, would generally be less suitable for large-scale solar PV due to increased shading and the challenges of installation on more rugged terrain. Nevertheless, smaller-scale installations might still be feasible on some of the south-facing slopes in these areas. Any large-scale solar PV project in the region would need to carefully balance energy production goals with environmental conservation and land use considerations, given the area's natural beauty and agricultural importance.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
