The location of Ingelheim, Rheinland-Pfalz, Germany, situated in the Northern Temperate Zone, presents a varied landscape for solar energy production throughout the year. This region experiences significant seasonal fluctuations in solar energy output, which directly impacts the efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy generation in Ingelheim, with an impressive daily output of 5.50 kWh per kW of installed solar capacity. Spring follows closely behind, yielding 4.51 kWh per day. These seasons offer the best conditions for maximizing solar energy production, thanks to longer daylight hours and generally clearer skies. Autumn sees a considerable drop in solar output, producing 2.53 kWh per day. Winter presents the greatest challenge, with daily production plummeting to just 1.19 kWh. This stark contrast highlights the importance of efficient energy storage and alternative power sources during the colder months.

Optimal Panel Installation

For fixed panel installations in Ingelheim, the ideal tilt angle to maximize year-round solar production is 42 degrees facing South. This angle is calculated to capture the most sunlight across all seasons, balancing the high summer sun with the lower winter sun angle.

Environmental Considerations

While Ingelheim's location is generally favorable for solar energy production, there are some environmental factors to consider: 1. Cloud cover: The region can experience significant cloud cover, especially during autumn and winter months, which can reduce solar efficiency. 2. Fog and mist: Being close to the Rhine River, Ingelheim may experience morning fog or mist, particularly in autumn and winter, potentially delaying the start of peak solar production hours. To mitigate these challenges, consider the following preventative measures: - Use high-efficiency solar panels that perform well in low-light conditions. - Implement a robust cleaning schedule to remove any dirt or debris that may accumulate, especially during foggy periods. - Consider incorporating solar tracking systems for larger installations to maximize energy capture throughout the day. In conclusion, while Ingelheim's location presents some challenges for year-round solar energy production, particularly in winter, it remains a viable option for renewable energy generation. With proper planning and the right equipment, solar PV systems can significantly contribute to the local energy mix, especially during the more productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

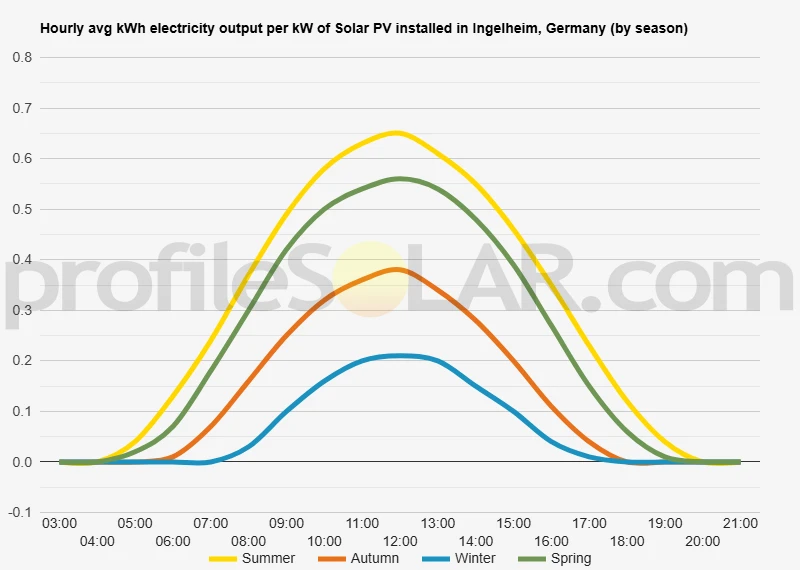

Solar output per kW of installed solar PV by season in Ingelheim

Seasonal solar PV output for Latitude: 49.9686, Longitude: 8.0641 (Ingelheim, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Ingelheim, Germany

To maximize your solar PV system's energy output in Ingelheim, Germany (Lat/Long 49.9686, 8.0641) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ingelheim, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ingelheim, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ingelheim, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ingelheim, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ingelheim, Germany

The topography around Ingelheim, Germany, is characterized by a diverse landscape that combines gentle hills, rolling vineyards, and expansive river valleys. Situated along the western bank of the Rhine River, Ingelheim is nestled in a region known as the Rheinhessen, which is renowned for its wine production and picturesque scenery. To the west of Ingelheim, the terrain gradually rises into the foothills of the Hunsrück mountain range. These hills are predominantly covered with forests and offer a stark contrast to the flatter areas near the Rhine. The eastern side of Ingelheim is dominated by the broad Rhine Valley, with its fertile floodplains and alluvial soils that have been cultivated for centuries. The immediate surroundings of Ingelheim feature a mix of agricultural land, particularly vineyards that stretch across the gentle slopes. These vine-covered hills create a patchwork of green that is typical of the region's landscape. Interspersed among the vineyards are small patches of woodland and orchards, adding to the area's diverse topography.

Potential Areas for Large-scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine relatively flat terrain, good sun exposure, and minimal conflict with existing land uses or protected areas. The expansive agricultural fields to the south and southwest of Ingelheim present promising opportunities for solar PV development. These areas offer large, open spaces with minimal shading from natural features or structures. The gently sloping terrain in this direction also provides favorable conditions for solar panel placement, allowing for optimal sun exposure throughout the day. Another potential area for solar PV installation lies to the northeast of Ingelheim, in the broader Rhine Valley. This region features extensive flat lands that are currently used for agriculture but could potentially accommodate solar farms. The wide-open spaces of the valley floor receive ample sunlight and have few obstructions that would impede solar energy collection. It's important to note that while these areas may be topographically suitable for solar PV, any large-scale development would need to carefully consider environmental impacts, local regulations, and the balance between energy production and preserving the region's agricultural heritage. The implementation of solar projects would require thorough assessment and planning to ensure they complement the existing landscape and land use patterns of the Rheinhessen region.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
