Ismaning, Bavaria, Germany is a location with moderate potential for solar energy generation, experiencing significant seasonal variations in solar electricity production throughout the year. This municipality in southern Germany demonstrates the typical solar generation pattern of the Northern Temperate Zone, with distinct differences between summer and winter output.

Seasonal Solar Production

The solar electricity generation at this Bavarian location shows a clear seasonal pattern. During summer, panels produce their highest output at 5.71kWh per day for each kilowatt installed. Spring follows as the second most productive season with 4.53kWh/day. Production drops considerably in autumn to 2.71kWh/day, while winter sees the lowest generation at just 1.41kWh/day per kilowatt installed.

This pattern creates a roughly 4:1 ratio between summer and winter production, highlighting the significant seasonal variation at this latitude. The most favorable period for solar generation runs from April through September, with May, June, July, and August being particularly productive months.

Optimal Installation Angle

For fixed solar panel installations in Ismaning, the ideal tilt angle to maximize year-round electricity production is 41 degrees facing South. This specific angle optimizes the annual solar harvest by balancing seasonal variations and the sun's changing position throughout the year.

Environmental Considerations

Several environmental factors in Ismaning can affect solar production:

• Winter snow accumulation can temporarily reduce output by covering panels, though the 41-degree tilt helps with natural snow shedding
• Fog from nearby Isar River and Munich's urban heat island may reduce production during autumn and winter months
• Bavaria's occasional hailstorms pose a physical risk to panel integrity
• Dust and pollen from surrounding agricultural areas and forests can accumulate on panels, particularly during spring and summer

Preventative Measures

To maximize solar production in Ismaning despite these challenges, several preventative measures are recommended. Installing panels with high-quality tempered glass provides better protection against hail damage. Regular cleaning, especially after pollen season or extended dry periods, helps maintain optimal performance. Snow removal systems or manual clearing after heavy snowfall prevents extended production losses in winter.

Additionally, microinverter or power optimizer technology can help minimize production losses when portions of the array are shaded or covered. Modern panels with anti-soiling coatings also reduce maintenance needs and improve performance in dusty conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

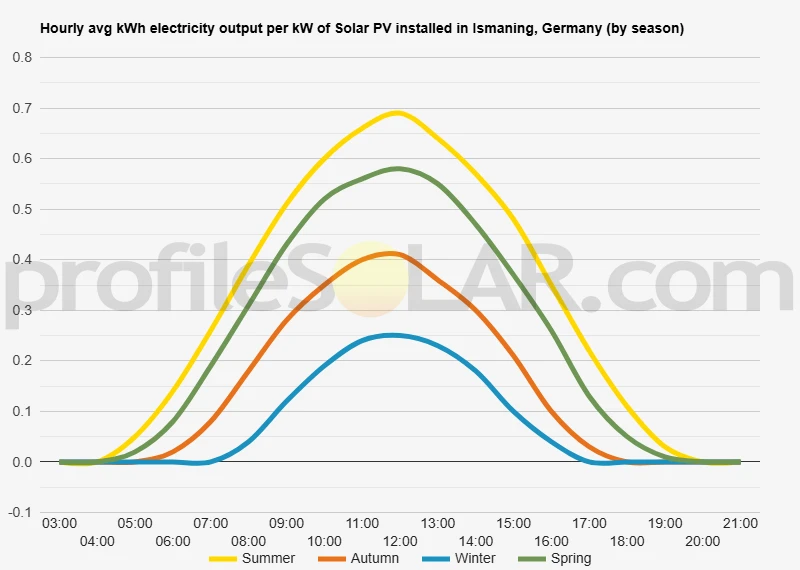

Solar output per kW of installed solar PV by season in Ismaning

Seasonal solar PV output for Latitude: 48.2397, Longitude: 11.6858 (Ismaning, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Ismaning, Germany

To maximize your solar PV system's energy output in Ismaning, Germany (Lat/Long 48.2397, 11.6858) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ismaning, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ismaning, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ismaning, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ismaning, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ismaning, Germany

Ismaning, Germany, located at approximately 48.2397° North, 11.6858° East, sits within the Munich metropolitan area in Bavaria. The topography around Ismaning is characterized by a relatively flat landscape, as it lies in the Munich Gravel Plain (Münchner Schotterebene), a large glacial outwash plain formed during the last ice age. This area is predominantly flat with subtle elevation changes, making it part of the broader North Alpine Foreland Basin. To the north of Ismaning flows the Isar River, which has shaped much of the local landscape over millennia. The river valley creates minor topographical variations, with slightly lower elevations along its course. The land gradually rises as one moves away from the river, though these elevation changes remain modest throughout the immediate vicinity.

Surrounding Landscape Features

The terrain around Ismaning consists primarily of agricultural fields, scattered forest patches, and developed areas. The municipality itself sits at an elevation of approximately 490 meters above sea level, with minimal variation throughout the immediate region. This flat character extends several kilometers in most directions, particularly to the north and east. To the south and southwest, the land begins a very gradual ascent toward the foothills of the Alps, though these more significant elevation changes only become noticeable at considerable distances from Ismaning. The Munich Airport lies to the northeast, occupying similar flat terrain characteristic of this region.

Potential Areas for Solar PV Development

Given the topographical characteristics of the region, several areas near Ismaning present favorable conditions for large-scale solar photovoltaic installations: The agricultural plains to the north and northeast of Ismaning offer extensive flat terrain with minimal shading concerns. These areas already feature some infrastructure development while maintaining large open spaces that could potentially accommodate solar arrays without significant grading requirements. The land between Ismaning and Garching to the west provides another potential zone for solar development. This area maintains the characteristic flat profile of the region while offering reasonable proximity to existing electrical infrastructure and transportation networks. Areas east of Ismaning toward Erding also present favorable topography for solar installations. The predominantly agricultural character of this zone, combined with its flat terrain, minimizes potential construction challenges and maximizes solar exposure potential.

Topographical Considerations for Solar Development

The minimal elevation changes throughout the region generally eliminate concerns about terrain-based shading that might otherwise reduce solar generation efficiency. The flat landscape means that panel orientation can be optimized based solely on solar path considerations rather than accommodating topographical constraints. Drainage considerations may be important in some areas closer to the Isar River, where seasonal water table fluctuations could potentially impact foundation designs for large installations. However, most of the surrounding region maintains sufficient elevation above the water table to mitigate these concerns. The Munich Gravel Plain's geological composition provides relatively stable foundation conditions for solar infrastructure, with good load-bearing capacity throughout most of the region. This characteristic reduces potential construction costs associated with specialized foundation requirements that might be necessary in less stable terrain. In summary, the predominantly flat topography surrounding Ismaning creates generally favorable conditions for large-scale solar PV development, with the agricultural areas to the north, east, and west offering the most promising combination of terrain characteristics and practical development considerations.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
