Solar Energy Potential in Jettingen-Scheppach, Bavaria

The location of Jettingen-Scheppach, Bavaria, Germany, situated in the Northern Temperate Zone, offers varying potential for solar energy generation throughout the year. This area experiences significant seasonal fluctuations in solar output, which directly impacts the efficiency of photovoltaic (PV) systems. Summer presents the most favorable conditions for solar energy production, with an average daily output of 5.71 kWh per kW of installed solar capacity. This high yield is due to longer daylight hours and more direct sunlight during the summer months. Spring follows as the second-most productive season, generating an average of 4.53 kWh per day per kW installed. Autumn sees a considerable decrease in solar output, with daily production dropping to 2.71 kWh per kW installed. Winter, as expected, offers the least favorable conditions for solar energy generation, with a mere 1.41 kWh per day per kW of installed capacity. This significant reduction is attributed to shorter daylight hours, lower sun angles, and potentially increased cloud cover during the winter months.

Optimal Panel Installation

For fixed panel installations in Jettingen-Scheppach, the ideal tilt angle to maximize year-round solar production is 41 degrees facing South. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit and seasonal variations in the sun's position.

Environmental and Weather Considerations

While Jettingen-Scheppach's location is generally suitable for solar energy production, there are some factors that could potentially impact system efficiency:

• Cloud cover: Bavaria experiences significant cloud cover, especially during autumn and winter, which can reduce solar output.
• Snow: Winter snowfall may temporarily cover panels, reducing their effectiveness.

To mitigate these issues, consider the following preventative measures: 1. Install panels at the optimal angle to encourage snow sliding off. 2. Use high-quality, anti-reflective coatings on panels to maximize light absorption even in low-light conditions. 3. Implement a regular cleaning schedule to remove any snow or debris from panels. 4. Consider using microinverters or power optimizers to minimize the impact of partial shading on overall system performance. By addressing these factors and optimizing panel placement, solar PV systems in Jettingen-Scheppach can still provide significant energy production, particularly during the spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

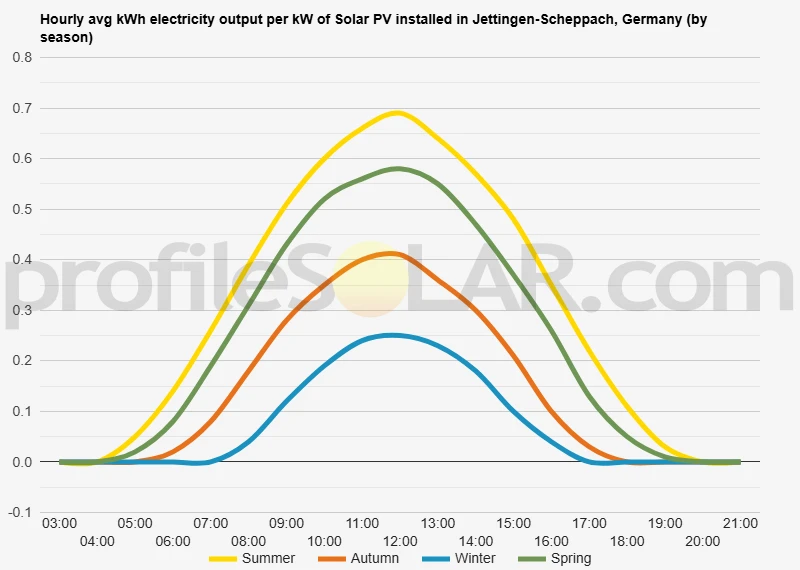

Solar output per kW of installed solar PV by season in Jettingen-Scheppach

Seasonal solar PV output for Latitude: 48.3883, Longitude: 10.4436 (Jettingen-Scheppach, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Jettingen-Scheppach, Germany

To maximize your solar PV system's energy output in Jettingen-Scheppach, Germany (Lat/Long 48.3883, 10.4436) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jettingen-Scheppach, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jettingen-Scheppach, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jettingen-Scheppach, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jettingen-Scheppach, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jettingen-Scheppach, Germany

The topography around Jettingen-Scheppach, Germany, is characterized by gently rolling hills and valleys typical of the Swabian Alb region. This small town is situated in the southwestern part of Bavaria, nestled within a landscape that transitions from the flatter areas of the Danube plain to the more elevated terrain of the Swabian Jura. The area features a mix of agricultural fields, meadows, and patches of forest, creating a diverse and picturesque rural setting. The town itself lies at an elevation of approximately 500 meters above sea level, with the surrounding terrain gradually rising and falling within a range of about 100 meters. To the south and east, the land becomes slightly more undulating, with some steeper slopes and deeper valleys carved by small streams and rivers. The northern and western areas tend to be somewhat flatter, with more expansive open spaces.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The relatively open landscape to the north and west of Jettingen-Scheppach offers promising potential for solar energy development. These areas typically have fewer obstructions that could cast shadows on solar panels, allowing for maximum sun exposure throughout the day. The gently sloping fields in these directions provide natural south-facing inclines, which are ideal for optimizing solar panel efficiency. Additionally, these areas often have existing road infrastructure, making them more accessible for construction and maintenance of solar facilities. It's worth noting that while the hillier regions to the south and east may seem less suitable at first glance, they could still offer viable locations for solar farms. Modern solar panel technologies can adapt to various terrain types, and some elevated areas might actually benefit from reduced fog exposure and potentially clearer skies. However, any large-scale solar PV project would need to carefully balance energy production goals with environmental and agricultural considerations. The region's agricultural importance means that planners would need to work closely with local authorities and landowners to identify suitable sites that don't significantly impact food production or natural habitats. In conclusion, while the entire area around Jettingen-Scheppach has potential for solar energy development, the flatter, more open spaces to the north and west appear to offer the most promising conditions for large-scale solar PV installations, subject to detailed site assessments and local planning regulations.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
