Karben, Hesse, Germany shows typical Northern Temperate Zone characteristics for solar energy generation, with significant seasonal variation in electricity output that makes it a moderately suitable location for year-round solar PV installations.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 5.20kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 4.23kWh per day per kW, offering excellent energy production as daylight hours increase and weather conditions improve. Autumn sees a notable drop to 2.29kWh per day per kW as the region transitions toward winter conditions. Winter presents the most challenging period, producing only 1.09kWh per day per kW of installed solar capacity - roughly one-fifth of summer output.

Optimal Installation Configuration

For fixed panel installations at Karben, the ideal tilt angle to maximize total year-round solar production is 42 degrees facing south. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to achieve the best annual average performance.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Karben area can significantly impact solar energy generation:

• Frequent cloud cover and overcast conditions, particularly during autumn and winter months
• Snow accumulation on panels during winter, which can completely block solar collection
• Higher humidity levels that can reduce solar irradiance
• Seasonal fog, especially during transitional periods

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help. Installing panels at the recommended 42-degree tilt angle naturally helps snow slide off more easily, reducing winter blockages. Regular maintenance schedules should include panel cleaning to remove dirt, debris, and snow buildup. Consider installing micro-inverters or power optimizers rather than traditional string inverters, as these can minimize the impact when individual panels are partially shaded or snow-covered. Proper spacing between panel rows prevents shading issues and allows better air circulation. Location selection within your property matters significantly. Choose installation sites away from trees, buildings, or other structures that could create shadows, especially during the lower sun angles of autumn and winter when every bit of available sunlight becomes more valuable.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

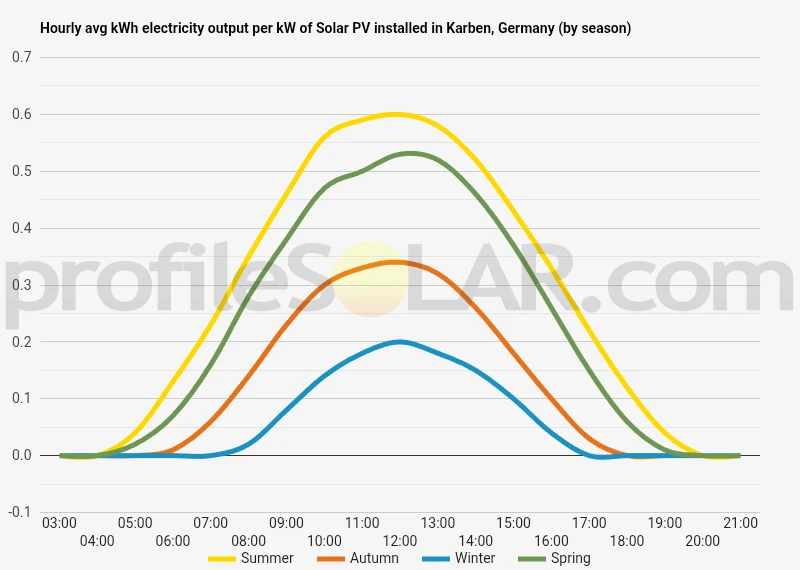

Solar output per kW of installed solar PV by season in Karben

Seasonal solar PV output for Latitude: 50.2305, Longitude: 8.782 (Karben, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Karben, Germany

To maximize your solar PV system's energy output in Karben, Germany (Lat/Long 50.2305, 8.782) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Karben, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Karben, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Karben, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Karben, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Karben, Germany

Topographical Features Around Karben

Karben sits in the Wetterau region of Hesse, positioned within the gently undulating landscape of the Rhine-Main metropolitan area. The terrain around this location is characterized by relatively flat to gently rolling hills, with elevations typically ranging between 120 and 200 meters above sea level. The topography is part of the broader Upper Rhine Plain system, which creates favorable conditions for various land uses including renewable energy installations. The immediate area features a mix of agricultural fields, small woodlands, and scattered residential developments. The landscape slopes gradually toward the Rhine valley to the west, while rising more noticeably toward the Taunus mountain foothills to the north and east. These modest elevation changes create a varied but generally accessible terrain that avoids the steep gradients found in Germany's more mountainous regions. Several small streams and drainage channels flow through the area, creating minor valleys and depressions in what is otherwise a fairly uniform landscape. The Nidda River flows roughly north to south through the broader region, contributing to the gentle topographical variations. The soils in this area are primarily fertile loess and alluvial deposits, supporting the region's agricultural character.

Optimal Areas for Large-Scale Solar Development

The agricultural plains extending southwest and southeast of Karben present the most suitable terrain for large-scale solar photovoltaic installations. These areas offer extensive flat to gently sloping fields with minimal obstructions and good accessibility for construction and maintenance vehicles. The open agricultural landscape provides the necessary space for utility-scale solar farms while maintaining reasonable distances from residential areas. The slightly elevated areas to the southeast, toward Bad Vilbel and the Frankfurt periphery, offer particularly favorable conditions due to their gentle south-facing slopes and minimal shading from vegetation or structures. These locations benefit from the natural topographical advantage of southern exposure while remaining sufficiently flat for efficient panel installation and maintenance access. Areas immediately west of Karben, stretching toward the Rhine valley, also present good opportunities for solar development. The terrain here is predominantly flat with good drainage characteristics, reducing concerns about water accumulation around solar installations. The proximity to existing electrical infrastructure serving the Rhine-Main metropolitan area provides additional advantages for grid connection. The northern areas, while topographically suitable in many locations, become increasingly influenced by the Taunus foothills and associated woodland cover. However, cleared agricultural areas in this direction still offer viable options for solar development, particularly those with southern exposure and minimal tree coverage that could create shading issues. Transportation access throughout the region is generally excellent, with the area well-served by federal highways and regional roads that would facilitate the construction and ongoing maintenance of large solar installations. The relatively stable geology and well-drained soils characteristic of this part of the Wetterau region provide solid foundations for mounting systems and minimize concerns about ground movement or waterlogging.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
