Solar PV Analysis of Karlsruhe, Germany
Karlsruhe, Germany is a suitable location for generating solar power throughout the year. In this region, the average daily energy production per kW of installed solar capacity varies by season: 5.59 kWh in summer, 4.56 kWh in spring, 2.81 kWh in autumn, and 1.37 kWh in winter. The ideal angle for tilting solar panels at this location is 42 degrees facing south to maximize sunlight exposure.
While Karlsruhe experiences relatively good solar potential during most of the year, factors such as heavy cloud cover or extreme cold temperatures can impact power generation from photovoltaic (PV) systems. These conditions limit the amount of sunlight reaching the panels and decrease their efficiency in converting sunlight into electricity.
To mitigate these challenges and ensure greater energy production, it's essential to properly maintain and clean solar panels regularly to remove any dirt or debris that could obstruct sunlight absorption. Additionally, investing in high-quality PV modules with better low-light performance and temperature coefficients can help improve overall system efficiency under less-than-ideal weather conditions.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

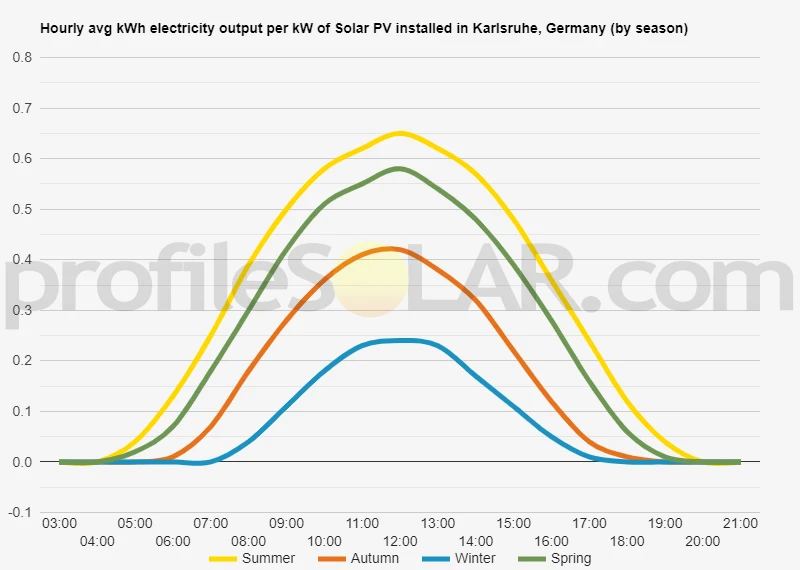

Solar output per kW of installed solar PV by season in Karlsruhe
Seasonal solar PV output for Latitude: 48.9677, Longitude: 8.3967 (Karlsruhe, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 42° South in Karlsruhe, Germany
To maximize your solar PV system's energy output in Karlsruhe, Germany (Lat/Long 48.9677, 8.3967) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Karlsruhe, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Karlsruhe, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 32° South in Summer | 52° South in Autumn | 62° South in Winter | 41° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Karlsruhe, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Karlsruhe, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Karlsruhe, Germany
The topography around Karlsruhe, Germany is generally flat with some low hills in the east and south. The city itself is located in a valley along the Rhine River. Areas to the north of Karlsruhe are most suited for large scale solar PV due to their open fields and flat terrain. Additionally, areas further away from the city center may have fewer shadows cast by buildings and trees, which can reduce solar energy production potential.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
