Kleinostheim, Bavaria, Germany is a location with moderate potential for solar PV energy generation throughout the year, experiencing significant seasonal variations in energy production. Located in the Northern Temperate Zone, this site demonstrates the typical European pattern of higher solar yields in summer months and notably reduced output during winter.

Seasonal Solar Production

The energy output from solar PV systems in Kleinostheim varies considerably across the four seasons. Summer represents the peak production period with 5.50kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding 4.50kWh/day per kW. Production decreases substantially in autumn to 2.54kWh/day per kW, while winter shows the lowest generation at just 1.21kWh/day per kW of installed capacity.

This pattern indicates that Kleinostheim's solar potential is heavily concentrated in the warmer months from late spring through early autumn. The nearly 4.5 times difference between summer and winter production highlights the seasonal dependency of solar energy at this location.

Optimal Installation Parameters

For fixed solar panel installations in Kleinostheim, the ideal tilt angle to maximize year-round energy production is 42 degrees facing South. This angle has been calculated by analyzing daily solar elevation patterns at this latitude, weighted by the potential solar irradiance throughout the year.

Environmental and Weather Considerations

Several factors may impact solar production efficiency in Kleinostheim. The region experiences frequent cloud cover during winter months, contributing to the low winter yields. Additionally, Bavaria can face periodic fog conditions in autumn and early winter mornings, temporarily reducing generation capacity.

Snow accumulation presents another challenge during winter months, potentially covering panels and blocking sunlight. To address this, installations should include:

• Steeper panel angles (the recommended 42 degrees helps with this) to facilitate natural snow sliding
• Accessible panel placement to allow for manual snow removal when necessary
• Higher ground clearance to prevent snow buildup from ground accumulation

Dust and pollen can also reduce efficiency, particularly during spring when pollen counts are high and during dry summer periods. Regular cleaning maintenance should be scheduled, with self-cleaning systems being beneficial for larger installations.

While not severe, occasional hailstorms in summer months could potentially damage panels. Using hail-resistant panels with appropriate certification for the region is recommended for long-term reliability.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

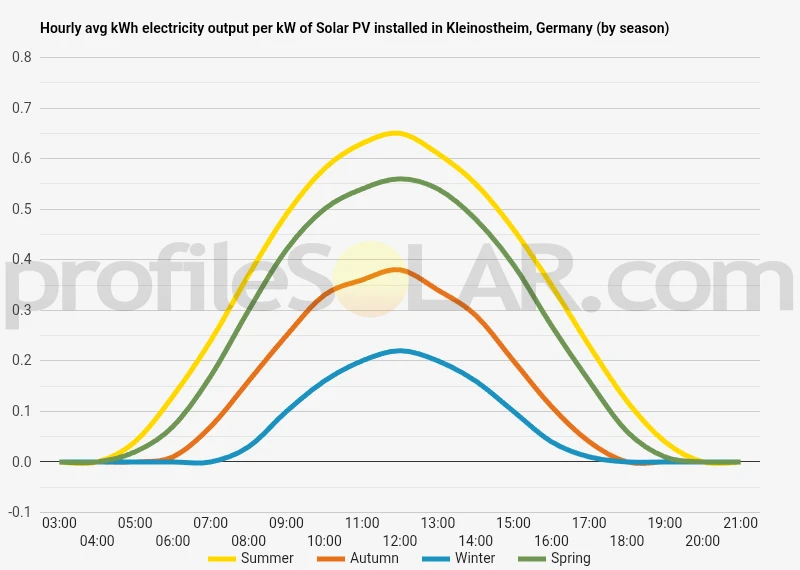

Solar output per kW of installed solar PV by season in Kleinostheim

Seasonal solar PV output for Latitude: 49.998, Longitude: 9.0613 (Kleinostheim, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Kleinostheim, Germany

To maximize your solar PV system's energy output in Kleinostheim, Germany (Lat/Long 49.998, 9.0613) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kleinostheim, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kleinostheim, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kleinostheim, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kleinostheim, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kleinostheim, Germany

The topography around Kleinostheim, Germany features gently rolling terrain situated in the Main River valley. This small municipality lies in the northwestern part of Bavaria, near the border with Hesse, and sits at an elevation of approximately 115 meters above sea level. The landscape is characterized by the broad, flat floodplain of the Main River which flows nearby, with gradual slopes rising on either side of the valley. To the east of Kleinostheim, the terrain begins to rise toward the foothills of the Spessart mountain range, a heavily forested area with elevations reaching several hundred meters. The western side of the region transitions toward the Rhine-Main lowlands, maintaining a relatively flat profile. This varied topography creates a mosaic of land uses, including agricultural fields, forested patches, and developed areas.

Solar PV Suitability in the Region

For large-scale solar PV development, the most suitable areas near Kleinostheim would be the open agricultural lands that lie primarily to the north and northwest of the town. These areas offer several advantageous characteristics: The flat or gently sloping agricultural fields provide ideal conditions for the installation of ground-mounted solar arrays without requiring significant terrain modification. These open spaces also experience minimal shading from natural features or structures, maximizing potential solar exposure throughout the day. The areas between Kleinostheim and neighboring Aschaffenburg, particularly the agricultural zones that aren't in the immediate floodplain, represent prime locations. These lands combine favorable topography with proximity to existing electrical infrastructure, which can reduce interconnection costs for large-scale solar projects. Areas to avoid would include the steeper forested slopes of the Spessart to the east, which would require extensive clearing and grading, creating environmental concerns and higher development costs. Similarly, the immediate floodplain areas along the Main River present flooding risks that could compromise solar infrastructure. The gently undulating terrain north of Kleinostheim, extending toward Hanau and Seligenstadt, offers a good balance of suitable topography, existing access roads, and proximity to population centers that could utilize the generated electricity. These areas typically feature adequate drainage and stable ground conditions necessary for the foundations of solar mounting systems.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
