Mayen, Rheinland-Pfalz, Germany presents a moderately challenging location for year-round solar photovoltaic energy generation. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar energy production that are typical for its latitude.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 5.08 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 4.38 kWh per day per kW, offering nearly comparable production levels. Autumn sees a significant drop to 2.37 kWh per day per kW, while winter presents the most challenging conditions with only 1.11 kWh per day per kW of installed capacity. This represents less than a quarter of summer production, highlighting the substantial seasonal challenges faced by solar installations in this region.

Optimal Installation Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 43 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for daily photovoltaic potential.

Local Factors Affecting Solar Production

Several environmental and weather factors can significantly impact solar energy production in Mayen:

• Snow accumulation: Winter snow can completely block solar panels, eliminating energy production during covered periods
• Frequent cloud cover: The region's temperate maritime climate brings regular overcast conditions, particularly during autumn and winter months
• Atmospheric moisture: High humidity and frequent precipitation can reduce solar irradiance reaching the panels
• Dust and debris: Accumulated dirt, leaves, and organic matter can reduce panel efficiency over time

Preventative Measures for Enhanced Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Steeper panel angles: Installing panels at angles greater than 43 degrees can help snow slide off more easily, though this may slightly reduce optimal summer production
• Regular maintenance schedules: Implementing quarterly cleaning and inspection programs to remove debris and ensure optimal panel performance
• Anti-soiling coatings: Applying hydrophobic coatings to panel surfaces can help rain wash away dirt and reduce manual cleaning requirements
• Adequate spacing: Ensuring proper spacing between panel rows prevents shading and allows for maintenance access
• Snow guards and heating systems: Installing heating elements or snow management systems for critical installations where winter production is essential

The location's solar potential is reasonable for a Northern European site, but the dramatic seasonal variation means that energy storage or grid-tied systems are essential for consistent year-round power supply. The strong spring and summer production can offset much of the winter deficit when properly planned.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

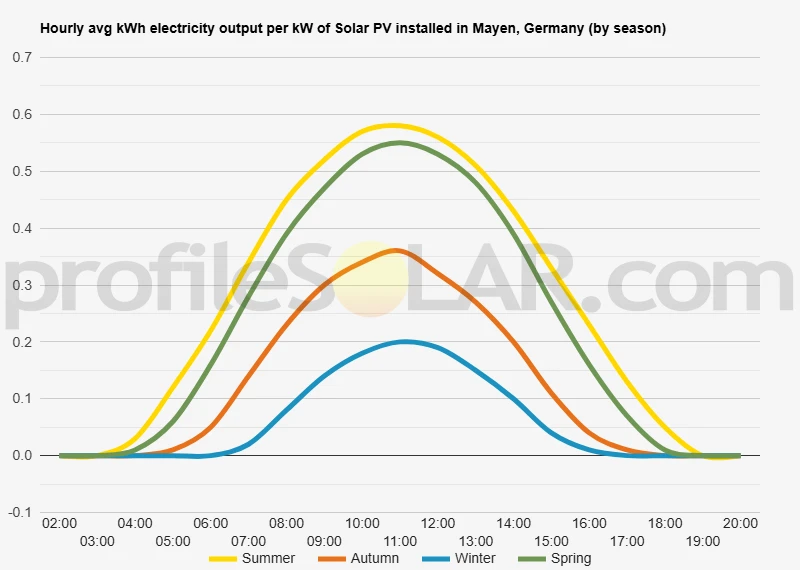

Solar output per kW of installed solar PV by season in Mayen

Seasonal solar PV output for Latitude: 50.3278, Longitude: 7.2186 (Mayen, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Mayen, Germany

To maximize your solar PV system's energy output in Mayen, Germany (Lat/Long 50.3278, 7.2186) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mayen, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mayen, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mayen, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mayen, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mayen, Germany

Topographical Features of the Mayen Region

Mayen sits in the heart of the Rhineland-Palatinate region of western Germany, positioned within a landscape shaped by ancient volcanic activity and river valleys. The town itself occupies an elevated position at approximately 270 meters above sea level, nestled between the Rhine Valley to the east and the volcanic Eifel highlands to the west. This location places it on gently rolling terrain that transitions from the flatter Rhine plains toward the more pronounced hills of the Eifel Mountains.

The surrounding topography is characterized by a mix of gentle slopes, broad valleys, and occasional steeper inclines as the land rises toward the volcanic peaks of the Eifel region. To the immediate west of Mayen, the landscape becomes increasingly hilly, with elevations reaching 400-500 meters in many areas. The famous Laacher See, a volcanic crater lake, lies just southeast of the town, representing one of the most dramatic topographical features in the immediate vicinity.

The terrain around Mayen benefits from relatively open countryside with moderate elevation changes. Agricultural fields dominate much of the landscape, interspersed with patches of deciduous and mixed forests. The river valleys, particularly those carved by tributaries of the Rhine system, create natural corridors of flatter land that wind through the otherwise undulating terrain.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Mayen would be found on the gently sloping agricultural lands that extend eastward toward the Rhine Valley. These areas offer several advantages including relatively flat to moderately sloped terrain that can accommodate extensive solar arrays without requiring significant grading or earthwork. The eastern approaches to Mayen, where the land begins its gradual descent toward the Rhine plain, present particularly suitable conditions with good southern exposure and minimal topographical obstacles.

South-facing slopes throughout the region would be especially valuable for solar development, as they naturally optimize panel orientation. The agricultural areas between Mayen and the Rhine Valley often feature these favorable slope orientations while maintaining gentle enough gradients to support large installations. These locations also tend to have fewer forested areas that might create shading issues or require extensive clearing.

The broader valleys that cut through the landscape around Mayen offer additional opportunities for solar development. These valley floors and their gentle side slopes often provide substantial contiguous areas suitable for large installations while avoiding the steeper terrain found in the higher elevations to the west. The agricultural character of much of this land also means that existing infrastructure access is often already established, which can facilitate the development and maintenance of solar facilities.

Areas to the north and northeast of Mayen, where the topography remains relatively gentle before rising toward the volcanic highlands, would also present good opportunities. These locations combine favorable terrain characteristics with the practical advantages of being situated away from the most densely forested portions of the Eifel region while still maintaining reasonable proximity to existing electrical infrastructure and transportation networks.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
