Solar PV Analysis of Meckenbeuren, Germany
The location at Meckenbeuren, Baden-Wurttemberg, Germany is decent for generating energy via solar PV year-round. Solar power works by converting sunlight into electricity, so the amount of sunlight a location gets throughout the year can affect how much energy you can generate.
In summer and spring, this location gets quite a bit of sun with 5.71kWh/day and 4.85kWh/day per kW of installed solar respectively. This means that these seasons would be the most ideal times to generate solar power at this location as more sunlight equals more potential electricity generation.
However in autumn and winter, there's less sunlight with only 2.99kWh/day and 1.52kWh/day per kW of installed solar respectively meaning less potential for electricity generation from your solar panels during these seasons.
If you're considering installing fixed panel installation at this location it's best to tilt them towards south at an angle of 41 degrees as it will maximize total year-round production from your solar PV system due to the way sun moves across the sky in this part of world.
As far as environmental or weather factors that could potentially impede solar production at this site are concerned; cloud cover and snowfall during winter months could reduce efficiency because they block out sunlight which is essential for producing electricity through your panels.
To ensure greater energy production despite these factors you may consider installing devices to automatically remove snow from your panels or use anti-reflective coating on them which helps improve their performance even under cloudy conditions by allowing more light absorption.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

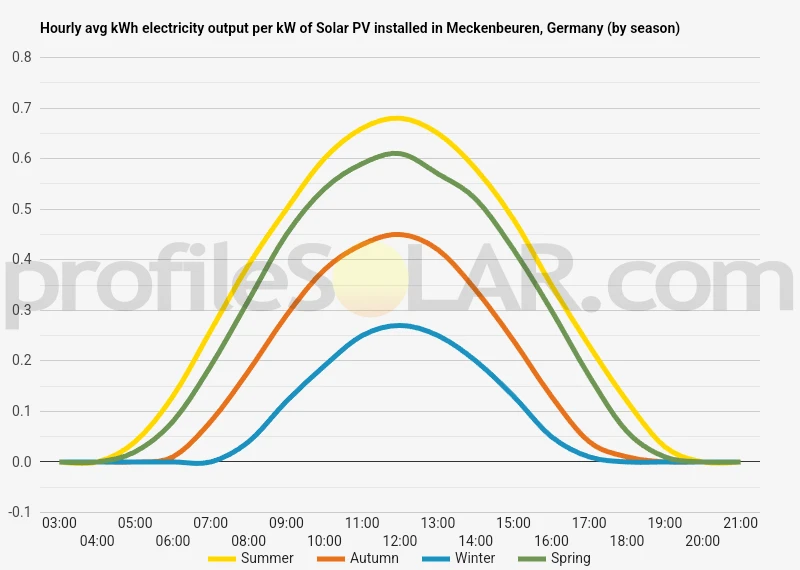

Solar output per kW of installed solar PV by season in Meckenbeuren
Seasonal solar PV output for Latitude: 47.701, Longitude: 9.5713 (Meckenbeuren, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Meckenbeuren, Germany
To maximize your solar PV system's energy output in Meckenbeuren, Germany (Lat/Long 47.701, 9.5713) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Meckenbeuren, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Meckenbeuren, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 31° South in Summer | 50° South in Autumn | 61° South in Winter | 40° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Meckenbeuren, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Meckenbeuren, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Meckenbeuren, Germany
Meckenbeuren, Germany is located in the southern part of the country, in a region known as Baden-Württemberg. The topography of this area is characterized by gently rolling hills and valleys, with some forested areas. The region also contains several lakes and rivers.
When considering large-scale solar photovoltaic (PV) installations, it's important to consider factors such as sun exposure, land availability and slope, proximity to power lines or grids for transmission of electricity generated.
Given Meckenbeuren's geographical location and topography:
1. Open fields: Large open agricultural fields would be ideal for setting up solar PV systems due to their direct exposure to sunlight with minimal shading from trees or buildings.
2. Near industrial zones: If there are any industrial zones nearby which have large rooftops or unused spaces available, these could potentially be used for installing solar panels.
3. Unused lands: Any non-agricultural land that isn't being utilized can also be considered if it has good sun exposure.
4. Sloping hillside facing south: As long as they aren't too steeply sloped (which might cause issues with installation), south-facing slopes can provide excellent conditions for maximizing sun exposure throughout the day because they face towards the equator in Northern Hemisphere locations like Germany.
Remember that local regulations about land use should always be consulted before planning any large-scale renewable energy projects.
It's worth noting that Germany has a strong commitment to renewable energy production so there may already exist incentives or programs supporting such initiatives at both regional and national levels.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
