Solar Energy Potential in Montabaur, Germany

Montabaur, located in Rheinland-Pfalz, Germany, presents a moderate opportunity for solar PV energy generation with significant seasonal variations. This Northern Temperate Zone location experiences distinct energy production patterns throughout the year that potential solar adopters should understand. The seasonal solar production varies considerably at this location. Summer is the most productive period, generating an average of 5.07kWh of electricity per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 4.36kWh/day. Production drops substantially in autumn to 2.36kWh/day, while winter sees the lowest output at just 1.08kWh/day per kilowatt installed.

Optimal Installation Angle

For fixed panel installations in Montabaur, the ideal angle to maximize year-round solar production is 43 degrees facing South. This specific tilt optimizes the capture of available sunlight throughout the year, accounting for the location's latitude and seasonal sun paths.

Seasonal Considerations

The stark contrast between summer and winter production (nearly 5 times difference) indicates that Montabaur is far from ideal for consistent year-round solar generation. The location experiences approximately 4.7 times more energy production in summer than in winter. This means solar installations here will produce most of their annual energy during the warmer months, with significantly reduced output during the colder season.

Environmental and Weather Factors

Several local factors may impact solar production in Montabaur:

• Cloud cover and precipitation: The region experiences frequent cloudy days, particularly in winter months, which significantly reduces solar efficiency.
• Snow accumulation: Winter snowfall can cover panels and halt production until cleared.
• Fog and mist: Common in valley regions of Rheinland-Pfalz, reducing solar irradiance.

Mitigation Strategies

To maximize solar production despite these challenges:

• Install panels with self-cleaning surfaces or implement regular cleaning schedules, especially after snowfall
• Consider slightly steeper panel angles (45-50 degrees) if winter production is particularly important
• Implement micro-inverters or power optimizers to minimize the impact of partial shading
• Ensure adequate spacing between panel rows to reduce snow accumulation and shadow effects

While not ideal for year-round consistent production, Montabaur can still benefit from solar PV installations, particularly when designed with these seasonal variations in mind. The strong summer and spring production can provide significant energy, though supplementary sources would be beneficial during the low-production winter months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

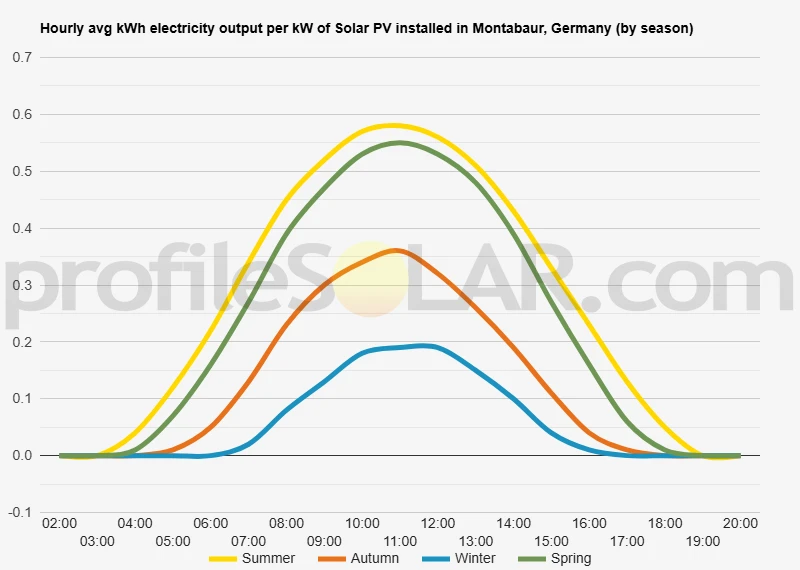

Solar output per kW of installed solar PV by season in Montabaur

Seasonal solar PV output for Latitude: 50.4325, Longitude: 7.8183 (Montabaur, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Montabaur, Germany

To maximize your solar PV system's energy output in Montabaur, Germany (Lat/Long 50.4325, 7.8183) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Montabaur, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Montabaur, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	63° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Montabaur, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Montabaur, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Montabaur, Germany

The landscape around Montabaur, Germany presents a diverse topography characterized by rolling hills, forested areas, and valleys typical of the western German uplands. Situated in the Westerwald region of Rhineland-Palatinate, Montabaur sits at an elevation of approximately 265 meters above sea level, with surrounding terrain that varies significantly in elevation.

Regional Topographical Features

Montabaur is nestled in a transitional zone between the lower elevations of the Rhine Valley to the west and the higher elevations of the Westerwald plateau to the east. The immediate vicinity features gently undulating hills that gradually rise toward the east, where the Westerwald reaches elevations of over 500 meters. The western approach to Montabaur is marked by a gradual descent toward the Lahn Valley. The area is crossed by several small streams and minor river valleys that have carved shallow depressions in the landscape over geological time. These waterways generally flow westward, eventually reaching the Rhine River system. The resulting terrain creates a patchwork of slopes with varying aspects (directions), which has implications for solar potential. Forests cover significant portions of the surrounding hills, particularly on steeper slopes and higher elevations. Agricultural land occupies many of the gentler slopes and valley bottoms, creating an intermixed pattern of woodland and open areas typical of this region of Germany.

Solar PV Suitability

For large-scale solar PV installations, several areas near Montabaur offer favorable conditions based on topographical considerations: The relatively flat agricultural plateaus to the south and southeast of Montabaur present prime opportunities for solar development. These areas combine adequate elevation with minimal shading from surrounding terrain features. The gently sloping character of these lands allows for efficient arrangement of solar arrays while minimizing the earthwork required for installation. South-facing slopes throughout the region, particularly those with inclinations between 5-15 degrees, provide naturally optimized conditions for solar collection. Several such areas can be found in the transitional zones between the valleys and higher elevations within a 10-kilometer radius of Montabaur. The more elevated portions of the Westerwald plateau to the east, where forest cover gives way to agricultural use, offer another potential zone for development. These higher elevations experience less topographical shading and potentially clearer atmospheric conditions. Areas to avoid include the narrow valley bottoms, which may experience extended periods of shading from surrounding hills, and north-facing slopes, which receive significantly reduced solar radiation in this northern hemisphere location. Former industrial or commercial sites around the periphery of Montabaur and neighboring communities could provide suitable locations for solar development without impacting agricultural productivity. These brownfield sites often feature the level terrain and existing infrastructure connections beneficial for solar installations. The varied topography does present some challenges for very large contiguous installations, as the fragmented nature of suitable terrain may necessitate multiple smaller arrays rather than single massive facilities. However, this distributed approach may better integrate with the existing landscape pattern and reduce visual impact on this scenic region.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
