Neustadt an der Orla in Thuringia, Germany, offers a moderate location for solar energy generation, with significant seasonal variations in production capacity. Located in the Northern Temperate Zone, this site experiences notable differences in solar output throughout the year.

Seasonal Solar Production

Solar panels in Neustadt an der Orla produce their highest output during summer months, generating approximately 5.09kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.18kWh/day per kW. Production decreases substantially in autumn to 2.29kWh/day and reaches its lowest point in winter with only 1.04kWh/day per kW of installed capacity.

This pattern creates a roughly 5:1 ratio between the best and worst producing seasons, which is typical for locations in central Europe. The significant drop during winter months means that supplementary power sources would be necessary for year-round energy independence.

Optimal Panel Configuration

For fixed solar panel installations in Neustadt an der Orla, the ideal tilt angle to maximize year-round energy production is 43 degrees facing south. This angle represents the mathematically optimal position accounting for the location's latitude and seasonal sun paths, weighted by the actual solar potential throughout the year.

Environmental and Weather Considerations

Several factors may impact solar production at this Thuringian location:

• Winter snow accumulation can temporarily reduce output if panels become covered, requiring either manual clearing or steep installation angles
• Fog and low cloud cover, common in central German valleys during autumn and winter, can significantly reduce production beyond the already lower seasonal values
• Pollution from nearby industrial areas may gradually decrease panel efficiency through particulate buildup

To mitigate these challenges, installations should incorporate self-cleaning panel technologies, slightly steeper mounting angles than the mathematical optimum (perhaps 45-50 degrees) to facilitate snow sliding, and regular maintenance schedules. Additionally, microinverter or power optimizer technology can help minimize production losses when partial shading occurs.

Overall, Neustadt an der Orla represents a moderately favorable location for solar energy, with excellent summer and spring production that can offset the significantly reduced winter generation. A properly designed system would account for these seasonal variations by either incorporating storage solutions or grid connectivity.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

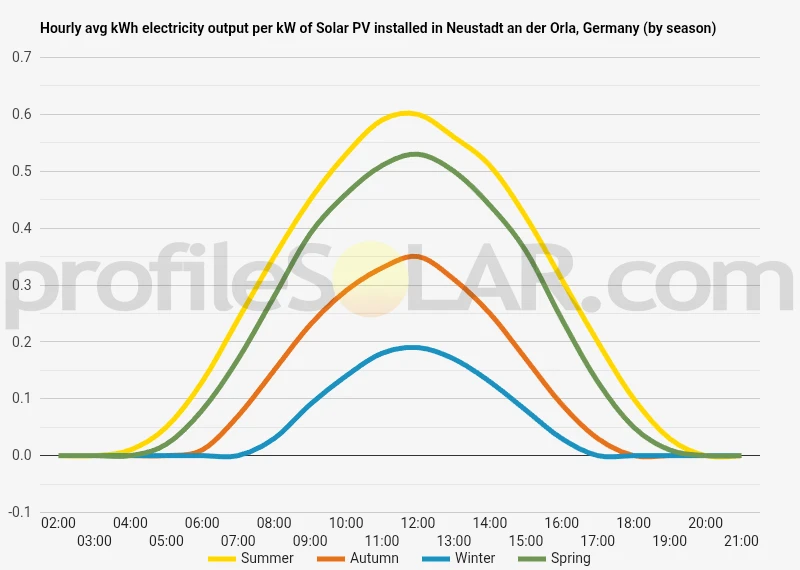

Solar output per kW of installed solar PV by season in Neustadt An Der Orla

Seasonal solar PV output for Latitude: 50.7342, Longitude: 11.7461 (Neustadt An Der Orla, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 43° South in Neustadt An Der Orla, Germany

To maximize your solar PV system's energy output in Neustadt An Der Orla, Germany (Lat/Long 50.7342, 11.7461) throughout the year, you should tilt your panels at an angle of 43° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Neustadt An Der Orla, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Neustadt An Der Orla, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 43° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	53° South in Autumn	64° South in Winter	43° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Neustadt An Der Orla, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Neustadt An Der Orla, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Neustadt An Der Orla, Germany

Neustadt an der Orla sits nestled in the eastern part of Thuringia, Germany, characterized by a varied topographical landscape that transitions between the gentle foothills of the Thuringian Forest and the Thuringian Highland (Thüringer Schiefergebirge). The town itself rests at approximately 300 meters above sea level in a shallow valley formed by the Orla River, a tributary of the Saale. The surrounding landscape features a pleasing mix of rolling hills, small plateaus, and shallow valleys. To the south and west, the terrain gradually rises toward the Thuringian Forest, creating a series of undulating slopes and ridges. These southern elevations reach heights of around 400-500 meters in the immediate vicinity, with more substantial rises further away. The northern and eastern approaches to Neustadt an der Orla are characterized by somewhat gentler terrain, with open valleys and modest hills that rarely exceed 350-400 meters in height.

Vegetation and Land Use

The region around Neustadt an der Orla exhibits a mosaic of land uses. Dense mixed forests cover many of the higher elevations, particularly to the south and southwest. These wooded areas, predominantly consisting of beech, oak, and spruce, give way to agricultural land on the gentler slopes and valley floors. Meadows and pastures are common in the river valleys, while arable farming dominates the flatter terrain, especially to the north and east of the town.

Potential for Solar PV Development

Several areas near Neustadt an der Orla present favorable conditions for large-scale solar photovoltaic installations. The most suitable locations would be: The gently sloping terrain to the northeast and east of Neustadt an der Orla offers some of the best potential sites. These areas feature relatively flat or slightly south-facing slopes with minimal shadowing from topographical features. The more open landscape here, with fewer dense forests, provides good exposure to solar radiation throughout the day. South-facing hillsides between Neustadt and neighboring communities like Triptis and Pößneck also present excellent opportunities. These moderate slopes receive favorable solar exposure and often consist of agricultural land that might be suitable for dual-use solar farming approaches. The plateaus northwest of the town, extending toward Gera, contain several promising locations where the relatively flat terrain combined with slightly elevated positions creates good conditions for solar arrays. These areas typically have fewer obstructions to block sunlight and offer reasonable accessibility for construction and maintenance. Former industrial or mining sites in the broader region could be repurposed for solar development. These brownfield locations often provide flat, already-disturbed land with existing infrastructure connections, making them ideal for solar conversion without impacting pristine landscapes.

Topographical Considerations

When evaluating specific sites for solar development near Neustadt an der Orla, several topographical factors warrant consideration. The moderate hill country means that careful site selection is necessary to avoid north-facing slopes, which would receive significantly reduced solar exposure. Valley bottoms, particularly those with narrow profiles running east-west, may experience more morning and evening shadowing from surrounding hills. The Orla River and its tributary streams create small valleys that generally run east-west through the region. While these valleys themselves may not be ideal for solar installations due to potential shadowing and flood risks, the gentle slopes rising from them often face advantageously toward the south. Water drainage patterns should also be considered, as the region's rolling topography creates numerous small watersheds. Sites with good natural drainage would minimize erosion concerns and reduce foundation maintenance issues for large-scale installations. The moderate elevation of the region means that fog formation in valley bottoms can occasionally reduce solar exposure, particularly during autumn and winter months. Solar developments would benefit from positions slightly elevated above the valley floors to minimize this effect.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
