Solar Energy Potential in Oberstdorf, Bavaria

Oberstdorf, a picturesque town in Bavaria, Germany, presents a mixed landscape for solar energy generation throughout the year. Located in the Northern Temperate Zone, this alpine destination experiences significant seasonal variations in solar output. Summer stands out as the most productive season, with an impressive 5.65 kWh per day for each kilowatt of installed solar capacity. This period offers extended daylight hours and generally clearer skies, making it ideal for solar energy harvesting. Spring follows as the second-most productive season, yielding 4.63 kWh per day. As temperatures rise and days lengthen, solar panels can capture substantial energy during this time. Autumn sees a noticeable decline in solar output, producing 3.10 kWh per day. The shorter days and increased cloud cover contribute to this reduction in energy generation. Winter presents the greatest challenge for solar energy production in Oberstdorf, with a modest 1.75 kWh per day. The combination of shorter days, lower sun angles, and potential snow cover significantly impacts solar efficiency during this season.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Oberstdorf, fixed solar panels should be tilted at an angle of 41 degrees facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental and Weather Considerations

Several factors can impact solar energy production in Oberstdorf: 1. Snow accumulation: The alpine location means significant snowfall in winter, which can cover panels and reduce efficiency. 2. Cloud cover: The region experiences frequent cloud cover, particularly in autumn and winter, affecting solar irradiance. 3. Fog: Valley fog is common in the mornings, potentially delaying the start of efficient solar generation. To mitigate these challenges, consider the following measures:

• Install panels at a steeper angle to encourage snow sliding off
• Use snow-shedding coatings on panels
• Implement a regular cleaning schedule, especially after snowfall
• Consider bifacial panels to capture reflected light from snow
• Use high-efficiency panels to maximize output during periods of reduced sunlight

While Oberstdorf's location presents some challenges for year-round solar energy production, proper planning and installation techniques can help maximize the potential of this renewable energy source in the region.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

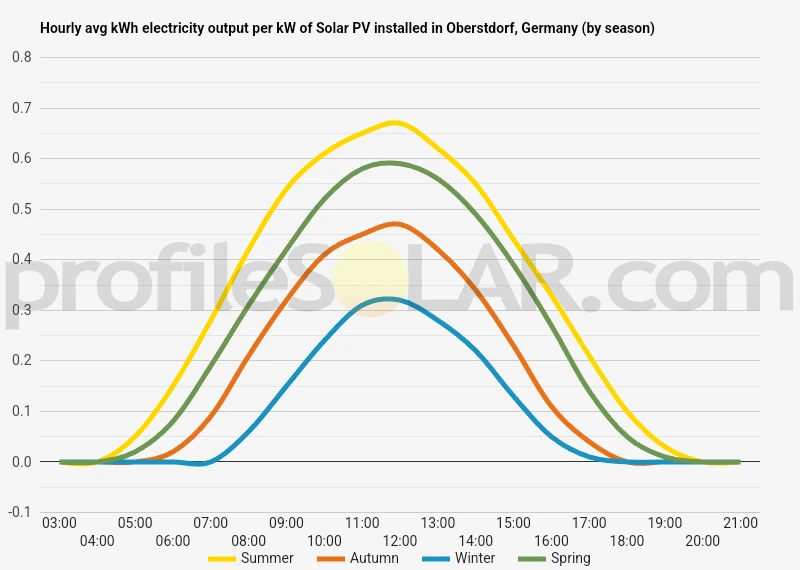

Solar output per kW of installed solar PV by season in Oberstdorf

Seasonal solar PV output for Latitude: 47.4016, Longitude: 10.2869 (Oberstdorf, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Oberstdorf, Germany

To maximize your solar PV system's energy output in Oberstdorf, Germany (Lat/Long 47.4016, 10.2869) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Oberstdorf, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Oberstdorf, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Oberstdorf, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Oberstdorf, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Oberstdorf, Germany

Oberstdorf, located in southern Germany, is nestled within a picturesque alpine landscape. The town sits in a valley surrounded by impressive mountains, which are part of the Allgäu Alps. The topography of the area is characterized by dramatic elevation changes, with the town itself situated at an altitude of about 800 meters (2,600 feet) above sea level.

The surrounding terrain features steep, forested slopes that rise sharply from the valley floor. These mountains reach heights of over 2,000 meters (6,500 feet), with the nearby Nebelhorn peak standing at 2,224 meters (7,297 feet). The area also includes numerous smaller valleys, high meadows, and rocky outcrops typical of alpine regions.

Several streams and rivers flow through the valleys, including the Trettach, Stillach, and Breitach, which converge in Oberstdorf to form the Iller River. These waterways have carved the landscape over millennia, creating deep gorges and contributing to the area's rugged beauty.

Regarding large-scale solar PV (photovoltaic) installations, the mountainous terrain around Oberstdorf presents significant challenges. The steep slopes, dense forests, and limited flat areas make it difficult to find suitable locations for expansive solar farms. Additionally, the high mountains can cast long shadows, potentially reducing the amount of sunlight available to solar panels in certain areas.

However, some nearby areas might be more suitable for solar PV projects:

1. The wider Iller Valley to the north of Oberstdorf, where the terrain becomes gradually less mountainous, could offer more open spaces and gentler slopes.
2. South-facing slopes of lower hills in the region, particularly those with less forest cover, might be potential sites for smaller-scale solar installations.
3. Areas around nearby towns like Sonthofen or Immenstadt im Allgäu, where the landscape opens up more, could potentially accommodate larger solar projects.
4. Repurposed industrial or agricultural lands in the broader region might offer flat, open spaces more suitable for solar farms.

It's important to note that any large-scale solar PV project in this region would need to carefully consider environmental impacts, local regulations, and the area's strong focus on tourism and natural beauty. Smaller, distributed solar installations on existing structures might be a more feasible approach in this particular alpine setting.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
