Solar PV Analysis of Ravensburg, Germany
Ravensburg, Germany, situated at a latitude of 47.7832 and longitude of 9.6215, is a favorable location for the installation and operation of solar photovoltaic (PV) systems due to its considerable seasonal solar energy yield. Over the course of the year, each kilowatt (kW) of installed solar capacity produces an average daily output that varies by season: 5.71 kilowatt-hours (kWh) in summer, 2.99 kWh in autumn, 1.52 kWh in winter, and 4.85 kWh in spring.
The elevated summer production can be attributed to longer daylight hours and increased sun intensity typical for this Northern Temperate Zone location during these months. However, it's important to note that while winter months result in lower yields due to shorter days and lower sun angles; there is still a respectable output considering these conditions.
For optimal results from fixed panel installations at this particular location, panels should ideally be tilted at an angle of approximately 41 degrees facing southward which aligns with the path the sun follows across the sky throughout most parts of the year.
However certain local factors could potentially impede solar production efficiency here; Ravensburg’s weather patterns can pose challenges as periods with heavy rain or snowfall may reduce sunlight penetration especially during winter months when such weather phenomena are more prevalent.
To mitigate such effects on energy production levels from your PV system installation; it would be beneficial to incorporate mechanisms for removing excess snow or water off your panels as quickly as possible - whether manually or through some automated system - so as to maintain their exposure to sunlight whenever available regardless of seasonality or weather conditions present.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

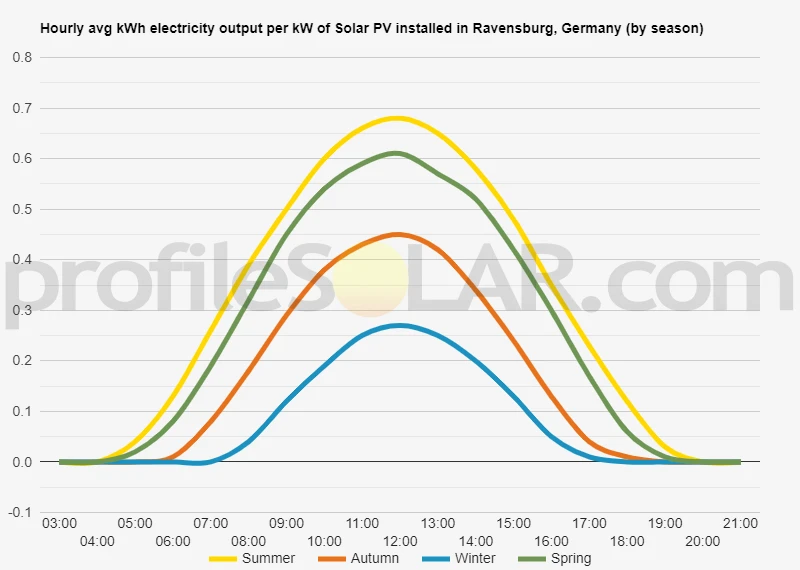

Solar output per kW of installed solar PV by season in Ravensburg
Seasonal solar PV output for Latitude: 47.7832, Longitude: 9.6215 (Ravensburg, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Ravensburg, Germany
To maximize your solar PV system's energy output in Ravensburg, Germany (Lat/Long 47.7832, 9.6215) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Ravensburg, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ravensburg, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 31° South in Summer | 51° South in Autumn | 61° South in Winter | 40° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Ravensburg, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ravensburg, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Ravensburg, Germany
The topography around Ravensburg, Germany is generally flat with some rolling hills. Areas to the south and west of the city would be most suited to large-scale solar PV due to the abundance of open space and clear skies in these directions. Additionally, these areas are not heavily populated so there would be minimal interference from other structures or activities.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
