Schwabach, Bavaria, Germany presents a moderately suitable location for solar photovoltaic energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate.

Seasonal Solar Energy Production

The solar energy output at Schwabach varies dramatically throughout the year. Summer delivers the highest production at 5.59 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 4.38 kWh per day per kW, offering excellent solar conditions as daylight hours increase and weather improves. Autumn sees a notable decline to 2.54 kWh per day per kW as the region transitions toward winter conditions. Winter presents the most challenging period for solar generation, producing only 1.23 kWh per day per kW of installed capacity - less than a quarter of summer output.

Optimal Installation Configuration

For maximum year-round solar energy production at this location, fixed solar panels should be tilted at 42 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying elevation throughout the year and weighting for actual solar irradiance potential.

Environmental and Weather Challenges

Several local factors in Schwabach can significantly impact solar energy production and require careful consideration during installation:

• Snow accumulation: Winter snow can completely block solar panels, eliminating energy production during critical low-light periods
• Heavy cloud cover: Bavaria experiences frequent overcast conditions, particularly during autumn and winter months
• Fog and atmospheric moisture: Morning fog common in German river valleys can reduce solar irradiance
• Tree shading: Deciduous trees may cause seasonal shading issues, while evergreens create year-round shadows

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Steep panel angles: The recommended 42-degree tilt helps snow slide off naturally rather than accumulating
• Strategic positioning: Install panels away from tall trees, buildings, or other structures that cast shadows, especially during low winter sun angles
• Quality mounting systems: Use robust mounting that can handle snow loads while maintaining optimal panel positioning
• Regular maintenance access: Design installations allowing safe snow removal and cleaning when necessary

Anti-reflective coatings on panels can help capture available light during overcast conditions, while micro-inverters or power optimizers can minimize the impact when individual panels are partially shaded or snow-covered. Overall, while Schwabach's location presents seasonal challenges typical of Central European climates, proper installation techniques and realistic expectations can still yield worthwhile solar energy production, particularly during the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

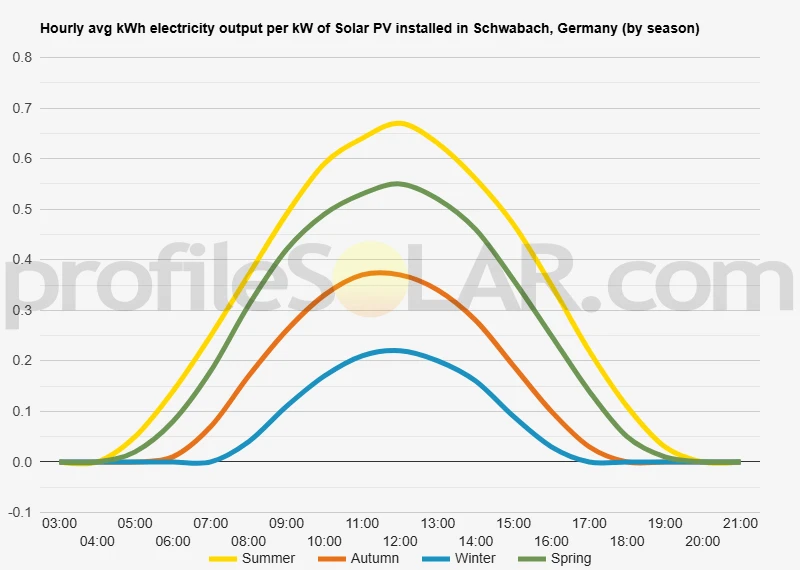

Solar output per kW of installed solar PV by season in Schwabach

Seasonal solar PV output for Latitude: 49.3257, Longitude: 11.0262 (Schwabach, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Schwabach, Germany

To maximize your solar PV system's energy output in Schwabach, Germany (Lat/Long 49.3257, 11.0262) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Schwabach, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Schwabach, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Schwabach, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Schwabach, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Schwabach, Germany

Topography Around Schwabach

Schwabach sits in the gently rolling landscape of Middle Franconia in Bavaria, positioned within the broader Franconian Basin. The terrain around this historic town is characterized by relatively modest elevation changes, with the settlement itself located at approximately 340 meters above sea level. The surrounding countryside features a mix of low hills, shallow valleys, and flat agricultural plains that are typical of this part of southern Germany. The landscape gradually rises to the southeast toward the foothills of the Franconian Jura, where limestone formations create more pronounced topographical features. To the north and west, the terrain becomes increasingly flat as it transitions into the fertile plains of the Rednitz and Pegnitz river valleys. These waterways have carved gentle depressions through the landscape over millennia, creating a patchwork of slightly elevated plateaus and shallow valley floors. The region's geology consists primarily of sandstone and clay deposits from the Triassic period, overlain with fertile loess soils in many areas. This geological foundation contributes to the generally stable, gently undulating terrain that characterizes much of the Nuremberg metropolitan area, of which Schwabach forms a part.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations around Schwabach would be the flat to gently sloping agricultural areas that extend northward and westward from the town. These areas offer several advantages for solar development, including minimal grading requirements, excellent accessibility for construction and maintenance equipment, and generally unobstructed southern exposures. The plateau areas between Schwabach and Nuremberg present particularly attractive opportunities, as they combine favorable topography with proximity to existing electrical infrastructure. These elevated flat areas typically experience fewer issues with fog and atmospheric moisture that can sometimes affect lower-lying valley locations during certain seasons. Agricultural fields on the gentle south-facing slopes throughout the region would also be well-suited for solar installations, as these naturally oriented surfaces can maximize energy capture without requiring significant earthwork or specialized mounting systems. The stable soil conditions in these areas, derived from the underlying sandstone geology, provide excellent foundations for solar array support structures. Areas to the southeast, where the terrain begins to rise more steeply toward the Jura foothills, would be less ideal for large-scale development due to increased grading costs and potential shading issues from the more pronounced topographical features. Similarly, the immediate river valley floors, while flat, may present challenges related to seasonal moisture and potential flooding considerations that could complicate large solar installations.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
