Solar PV Analysis of Sigmaringen, Germany
Sigmaringen, located in Baden-Wurttemberg, Germany, offers a moderate potential for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.
Seasonal Solar Performance
Summer proves to be the most productive season for solar energy in Sigmaringen, with an average daily output of 5.59 kWh per kW of installed capacity. Spring follows closely behind, generating 4.56 kWh/day. Autumn sees a considerable drop in production, with 2.81 kWh/day, while winter experiences the lowest output at 1.37 kWh/day.
The substantial difference between summer and winter production highlights the region's pronounced seasonal variations. This pattern suggests that solar energy systems in Sigmaringen will be most effective from late spring through early autumn, with peak performance during the summer months.
Optimal Panel Installation
For fixed-panel installations in Sigmaringen, the ideal tilt angle to maximize year-round solar production is 41 degrees facing south. This angle is calculated based on the location's latitude and solar elevation angles throughout the year, taking into account the Earth's elliptical orbit and local solar irradiance data.
Environmental and Weather Considerations
While Sigmaringen's location is generally favorable for solar energy production, there are some environmental factors that could impact system performance:
- Cloud cover: The region experiences significant cloud cover, particularly during autumn and winter, which can reduce solar output.
- Snow accumulation: Winter snowfall may temporarily decrease panel efficiency if not promptly removed.
To mitigate these challenges, consider implementing the following measures:
1. Use high-efficiency panels that perform well in low-light conditions to maximize energy production during cloudy periods.
2. Install panels at a steeper angle than the optimal 41 degrees to promote snow sliding off and reduce accumulation.
3. Implement a regular maintenance schedule to clear snow and debris from panels, especially during winter months.
4. Consider using a dual-axis tracking system to maximize solar exposure throughout the year, although this may increase initial costs.
By addressing these factors and optimizing panel installation, solar PV systems in Sigmaringen can achieve improved year-round performance despite seasonal variations and local weather patterns.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Germany by location

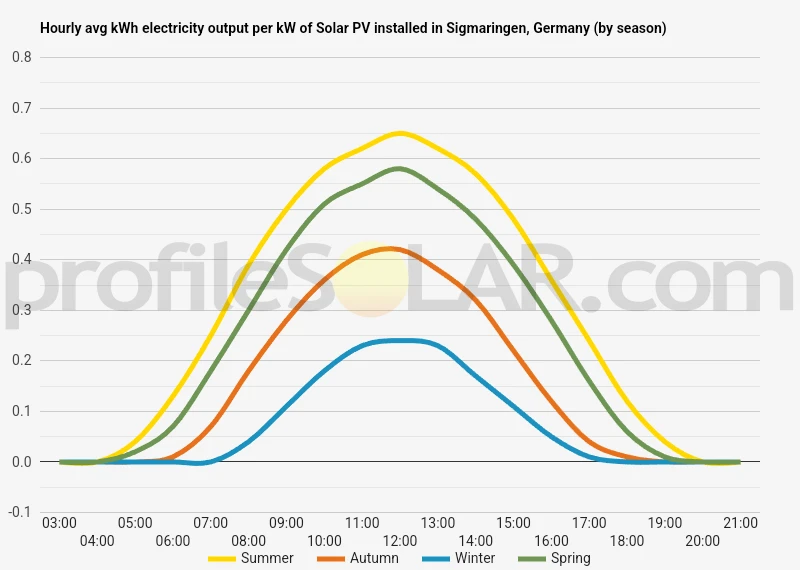

Solar output per kW of installed solar PV by season in Sigmaringen
Seasonal solar PV output for Latitude: 48.0872, Longitude: 9.2275 (Sigmaringen, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Sigmaringen, Germany
To maximize your solar PV system's energy output in Sigmaringen, Germany (Lat/Long 48.0872, 9.2275) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Sigmaringen, Germany
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sigmaringen, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 31° South in Summer | 51° South in Autumn | 61° South in Winter | 40° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Sigmaringen, Germany
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sigmaringen, Germany.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Sigmaringen, Germany
The area around Sigmaringen, Germany, is characterized by a diverse and picturesque landscape typical of the southwestern German region known as the Swabian Alb. The topography is a mix of rolling hills, river valleys, and forested areas, creating a scenic and varied terrain.
The town of Sigmaringen itself is nestled in the Danube Valley, with the Danube River flowing through it. The valley floor is relatively flat, providing a stark contrast to the surrounding elevated areas. As you move away from the river, the landscape becomes more undulating, with gentle slopes gradually rising to form higher hills and plateaus.
To the south and east of Sigmaringen, the terrain becomes more pronounced, with steeper hillsides and deeper valleys. This area is part of the Swabian Alb, a low mountain range known for its distinctive karst topography. The Alb features limestone formations, caves, and rugged outcrops that add to the region's geological interest.
For large-scale solar PV installations, the most suitable areas nearby would likely be found on the open, gently sloping hillsides and plateaus surrounding Sigmaringen. These locations offer several advantages for solar energy production:
- South-facing slopes: Many of the hillsides in the region have a southern exposure, which is ideal for maximizing solar energy capture throughout the day.
- Elevated positions: The higher areas around Sigmaringen often experience less fog and cloud cover than the valley floor, potentially increasing the amount of sunlight reaching solar panels.
- Open spaces: The agricultural lands and meadows on the plateaus provide ample space for large solar arrays without significant obstruction from trees or buildings.
- Minimal shadowing: The gently rolling nature of much of the terrain means that one hillside is less likely to cast shadows on adjacent areas, allowing for more efficient use of available land.
However, it's important to note that the exact suitability of any specific site would depend on a variety of factors, including local zoning laws, environmental considerations, and proximity to electrical infrastructure. Additionally, care would need to be taken to balance solar energy development with the preservation of the region's natural beauty and agricultural heritage.
Germany solar PV Stats as a country
Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Germany?
Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.
Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
