Sulzbach-Rosenberg, a town in Bavaria, Germany, presents a moderate potential for solar energy generation throughout the year. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar output.

Seasonal Solar Production

Summer stands out as the most productive season, with an average daily output of 5.57 kWh per kW of installed solar capacity. Spring follows closely, generating 4.38 kWh/day. Autumn sees a considerable drop to 2.52 kWh/day, while winter experiences the lowest production at 1.21 kWh/day.

The substantial difference between summer and winter production highlights the impact of shorter days and less direct sunlight during colder months. However, the relatively strong performance in spring and summer makes solar installation still worthwhile in this location.

Optimal Panel Installation

To maximize year-round solar energy production in Sulzbach-Rosenberg, fixed solar panels should be tilted at a 42-degree angle facing south. This angle optimizes the panels' exposure to sunlight throughout the year, considering the town's latitude and seasonal sun positions.

Environmental and Weather Factors

While Sulzbach-Rosenberg doesn't face extreme environmental challenges for solar production, there are some factors to consider:

• Snow accumulation in winter can temporarily reduce panel efficiency
• Occasional cloudy days, particularly in autumn and winter, may impact production

To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off and use high-efficiency panels that perform well in low-light conditions. Regular maintenance, including snow removal when necessary, can help maintain optimal performance.

In conclusion, while Sulzbach-Rosenberg may not be ideal for year-round solar production due to significant seasonal variations, it still offers good potential, especially from spring through autumn. With proper installation and maintenance, solar PV systems can provide a valuable contribution to the area's renewable energy mix.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

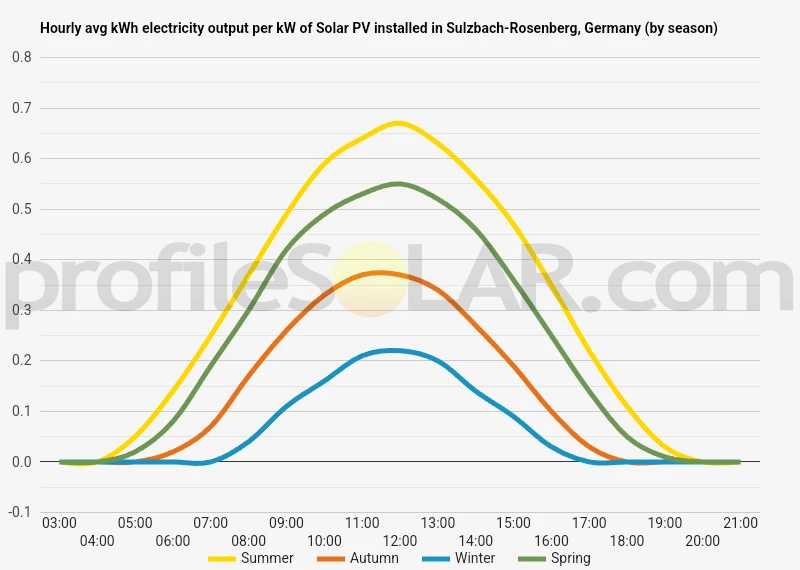

Solar output per kW of installed solar PV by season in Sulzbach-Rosenberg

Seasonal solar PV output for Latitude: 49.5019, Longitude: 11.7387 (Sulzbach-Rosenberg, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Sulzbach-Rosenberg, Germany

To maximize your solar PV system's energy output in Sulzbach-Rosenberg, Germany (Lat/Long 49.5019, 11.7387) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sulzbach-Rosenberg, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sulzbach-Rosenberg, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	62° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sulzbach-Rosenberg, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sulzbach-Rosenberg, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sulzbach-Rosenberg, Germany

The area surrounding Sulzbach-Rosenberg, Germany, is characterized by a diverse and picturesque landscape typical of the Upper Palatinate region. The town itself is nestled in a valley, with gently rolling hills and low mountains forming the backdrop. The terrain gradually rises as you move away from the town center, creating a mix of elevations that contribute to the area's scenic beauty. To the west and southwest of Sulzbach-Rosenberg, the landscape becomes more rugged, with the foothills of the Franconian Jura mountains beginning to emerge. These hills are often covered in dense forests, primarily consisting of mixed deciduous and coniferous trees. The eastern side of the town, in contrast, features more open spaces with a combination of agricultural fields and meadows interspersed with patches of woodland.

Potential for Solar PV Installation

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be relatively flat or gently sloping areas with good exposure to sunlight throughout the day. Based on the topography around Sulzbach-Rosenberg, the most promising areas for solar farms would likely be found to the east and southeast of the town. These areas tend to have more open, agricultural land with fewer obstructions from forests or steep terrain. The gently rolling hills in this direction provide a good balance between flat land (which is easier and more cost-effective for installation) and slight slopes that can be oriented towards the south for optimal sun exposure. It's important to note that while the eastern areas may be topographically suitable, any large-scale solar PV project would need to carefully consider other factors such as land use, environmental impact, and local regulations. The agricultural nature of much of this land means that there could be competing interests between energy production and food cultivation, which would need to be balanced carefully. Areas to the west and southwest, while scenic, are generally less suitable for large-scale solar installations due to the more forested and hilly terrain. These features can create shading issues and make construction more challenging and expensive. In conclusion, the varied topography around Sulzbach-Rosenberg offers a mix of landscapes, from valley floors to forested hills. For solar PV development, the flatter, more open areas to the east and southeast present the most promising opportunities, balancing favorable terrain with good solar exposure.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
