Tettnang, located in Baden-Wurttemberg, Germany, offers a moderate potential for solar energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

The solar energy production in Tettnang fluctuates considerably across the four seasons. Summer stands out as the most productive period, with an average daily output of 5.66 kWh per kW of installed solar capacity. Spring follows closely, yielding 4.79 kWh/day. Autumn sees a notable decrease to 2.92 kWh/day, while winter experiences the lowest output at 1.46 kWh/day.

These figures indicate that solar PV systems in Tettnang are most effective from late spring through early autumn. During this period, longer daylight hours and higher sun angles contribute to increased energy production. However, the significant drop in winter output suggests that alternative or supplementary energy sources may be necessary during the colder months.

Optimal Panel Installation

To maximize year-round solar energy production in Tettnang, fixed solar panels should be installed at a tilt angle of 41 degrees facing south. This angle has been calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Considerations

While Tettnang's climate is generally favorable for solar energy production, there are some factors that could potentially impact system performance:

• Cloud cover: The region experiences frequent cloudy days, especially in winter, which can reduce solar irradiance.
• Snow accumulation: Winter snowfall may temporarily cover panels, reducing efficiency.

To mitigate these issues, consider implementing the following measures:

• Use high-efficiency panels designed to perform well in low-light conditions.
• Install panels at a steeper angle to promote snow sliding off.
• Implement a regular cleaning and maintenance schedule to ensure optimal performance.

In conclusion, while Tettnang's location presents some challenges for year-round solar energy production, particularly in winter, it still offers considerable potential for renewable energy generation. With proper system design and maintenance, solar PV can be a viable and sustainable energy option for this German town.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

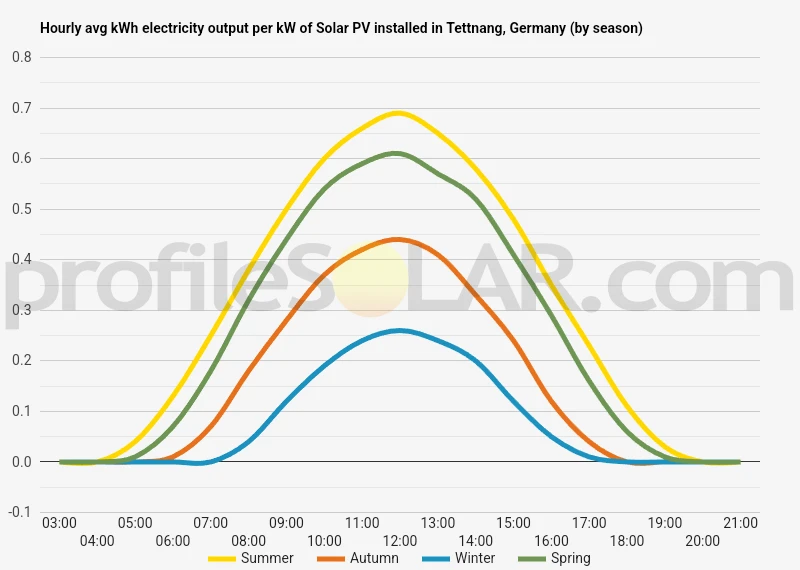

Solar output per kW of installed solar PV by season in Tettnang

Seasonal solar PV output for Latitude: 47.6702, Longitude: 9.595 (Tettnang, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Tettnang, Germany

To maximize your solar PV system's energy output in Tettnang, Germany (Lat/Long 47.6702, 9.595) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tettnang, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tettnang, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tettnang, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tettnang, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tettnang, Germany

The area around Tettnang, Germany, situated at 47.6702°N latitude and 9.595°E longitude, is characterized by a diverse and picturesque topography. This region, located in the southern part of Baden-Württemberg, is part of the broader Lake Constance area and showcases a blend of rolling hills, gentle slopes, and flat plains. The landscape surrounding Tettnang is primarily shaped by glacial activity from the last ice age. As a result, the terrain features a mix of undulating hills and valleys, interspersed with small streams and rivers. The elevation in this area generally ranges from about 400 to 600 meters above sea level, with some higher points reaching up to 700 meters. To the south of Tettnang, the land gradually descends towards Lake Constance (Bodensee), creating a series of terraced slopes that offer panoramic views of the lake and the distant Alps. These south-facing slopes are often covered with orchards and vineyards, taking advantage of the favorable microclimate and ample sunlight.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine favorable topography, ample sunlight exposure, and minimal environmental impact. The gently sloping areas to the north and northeast of Tettnang present promising potential for solar PV development. These locations offer a good balance of open space and suitable gradients, allowing for efficient panel placement without excessive land modification. The slightly elevated terrain in these areas also helps to minimize shading from surrounding landscape features. Another promising area for solar PV installations lies in the flatter agricultural lands to the west and northwest of Tettnang. These expanses of open fields provide ample space for large-scale solar farms, with minimal topographical obstacles. The relatively flat terrain in this direction would simplify construction and maintenance of solar arrays. It's important to note that while the south-facing slopes near Lake Constance receive abundant sunlight, they may not be ideal for large-scale solar installations due to their agricultural significance and scenic value. Additionally, the steeper gradients in some of these areas could pose challenges for panel installation and maintenance. Any large-scale solar PV project in the region would need to carefully balance energy production goals with environmental conservation and land use considerations. Proper site selection would involve detailed assessments of solar irradiance, land availability, grid connectivity, and potential impacts on local ecosystems and communities.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
