Todtmoos, a town in Baden-Württemberg, Germany, offers varying potential for solar energy production throughout the year. This location in the Northern Temperate Zone experiences significant seasonal fluctuations in solar energy output.

Seasonal Solar Production

Solar panels in Todtmoos produce energy at different rates across the four seasons. Summer is the most productive period, generating an average of 5.69 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.83 kWh daily output. Autumn sees a significant drop to 2.95 kWh per day, while winter production falls dramatically to just 1.39 kWh daily per installed kilowatt.

The substantial difference between summer and winter production (over 4 kWh per day) highlights the seasonal variability at this location. The most ideal periods for solar generation are from late spring through early autumn (approximately May through September), when the sun's position is higher in the sky and days are longer.

Optimal Panel Installation

For fixed solar panel installations in Todtmoos, the ideal tilt angle to maximize year-round energy production is 41 degrees facing South. This angle has been calculated by analyzing the daily solar elevation at this latitude, weighted by the potential daily production throughout the year.

Environmental and Weather Considerations

Several factors can impact solar production at this Black Forest location:

• Snow accumulation in winter can significantly reduce output by covering panels, particularly problematic given winter's already low production rates
• Fog and cloud cover are common in the Black Forest region, especially during autumn and winter months
• Potential shading from surrounding tall trees, given Todtmoos' forested mountainous setting

Preventative Measures

To maximize production despite these challenges, consider these installation approaches:

• Install panels at a steeper angle than the optimal 41 degrees if winter production is particularly important, as this helps snow slide off more easily
• Implement regular panel cleaning schedules, especially after snowfall
• Consider micro-inverters or power optimizers to minimize the impact of partial shading from trees or buildings
• Conduct a thorough shade analysis before installation to identify potential obstructions throughout different seasons and times of day
• If possible, install additional capacity to compensate for the low winter production periods

With proper planning and installation techniques, solar energy can still be a viable option in Todtmoos, though seasonal variations should be expected and accounted for in system design.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

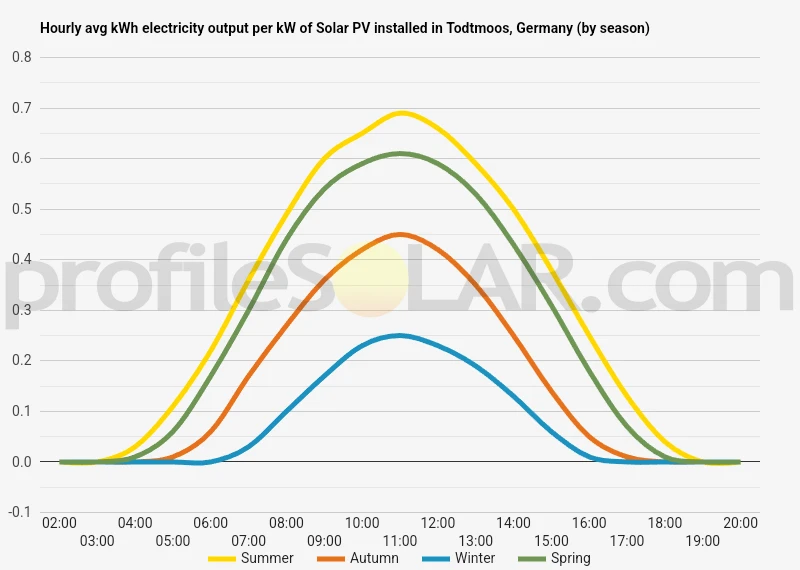

Solar output per kW of installed solar PV by season in Todtmoos

Seasonal solar PV output for Latitude: 47.7437, Longitude: 7.9992 (Todtmoos, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Todtmoos, Germany

To maximize your solar PV system's energy output in Todtmoos, Germany (Lat/Long 47.7437, 7.9992) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Todtmoos, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Todtmoos, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	51° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Todtmoos, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Todtmoos, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Todtmoos, Germany

Todtmoos lies nestled in the southern Black Forest region of Germany, characterized by a distinctive mountainous topography. The landscape surrounding this small town features rolling hills, steep valleys, and dense forest coverage typical of the Black Forest highlands. Situated at an elevation of approximately 800 meters above sea level, Todtmoos is cradled within a valley formation with surrounding peaks reaching heights of over 1,000 meters. The terrain around Todtmoos presents a varied relief pattern. To the north and east, the landscape rises into higher elevations of the central Black Forest, with notable peaks like Feldberg (the highest in the Black Forest) located within reasonable proximity. The valleys in this region typically follow a northeast to southwest orientation, carved by small rivers and streams over millennia. These waterways have created distinctive V-shaped valleys throughout the area.

Surrounding Landscape Features

The immediate vicinity of Todtmoos is characterized by moderately steep slopes covered with coniferous forest. These slopes generally face various directions due to the complex valley systems, creating a mosaic of differently oriented hillsides. The southern approaches to Todtmoos feature somewhat gentler gradients that descend toward the Rhine Valley in the distance. Forest cover dominates the landscape, with spruce and fir trees being particularly common. Occasional clearings exist, primarily associated with agricultural activities, settlements, or managed forest operations. These open spaces interrupt the otherwise continuous forest canopy that blankets the hills.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, several areas near Todtmoos merit consideration based on topographical factors. The most suitable locations would be south-facing slopes with minimal forest cover, as these receive optimal solar radiation in the northern hemisphere. The gentler slopes south of Todtmoos descending toward the Rhine Valley represent potentially viable locations. These areas benefit from favorable orientation and less extreme terrain compared to the steeper northern sections. Some agricultural plateaus and cleared areas on these southern exposures could accommodate larger installations with minimal terrain modification. Several elevated plateaus within 10-15 kilometers of Todtmoos also present possibilities. These higher-elevation flat areas occasionally emerge from the otherwise undulating landscape, particularly in areas where forest management has created substantial clearings. The broader Rhine Valley region, beginning approximately 20 kilometers southwest of Todtmoos, offers the most promising conditions for large-scale solar development. This area features significantly flatter terrain, more extensive open spaces, and favorable solar exposure conditions compared to the immediate mountainous surroundings of Todtmoos. The topographical constraints around Todtmoos itself—including steep slopes, fragmented terrain, and extensive forest coverage—generally limit opportunities for very large contiguous solar installations directly adjacent to the town. Medium-sized installations on suitable slopes or in existing clearings represent more feasible approaches within the immediate vicinity.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
