Traunreut, Bavaria, Germany shows moderate solar energy potential with significant seasonal variation typical of its Northern Temperate Zone location. The solar output data reveals a clear pattern of energy generation that makes this location reasonably suitable for solar PV installations, though not among the most ideal globally.

Seasonal Solar Performance

Summer represents the peak solar generation period at Traunreut, producing 5.75kWh per day per kW of installed capacity. This strong summer performance makes it the optimal time for solar energy production at this location. Spring follows as the second-best season with 4.29kWh per day per kW, offering good solar generation as daylight hours increase and the sun's angle becomes more favorable. Autumn shows a notable decline in solar output at 3.02kWh per day per kW, reflecting the shorter days and lower sun angles typical of this season. Winter presents the most challenging period for solar generation, producing only 1.72kWh per day per kW of installed capacity, which is expected given Bavaria's northern latitude and winter weather patterns.

Optimal Installation Configuration

For maximum year-round solar production at Traunreut, fixed solar panels should be tilted at 41 degrees facing south. This angle is calculated to optimize total annual energy output by accounting for the sun's varying elevation throughout the year and weighting these angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors at this Bavarian location can significantly impact solar energy generation:

• Snow accumulation during winter months can block solar panels and dramatically reduce output
• Frequent cloud cover and overcast conditions, particularly common in Bavaria's climate
• Fog formation, especially during autumn and winter months
• Heavy rainfall that can create temporary shading and reduce light transmission

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these local challenges, several installation strategies should be considered. Installing panels at the recommended 41-degree tilt angle not only optimizes sun exposure but also helps snow slide off more easily, reducing winter blockages. Ensuring adequate spacing between panel rows prevents shading and allows for better air circulation, which can help clear moisture and light snow. Regular maintenance becomes particularly important in this climate, including periodic cleaning to remove accumulated dirt, leaves, or light snow that could obstruct panels. Consider installing micro-inverters or power optimizers rather than string inverters, as these can minimize the impact when individual panels are partially shaded by clouds or weather conditions. This technology ensures that shading on one panel doesn't significantly reduce the output of the entire array.

Overall Assessment

While Traunreut's location presents some challenges for solar energy generation, particularly during winter months, the strong summer and spring performance makes it a viable location for solar PV installations. The key to success lies in proper system design, optimal panel positioning, and proactive maintenance to address the local environmental factors that can impact performance.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

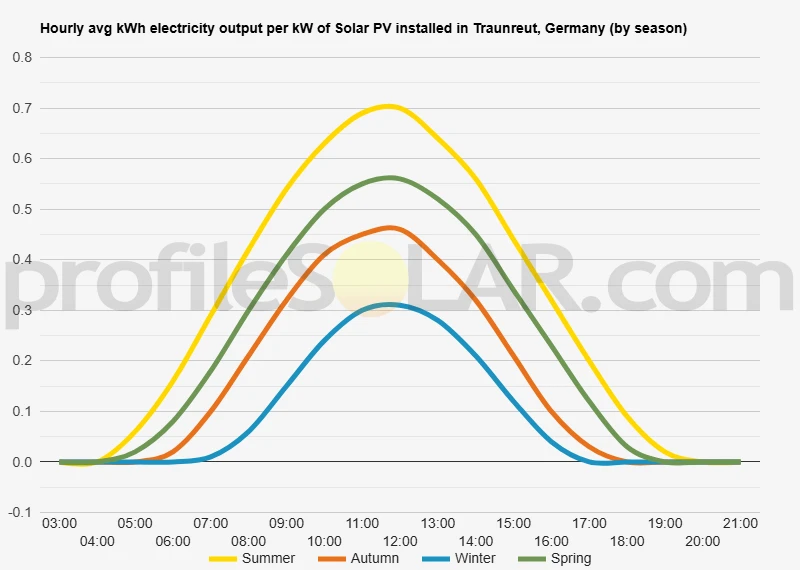

Solar output per kW of installed solar PV by season in Traunreut

Seasonal solar PV output for Latitude: 47.9609, Longitude: 12.5961 (Traunreut, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Traunreut, Germany

To maximize your solar PV system's energy output in Traunreut, Germany (Lat/Long 47.9609, 12.5961) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Traunreut, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Traunreut, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	51° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Traunreut, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Traunreut, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Traunreut, Germany

Topographical Features of the Traunreut Region

Traunreut sits in the southeastern corner of Bavaria, nestled within the rolling landscape of the Chiemgau region. The town occupies a position on relatively flat terrain at approximately 520 meters above sea level, positioned between the dramatic Alpine foothills to the south and the gentler undulations of the Bavarian plateau extending northward. This location places it in a transitional zone where the intense mountainous topography begins to give way to more moderate elevations.

The immediate surroundings of Traunreut are characterized by a patchwork of agricultural fields, scattered woodlands, and small settlements typical of rural Bavaria. The terrain exhibits gentle slopes and modest elevation changes, making it part of the broader Alpine foreland that was shaped by glacial activity during past ice ages. Small streams and drainage channels weave through the landscape, creating subtle valleys and ridges that add texture to what might otherwise appear as relatively uniform countryside.

To the south and southeast, the landscape becomes progressively more dramatic as the Bavarian Alps rise toward the Austrian border. The Chiemgau Alps form an impressive backdrop, with peaks reaching well over 1,500 meters in elevation. These mountains create a natural barrier that influences local weather patterns and provides a striking visual contrast to the gentler terrain around Traunreut itself.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations in the Traunreut vicinity would be the expansive agricultural areas stretching northward and westward from the town center. These zones offer the dual advantages of relatively flat terrain and fewer topographical obstacles that might create shading issues. The gentle slopes in these areas, when properly oriented, could actually enhance solar collection efficiency by providing natural south-facing inclinations.

The agricultural plains extending toward the northwest, in the direction of the larger Bavarian plateau, present particularly attractive conditions for solar development. This terrain is characterized by broad, open fields with minimal tree coverage and few significant elevation changes that would complicate installation or create shadow problems during different seasons. The existing field boundaries and rural road network would facilitate access for construction and maintenance activities.

Areas immediately adjacent to existing infrastructure corridors, such as the railway lines and major roadways that serve the region, would offer additional advantages for large-scale solar projects. These locations typically have established utility connections and transportation access while often utilizing land that has already been modified from its natural state. The relatively flat terrain along these corridors would minimize grading requirements and reduce installation costs.

The eastern approaches to Traunreut, where the land begins its gradual transition toward the Inn River valley, also present favorable conditions. This area combines the benefits of gentle topography with good exposure characteristics, while remaining sufficiently distant from the more mountainous terrain to the south that could create seasonal shading concerns. The agricultural character of this landscape means that large contiguous areas could potentially be developed without significant topographical constraints.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
