Waldshut-Tiengen, located in Baden-Württemberg, Germany, offers a moderately favorable location for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone, this area experiences distinct seasonal variations in solar energy production.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 5.66 kWh per kW of installed solar capacity. Spring follows closely, generating 4.79 kWh/day. Autumn sees a noticeable decrease in production, yielding 2.92 kWh/day. Winter, as expected, presents the greatest challenge with only 1.46 kWh/day.

The substantial difference between summer and winter production highlights the importance of efficient system design to maximize year-round energy generation. While summer months offer abundant sunlight, the significant drop in winter output necessitates careful planning to ensure adequate energy supply during colder months.

Optimal Panel Installation

For fixed panel installations in Waldshut-Tiengen, the ideal tilt angle to maximize year-round solar production is 41 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental Considerations

While Waldshut-Tiengen's location is generally suitable for solar energy production, there are some environmental factors to consider:

• Snow accumulation in winter can temporarily reduce panel efficiency. Installing panels at the recommended 41-degree angle helps snow slide off more easily.
• The region's proximity to the Black Forest may lead to increased cloud cover and occasional fog, particularly in autumn and winter. Using high-efficiency panels can help mitigate the impact of reduced sunlight during these periods.

To enhance solar production in this location, consider implementing a few preventative measures. Regular panel cleaning, especially after snowfall, can maintain optimal efficiency. Additionally, using micro-inverters or power optimizers can help manage partial shading issues that may arise due to cloud cover or nearby obstacles.

In conclusion, while Waldshut-Tiengen faces challenges during winter months, its overall solar potential remains promising. With proper system design and maintenance, solar PV can be a viable and sustainable energy source for this German town throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

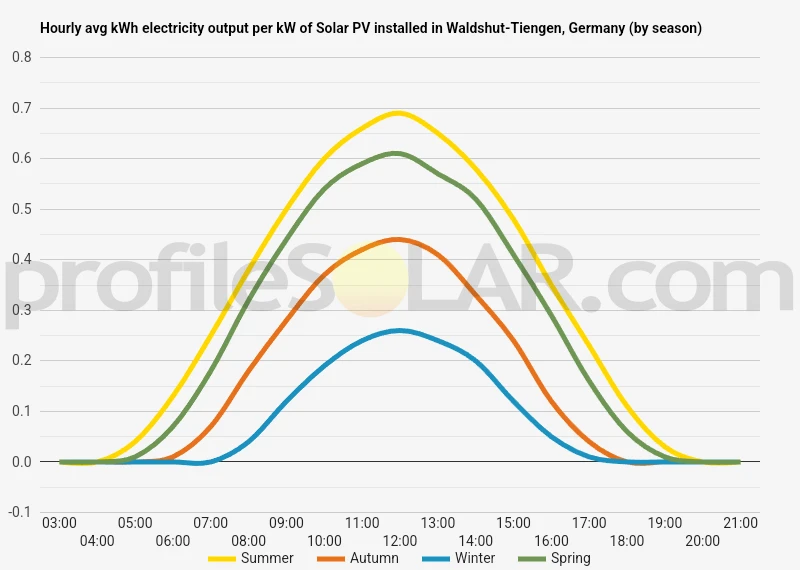

Solar output per kW of installed solar PV by season in Waldshut-Tiengen

Seasonal solar PV output for Latitude: 47.6195, Longitude: 8.2146 (Waldshut-Tiengen, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Waldshut-Tiengen, Germany

To maximize your solar PV system's energy output in Waldshut-Tiengen, Germany (Lat/Long 47.6195, 8.2146) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Waldshut-Tiengen, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Waldshut-Tiengen, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
31° South in Summer	50° South in Autumn	61° South in Winter	40° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Waldshut-Tiengen, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Waldshut-Tiengen, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Waldshut-Tiengen, Germany

The area surrounding Waldshut-Tiengen, Germany, is characterized by diverse and picturesque topography. Located in the southwestern part of the country, near the Swiss border, this region is part of the Black Forest mountain range. The landscape is a mix of rolling hills, steep valleys, and dense forests, creating a scenic and varied terrain. To the north of Waldshut-Tiengen, the land rises into the southern slopes of the Black Forest, with elevations increasing gradually. These hills are often covered in thick coniferous forests, giving the area its distinctive dark appearance. The terrain becomes more rugged and mountainous as you move further north into the heart of the Black Forest. To the south, the topography is dominated by the Rhine River valley. The Rhine flows westward along the German-Swiss border, creating a wide, flat floodplain. This area is more open and less forested than the northern hills, with gentler slopes and broader expanses of agricultural land.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, the flatter regions to the south of Waldshut-Tiengen offer the most promise. The Rhine valley, with its open spaces and less dramatic topography, provides several advantages for solar energy development: Firstly, the relatively flat terrain of the Rhine valley makes it easier and more cost-effective to install large arrays of solar panels. These areas require less land preparation and are more accessible for construction and maintenance vehicles. Secondly, the southern exposure of the gentle slopes leading down to the Rhine provides ideal conditions for maximizing solar energy capture. These south-facing areas receive more direct sunlight throughout the day, increasing the efficiency of solar panels. Lastly, the agricultural lands in the Rhine valley that are less productive or lying fallow could be repurposed for solar farms, creating a dual-use scenario that benefits both energy production and land conservation. It's important to note that while the hilly areas to the north may receive good sunlight, the challenges of installation on steeper slopes and the potential environmental impact on the forested regions make them less suitable for large-scale solar projects. However, smaller, distributed solar installations might still be feasible in these areas, particularly on south-facing hillsides or in clearings.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
