The location of Wernau, Baden-Württemberg, Germany, situated in the Northern Temperate Zone, presents a moderate opportunity for solar energy generation throughout the year. While not ideal, this location can still benefit from solar PV installations with proper planning and optimization.

Seasonal Solar Energy Production

Solar energy production in Wernau varies significantly across seasons. Summer offers the highest output at 5.59 kWh per day for each kW of installed solar capacity. Spring follows with 4.56 kWh/day, making these two seasons the most productive for solar energy generation. Autumn sees a considerable decrease in production, with 2.81 kWh/day. Winter experiences the lowest output at 1.37 kWh/day, presenting challenges for consistent year-round energy generation.

Optimal Panel Tilt

For fixed panel installations in Wernau, the ideal tilt angle to maximize year-round solar production is 41 degrees facing South. This angle helps optimize energy capture across all seasons, balancing the higher sun angles in summer with the lower angles in winter.

Environmental and Weather Factors

Several factors can impact solar production in Wernau: 1. Cloud cover: The region experiences significant cloud cover, particularly in autumn and winter, which can reduce solar output. 2. Snow: Winter snowfall can temporarily cover panels, reducing efficiency. 3. Air pollution: Being in an industrialized area, air pollution might slightly reduce solar irradiance reaching the panels. To mitigate these factors, consider the following preventative measures:

• Install panels at the optimal 41-degree tilt to help shed snow and maximize year-round production.
• Use self-cleaning panels or implement a regular cleaning schedule to remove dust and pollutants.
• Consider a tracking system to increase energy capture, especially during the less productive months.
• Use high-efficiency panels to maximize output in all conditions.

While Wernau's location presents some challenges for solar energy production, particularly in winter, it still offers good potential for solar PV installations. With proper planning and mitigation strategies, solar energy can be a viable and beneficial renewable energy source in this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 919 locations across Germany. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Germany by location

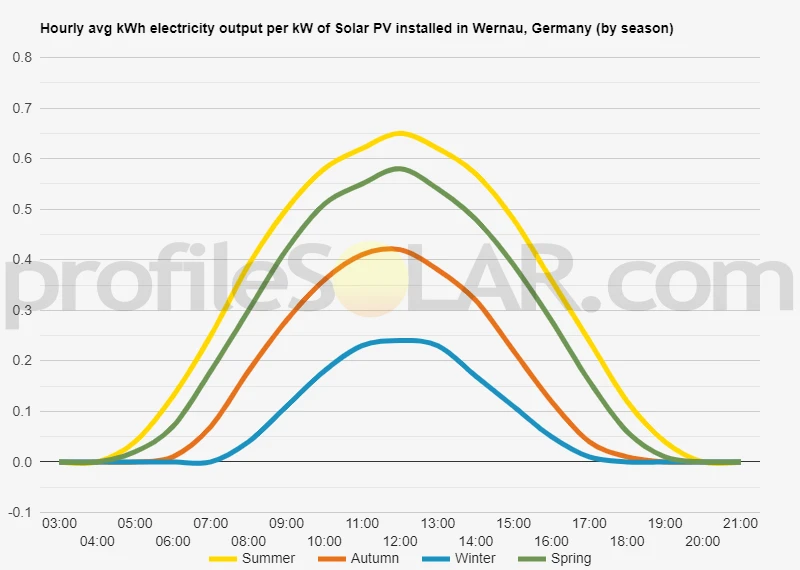

Solar output per kW of installed solar PV by season in Wernau

Seasonal solar PV output for Latitude: 48.6953, Longitude: 9.4137 (Wernau, Germany), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Wernau, Germany

To maximize your solar PV system's energy output in Wernau, Germany (Lat/Long 48.6953, 9.4137) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wernau, Germany

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wernau, Germany. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wernau, Germany

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wernau, Germany.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wernau, Germany

The topography around Wernau, Germany, is characterized by a diverse landscape that combines rolling hills, gentle valleys, and flat plains. Situated in the southwestern part of the country, Wernau lies in the state of Baden-Württemberg, nestled within the picturesque Neckar Valley. The town itself is located on the banks of the Neckar River, which has shaped the surrounding terrain over millennia. To the north and east of Wernau, the land gradually rises into the foothills of the Swabian Alb, a low mountain range known for its distinctive limestone formations. These hills create a scenic backdrop to the town and offer panoramic views of the surrounding countryside. The slopes of these hills are often covered with a mix of forests and agricultural land, creating a patchwork of green hues that change with the seasons. To the south and west, the landscape becomes more open and flat, with expansive agricultural fields and meadows stretching towards the horizon. This area is part of the fertile Filder plain, known for its rich soil and productive farmland. The transition between the hilly regions and the flatter areas creates a varied topography that is typical of this part of Germany.

Areas Suitable for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Wernau, several factors come into play, including available space, sunlight exposure, and minimal environmental impact. The most suitable areas for such projects would likely be found in the flatter regions to the south and west of Wernau. The open agricultural lands of the Filder plain offer significant potential for solar PV development. These areas benefit from relatively flat terrain, which simplifies installation and reduces costs associated with land preparation. The expansive fields also provide ample space for large arrays of solar panels without the need for extensive land clearing or habitat disruption. Additionally, some of the gently sloping hillsides to the north and east of Wernau could be considered for solar PV installations, particularly those facing south. These locations may offer good sun exposure throughout the day, maximizing energy production. However, care would need to be taken to balance energy generation with preservation of the scenic landscape and existing agricultural or forestry uses. It's important to note that any large-scale solar PV project would require careful planning and consultation with local authorities, landowners, and environmental experts to ensure it aligns with regional development plans and environmental regulations. The goal would be to harness renewable energy while maintaining the natural beauty and ecological balance of the area surrounding Wernau.

Germany solar PV Stats as a country

Germany ranks 4th in the world for cumulative solar PV capacity, with 58,461 total MW's of solar PV installed. This means that 9.70% of Germany's total energy as a country comes from solar PV (that's 3rd in the world). Each year Germany is generating 702 Watts from solar PV per capita (Germany ranks 3rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Germany?

Yes, there are a few incentives for businesses wanting to install solar energy in Germany. These include feed-in tariffs, which guarantee businesses a price per kilowatt hour of electricity produced from their solar system; tax incentives such as the reduction of corporate income taxes; and subsidies from regional governments or utilities. Additionally, Germany's Renewable Energy Sources Act (EEG) provides additional support for projects that involve renewable energies.

Do you have more up to date information than this on incentives towards solar PV projects in Germany? Please reach out to us and help us keep this information current. Thanks!
