Fanling, Hong Kong, situated in the tropics, presents a promising location for solar energy generation throughout the year. With its consistent sunlight and distinct wet and dry seasons, this area offers favorable conditions for solar PV installations.

Seasonal Solar Performance

The solar energy output in Fanling demonstrates a relatively stable pattern across the seasons. Summer yields the highest production at 5.49 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.40 kWh/day, while autumn generates 4.95 kWh/day. Winter, though slightly lower, still maintains a respectable output of 4.40 kWh/day. This consistent performance throughout the year makes Fanling an ideal location for solar energy harvesting. The minimal fluctuation between seasons ensures a reliable power supply, reducing the need for significant energy storage solutions.

Optimal Installation Angle

For fixed panel installations in Fanling, the ideal tilt angle to maximize year-round solar production is 21 degrees facing South. This angle has been calculated considering the location's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data.

Environmental Considerations

While Fanling's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Typhoons: Hong Kong experiences typhoons, which can potentially damage solar installations. 2. High humidity: The region's humidity levels may affect panel efficiency and longevity. To mitigate these risks, it's crucial to use high-quality, weather-resistant solar panels and mounting systems designed to withstand strong winds. Regular maintenance and cleaning are also essential to combat the effects of humidity and ensure optimal performance.

Conclusion

Overall, Fanling, Hong Kong, presents an excellent opportunity for solar PV installations. Its consistent year-round sunlight and relatively stable seasonal output make it an ideal location for solar energy generation. By addressing the potential environmental challenges through proper installation techniques and maintenance, solar power can be a reliable and efficient energy source in this tropical setting.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

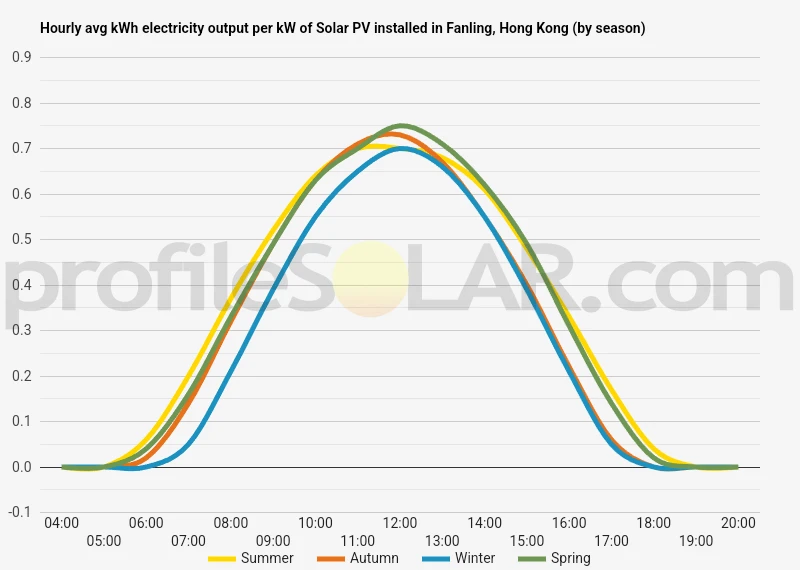

Solar output per kW of installed solar PV by season in Fanling

Seasonal solar PV output for Latitude: 22.4974, Longitude: 114.1348 (Fanling, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° South in Fanling, Hong Kong

To maximize your solar PV system's energy output in Fanling, Hong Kong (Lat/Long 22.4974, 114.1348) throughout the year, you should tilt your panels at an angle of 21° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Fanling, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Fanling, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	28° South in Autumn	38° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Fanling, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Fanling, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Fanling, Hong Kong

Fanling, located in the northern part of Hong Kong's New Territories, is characterized by a diverse topography that includes both flat lowlands and hilly areas. The town itself is situated in a relatively flat basin, surrounded by higher terrain on multiple sides.

To the north and northeast of Fanling, the land gradually rises into the hills that form part of the border region between Hong Kong and mainland China. These hills, while not extremely high, provide a noticeable contrast to the flatter areas around the town center. To the west and southwest, the terrain is generally flatter, with some gentle slopes and low-lying areas that have historically been used for agriculture.

The southern and southeastern parts of Fanling transition into more rugged terrain, with steeper hills and small valleys. This area forms part of the larger system of hills and mountains that make up much of Hong Kong's New Territories.

In terms of large-scale solar PV installations, the most suitable areas near Fanling would likely be the flatter regions to the west and southwest of the town. These areas offer several advantages for solar energy development:

1. They have less shading from hills and mountains, allowing for more consistent sunlight throughout the day.
2. The relatively flat terrain makes construction and maintenance of solar arrays easier and more cost-effective.
3. Some of these areas may include former agricultural land that is no longer in active use, potentially providing large, open spaces for solar installations.

However, it's important to note that Hong Kong faces significant land constraints, and any large-scale solar development would need to carefully balance energy production goals with other land use priorities, including housing, conservation, and agriculture. Additionally, the region's subtropical climate, with its high humidity and occasional typhoons, would need to be taken into account when designing and implementing solar PV systems.
