Solar Energy Potential in Fo Tan, Sha Tin, Hong Kong

Fo Tan, Sha Tin, located in Hong Kong at coordinates 22.4017, 114.1835, presents a promising location for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns across seasons, though with some seasonal variations. The solar energy production potential shows good year-round performance. Summer months yield the highest energy output at 5.52 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.40 kWh/day, while autumn produces 4.91 kWh/day. Winter, though less productive, still generates a respectable 4.35 kWh/day per kilowatt installed. For fixed solar panel installations in Fo Tan, Sha Tin, the ideal tilt angle is 20 degrees facing South. This specific angle maximizes year-round energy production by optimizing the capture of available sunlight throughout the seasons.

Seasonal Considerations

The most productive periods for solar generation in Fo Tan are summer and spring, making these ideal seasons for maximizing solar energy production. The difference between the highest-producing season (summer) and lowest-producing season (winter) is relatively modest at just over 1 kWh per day, indicating good year-round consistency. This consistency is advantageous compared to locations at higher latitudes where winter production can drop dramatically. The tropical location of Fo Tan means solar panels can generate meaningful amounts of electricity throughout the entire year.

Environmental and Weather Challenges

Several environmental factors may impact solar production in Fo Tan:

• Typhoons and heavy monsoon rains can temporarily reduce solar output and potentially damage installations if not properly secured
• High humidity levels can accelerate degradation of components if not properly rated for tropical conditions
• Urban air pollution and haze, common in the greater Hong Kong area, can reduce solar irradiance reaching panels
• Seasonal cloud cover during the wet season can temporarily diminish energy production

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended: Install typhoon-resistant mounting systems with reinforced frames and foundations that meet local building codes for high wind conditions. Choose high-quality PV modules with appropriate IP ratings for humidity resistance and salt corrosion protection, particularly important given Hong Kong's coastal proximity. Regular cleaning schedules are essential to remove pollution deposits and bird droppings that can significantly reduce panel efficiency. Installing panels at the recommended 20-degree tilt also helps with natural cleaning during rainfall. Additionally, using microinverters or power optimizers can minimize production losses when parts of the array are shaded or soiled, a common occurrence in urban environments like Fo Tan. With these considerations addressed, Fo Tan represents a viable location for solar PV installation with good year-round energy production potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

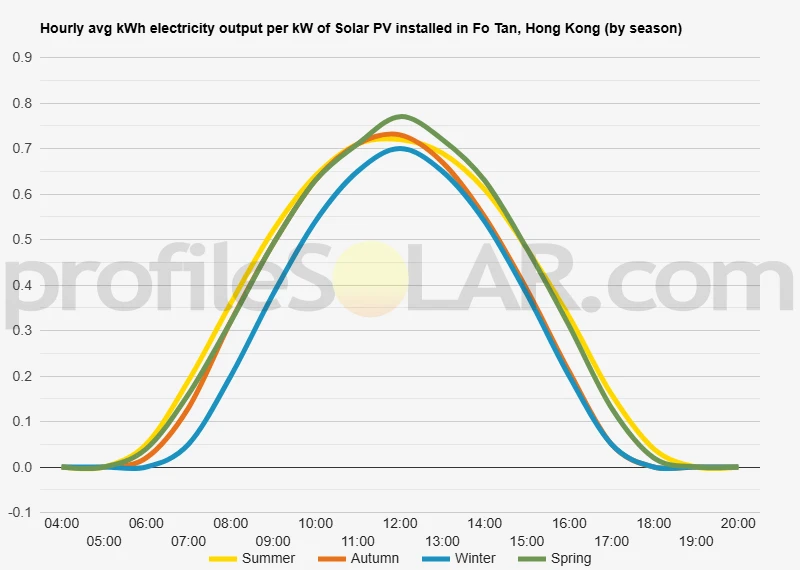

Solar output per kW of installed solar PV by season in Fo Tan

Seasonal solar PV output for Latitude: 22.4017, Longitude: 114.1835 (Fo Tan, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Fo Tan, Hong Kong

To maximize your solar PV system's energy output in Fo Tan, Hong Kong (Lat/Long 22.4017, 114.1835) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Fo Tan, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Fo Tan, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	37° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Fo Tan, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Fo Tan, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Fo Tan, Hong Kong

Fo Tan is situated in the northeastern part of Hong Kong's New Territories, nestled within the Sha Tin District. The topography surrounding Fo Tan is characterized by a distinctive mix of flat valley areas and steep mountainous terrain, creating a basin-like setting that has influenced both its development and potential for renewable energy projects.

Valley and Mountain Setting

Fo Tan lies within the Sha Tin Valley, which is flanked by mountains on multiple sides. To the north rises Tai Mo Shan, Hong Kong's highest peak at 957 meters, while the Lion Rock and Ma On Shan ranges define the western and eastern boundaries respectively. This valley formation was historically a shallow bay that was reclaimed and developed in the latter part of the 20th century, resulting in the relatively flat central areas where most urban development has occurred. The immediate vicinity of Fo Tan features considerable elevation changes, with the valley floor sitting just a few meters above sea level while the surrounding hillsides rise steeply to several hundred meters. This dramatic topographical contrast creates distinct microclimates and varying levels of solar exposure throughout the region.

Waterways and Drainage

The Shing Mun River, a channelized waterway, runs through the Sha Tin Valley near Fo Tan, flowing southward into Tolo Harbour. This waterway represents the lowest elevation point in the area and has historically served as the main drainage channel for the surrounding mountains. Several smaller streams and drainage channels descend from the mountains to join the river, creating natural divisions in the landscape.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic installations near Fo Tan, several areas present more favorable conditions than others: The industrial district of Fo Tan itself offers significant rooftop potential across its numerous factory buildings and warehouses. These flat, unshaded rooftops represent already-developed land that could be repurposed for solar energy without additional environmental impact. The relatively flat reclaimed land throughout the Sha Tin Valley provides stable ground conditions suitable for solar installations, though much of this area is already densely developed for residential and commercial purposes. South-facing hillsides surrounding the valley receive more direct sunlight throughout the year in the Northern Hemisphere. Particularly promising are the lower slopes of Tai Mo Shan to the north and northwest of Fo Tan, which face southward and receive consistent sun exposure while being somewhat protected from the strongest typhoon winds.

Topographical Challenges

The mountainous terrain surrounding Fo Tan presents several challenges for large-scale solar development. The steep slopes make construction difficult and expensive, while also creating potential landslide risks during Hong Kong's intense summer rainstorms. Additionally, many hillsides are part of country parks or protected green spaces, limiting development possibilities. The valley location also means that certain areas experience significant shadowing from the surrounding mountains, particularly during winter months when the sun's angle is lower. This effect is most pronounced on north-facing slopes and areas close to the base of steep mountains.

Reclaimed Land Considerations

Much of the flat land in the Sha Tin area, including portions near Fo Tan, consists of relatively recent land reclamation projects. These areas offer stable, level ground ideal for construction but may experience soil settlement over time. Any large-scale solar installation would need appropriate engineering to account for these ground conditions. The proximity to water bodies, including the Shing Mun River and Tolo Harbour, also introduces considerations related to flooding risk and potential reflective enhancement of solar radiation from water surfaces. In conclusion, the topography around Fo Tan presents a mix of opportunities and challenges for solar PV development, with the most promising areas being existing industrial rooftops, south-facing hillside terraces, and carefully selected portions of the valley floor that remain undeveloped or could be repurposed.
