The New Territories in Hong Kong, located at 22.4316° N, 114.1025° E, offers a promising environment for solar energy generation throughout the year. Situated in the tropics, this location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Performance

Solar panel performance in the New Territories varies slightly across the year:

• Summer: 5.49 kWh/day per kW installed
• Spring: 5.40 kWh/day per kW installed
• Autumn: 4.95 kWh/day per kW installed
• Winter: 4.40 kWh/day per kW installed

These figures indicate that solar energy production remains relatively stable throughout the year, with summer and spring being the most productive seasons.

Optimal Panel Positioning

For fixed panel installations in the New Territories, the ideal tilt angle to maximize year-round solar production is 21 degrees facing South. This angle has been calculated considering daily solar elevation angles, optimal panel tilt, and weighted by daily photovoltaic potential using NASA's solar irradiance data.

Environmental Considerations

While the New Territories generally provides favorable conditions for solar energy production, there are some environmental factors to consider:

• Typhoons: Hong Kong experiences typhoons, which can potentially damage solar installations. Robust mounting systems and high-quality, wind-resistant panels are crucial.
• Air pollution: The region sometimes experiences high levels of air pollution, which can reduce solar panel efficiency. Regular cleaning and maintenance can help mitigate this issue.

To address these challenges, it's recommended to use typhoon-resistant mounting systems, high-quality panels with strong glass, and implement a regular cleaning schedule. Additionally, considering micro-inverters or power optimizers can help maintain overall system performance even if some panels are affected by shading or debris.

Overall, the New Territories in Hong Kong presents a favorable location for year-round solar energy production, with only minor seasonal variations and manageable environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

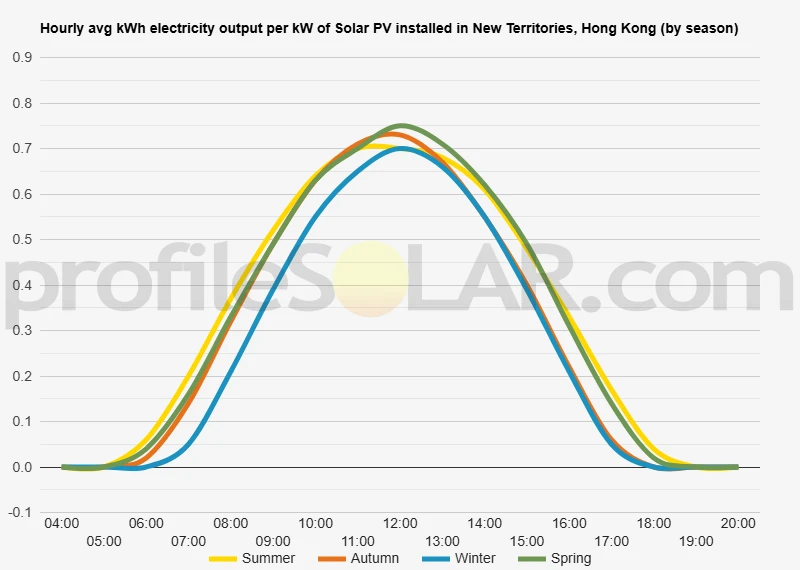

Solar output per kW of installed solar PV by season in New Territories

Seasonal solar PV output for Latitude: 22.4316, Longitude: 114.1025 (New Territories, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° South in New Territories, Hong Kong

To maximize your solar PV system's energy output in New Territories, Hong Kong (Lat/Long 22.4316, 114.1025) throughout the year, you should tilt your panels at an angle of 21° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for New Territories, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Territories, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	38° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in New Territories, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Territories, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around New Territories, Hong Kong

The New Territories region of Hong Kong, located at approximately 22.4316°N and 114.1025°E, features a diverse and complex topography. This area is characterized by a mix of mountainous terrain, rolling hills, and lowland plains, creating a varied landscape that transitions from urban centers to more rural and natural environments. In the northern part of the New Territories, the terrain is dominated by rugged mountains and steep hillsides. These mountains, part of the larger mountain ranges that stretch across much of Hong Kong, create a dramatic backdrop to the region. The highest peaks in this area reach elevations of over 500 meters, with some summits approaching 1,000 meters above sea level. These mountainous areas are often covered in dense vegetation, including both natural forests and managed woodlands. As one moves towards the central and southern parts of the New Territories, the landscape gradually becomes less steep. Here, you'll find a combination of gentler hills and flat lowlands. These areas have been more extensively developed for human habitation and agriculture. The lowland plains, in particular, have been historically important for farming and are now home to many of the region's new towns and urban developments. Interspersed throughout the New Territories are numerous valleys and river systems. These waterways have carved out scenic gorges and created fertile alluvial plains that have long been used for agriculture. The region also features several reservoirs, which not only provide water for the population but also contribute to the area's scenic beauty.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would offer ample sunlight exposure, relatively flat terrain, and minimal environmental impact. The lowland areas in the central and southern parts of the New Territories present the most promising opportunities for large-scale solar PV projects. These areas offer more expansive, flat surfaces that could accommodate large arrays of solar panels. Additionally, many of these areas are already developed or semi-developed, which could minimize further environmental disruption. Specific locations that might be suitable include former agricultural lands that are no longer in active use, as well as the rooftops of large industrial buildings and warehouses in the region's industrial parks. These sites often have the advantage of existing infrastructure, including road access and proximity to power grids. It's worth noting that while the mountainous areas receive good sunlight, their steep slopes and often protected status make them less suitable for large-scale solar installations. However, smaller-scale projects might be feasible on some of the less steep hillsides, particularly those that have already been cleared of dense vegetation. Coastal areas in the New Territories, particularly reclaimed land or areas near the coast that are not ecologically sensitive, could also be considered for solar PV projects. These locations often benefit from unobstructed sunlight and could potentially incorporate innovative designs such as floating solar panels. In all cases, any large-scale solar PV project in the New Territories would need to carefully balance energy production goals with environmental conservation, land use regulations, and the needs of local communities. The unique topography of the region presents both challenges and opportunities for renewable energy development.
