Sham Shui Po, located in Hong Kong, presents a favorable environment for solar energy generation throughout the year. Situated in the tropics, this location benefits from consistent sunlight and experiences wet and dry seasons rather than the traditional four seasons.

The solar energy potential in Sham Shui Po is relatively stable across the year, with some seasonal variations. Summer proves to be the most productive season, yielding an average of 5.49 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind with 5.40 kWh/day, while autumn generates 4.95 kWh/day. Winter, although less productive, still maintains a respectable output of 4.40 kWh/day.

Optimal Solar Panel Installation

To maximize year-round solar energy production in Sham Shui Po, fixed solar panels should be tilted at a 20-degree angle facing south. This optimal angle has been calculated considering the location's latitude, daily solar elevation angles, and potential PV output throughout the year.

Environmental and Weather Factors

While Sham Shui Po's tropical climate is generally conducive to solar energy production, there are some environmental factors to consider:

1. Typhoons: Hong Kong experiences typhoons, which could potentially damage solar installations if not properly secured.
2. Air pollution: The urban environment of Hong Kong can lead to increased air pollution, which may slightly reduce solar panel efficiency.

To mitigate these factors, solar installations should include robust mounting systems designed to withstand high winds. Regular cleaning of panels can help maintain efficiency in the face of air pollution. Additionally, using high-quality, durable panels rated for coastal environments can ensure longevity and optimal performance.

Despite these considerations, Sham Shui Po remains an ideal location for solar energy production. Its consistent sunlight throughout the year, coupled with relatively high daily energy outputs across all seasons, makes it a prime candidate for successful solar PV installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

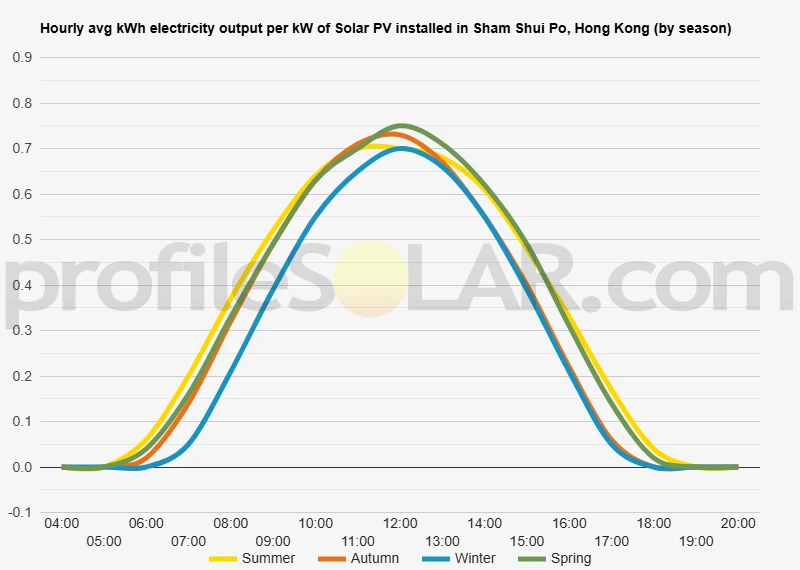

Solar output per kW of installed solar PV by season in Sham Shui Po

Seasonal solar PV output for Latitude: 22.3361, Longitude: 114.1698 (Sham Shui Po, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Sham Shui Po, Hong Kong

To maximize your solar PV system's energy output in Sham Shui Po, Hong Kong (Lat/Long 22.3361, 114.1698) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sham Shui Po, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sham Shui Po, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	37° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sham Shui Po, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sham Shui Po, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sham Shui Po, Hong Kong

Sham Shui Po, located in the northwestern part of Kowloon in Hong Kong, is characterized by a densely populated urban landscape with a relatively flat topography. The area is situated on reclaimed land near the coast of Victoria Harbour, with an average elevation close to sea level. The surrounding terrain is predominantly low-lying, with some gentle slopes rising towards the north and east. To the north of Sham Shui Po, the land gradually inclines towards the Kowloon Hills, which form a natural barrier between the urban areas of Kowloon and the New Territories. These hills, while not particularly high, provide a stark contrast to the flat urban expanse below. The eastern edge of Sham Shui Po borders the slightly more elevated areas of Cheung Sha Wan and Lai Chi Kok.

Potential for Solar PV Installation

When considering areas nearby that might be suitable for large-scale solar PV installations, several factors come into play. Given the dense urban nature of Sham Shui Po and its immediate surroundings, finding expansive open areas for ground-mounted solar farms is challenging. However, there are potential opportunities for solar energy development in the region. The vast number of flat rooftops on high-rise buildings in Sham Shui Po and neighboring districts could be utilized for distributed solar PV systems. While not technically "large-scale," the cumulative effect of many rooftop installations could be significant. For larger installations, the nearby container terminals and port facilities in Kwai Chung and Tsing Yi, located to the west of Sham Shui Po, offer potential. These areas have large, unobstructed roof spaces on warehouses and terminal buildings that could accommodate substantial solar arrays. The hillsides to the north, while not ideal due to their slopes and vegetation, might have some suitable areas for solar installations, particularly on south-facing slopes. However, environmental and land-use concerns would need to be carefully addressed. Lastly, the option of floating solar PV systems on nearby water bodies, such as the Shing Mun River to the north or even parts of Victoria Harbour, could be explored. While technically challenging, these areas offer the advantage of not competing for scarce land resources in the densely populated region. It's important to note that any large-scale solar PV project in this area would need to overcome significant challenges related to land scarcity, urban density, and potential shading from tall buildings. Innovative approaches and careful planning would be essential to maximize the solar energy potential in this highly urbanized environment.
