Tai Wai, Yuen Long District, Hong Kong, situated at latitude 22.4531 and longitude 114.032, offers a favorable location for solar energy generation throughout the year. This tropical climate, characterized by consistent sunlight and wet-dry seasonal patterns, provides a solid foundation for solar PV installations.

Seasonal Solar Performance

The solar energy output in Tai Wai demonstrates a relatively stable pattern across seasons. Summer sees the highest production at 5.52 kWh per day for each kW of installed capacity, closely followed by spring at 5.40 kWh/day. Autumn maintains a respectable 4.91 kWh/day, while winter experiences a slight dip to 4.35 kWh/day. This consistency allows for reliable energy generation year-round, with peak performance during the longer, sunnier days of summer and spring.

Optimal Panel Positioning

For fixed solar panel installations in Tai Wai, Yuen Long District, the ideal tilt angle to maximize year-round production is 20 degrees facing south. This angle has been calculated to capture the most sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Tai Wai's climate is generally conducive to solar energy production, there are some environmental factors to consider:

• Typhoons: Hong Kong experiences typhoons, which can potentially damage solar installations if not properly secured.
• Air pollution: Urban air pollution in the greater Hong Kong area may occasionally reduce solar efficiency.

To mitigate these challenges, solar installations should incorporate sturdy mounting systems designed to withstand high winds. Regular cleaning of panels can help maintain efficiency in the face of air pollution. Additionally, using high-quality, durable panels resistant to salt corrosion is advisable due to the coastal proximity.

Overall, Tai Wai presents an excellent opportunity for solar PV installations, with consistent year-round production and only minor environmental challenges that can be effectively managed with proper planning and maintenance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

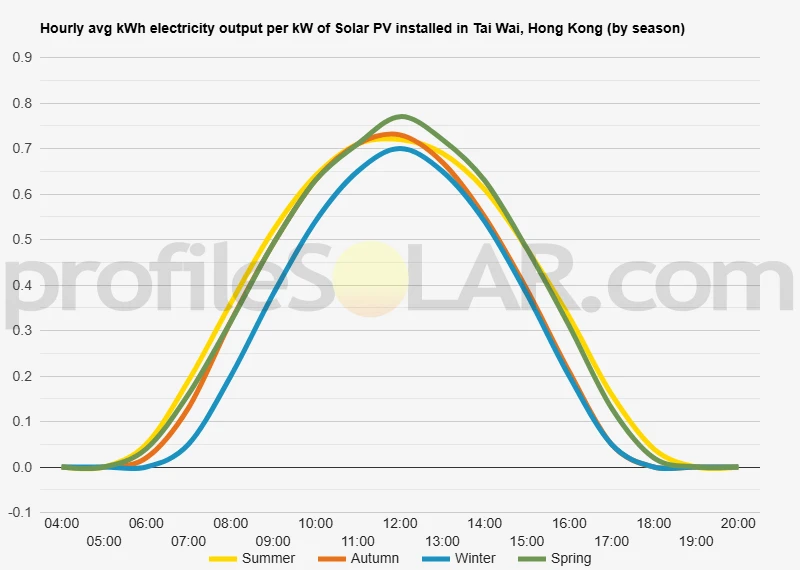

Solar output per kW of installed solar PV by season in Tai Wai

Seasonal solar PV output for Latitude: 22.4531, Longitude: 114.032 (Tai Wai, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Tai Wai, Hong Kong

To maximize your solar PV system's energy output in Tai Wai, Hong Kong (Lat/Long 22.4531, 114.032) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tai Wai, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tai Wai, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	38° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tai Wai, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tai Wai, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tai Wai, Hong Kong

The area around Tai Wai in Hong Kong presents a diverse and challenging topography. Situated in the New Territories region, Tai Wai is nestled in a valley surrounded by steep hills and mountains. To the north and west, the terrain rises sharply into the foothills of the Tai Mo Shan Country Park, with elevations increasing rapidly from the relatively flat valley floor. The eastern side of Tai Wai is bordered by the Shing Mun River, which flows southward through a channel before emptying into Tolo Harbour. The urban development of Tai Wai occupies much of the flat land in the valley, with residential and commercial buildings dominating the landscape. As one moves away from the town center, the terrain becomes increasingly hilly and forested. The nearby Lion Rock Country Park to the south features dramatic rocky outcrops and dense vegetation, creating a stark contrast to the urbanized areas below.

Potential for Large-Scale Solar PV

When considering areas nearby that might be suitable for large-scale solar photovoltaic (PV) installations, several factors must be taken into account. The hilly terrain surrounding Tai Wai presents challenges for such projects, as flat, open spaces are limited. However, there are a few potential areas that could be explored: The relatively flat areas along the Shing Mun River might offer some opportunities for solar installations. While these spaces are limited in size, they could potentially accommodate smaller-scale solar farms. Care would need to be taken to ensure that any development does not interfere with flood management or ecological considerations. Some of the gentler slopes on the outskirts of Tai Wai, particularly to the north and east, could be considered for terraced solar installations. These would require careful engineering to maximize sun exposure while minimizing environmental impact and erosion risks. Repurposing existing infrastructure, such as large rooftops of industrial buildings or public facilities in the nearby industrial areas of Fo Tan or Sha Tin, might provide the most practical solution for large-scale solar PV in the region. These flat surfaces could offer significant square footage without requiring additional land use. It's important to note that Hong Kong's dense urban development and limited land availability make large-scale ground-mounted solar farms challenging to implement. Any solar PV projects in the Tai Wai area would likely need to be integrated into existing structures or carefully planned to fit within the constraints of the local topography and land use regulations.
