Tin Shui Wai, Yuen Long District, located in Hong Kong's New Territories, offers a promising location for solar PV energy generation. Situated in the tropics, this area experiences consistent sunlight throughout much of the year, with seasons characterized more by wet and dry periods than temperature fluctuations.

Seasonal Solar Performance

Solar panels in Tin Shui Wai demonstrate robust energy production across all seasons. Summer stands out as the peak period, generating an impressive 5.36 kWh per day for each kilowatt of installed capacity. Spring follows closely, with 5.04 kWh/day, while autumn and winter produce 4.69 kWh/day and 4.25 kWh/day, respectively. This relatively small variation between seasons indicates a steady and reliable solar energy potential throughout the year.

Optimal Panel Positioning

To maximize year-round solar energy production in Tin Shui Wai, Yuen Long District, fixed solar panels should be tilted at a 21-degree angle facing south. This optimal angle takes into account the location's latitude, the sun's changing position throughout the year, and local solar irradiance data.

Environmental Considerations

While Tin Shui Wai's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider. The region experiences a monsoon season, typically from May to September, which can bring heavy rainfall and increased cloud cover. This may temporarily reduce solar panel efficiency during these months.

Additionally, the area's proximity to the Pearl River Delta means it can be affected by air pollution and haze, particularly during the winter months. This can slightly diminish solar radiation reaching the panels.

Preventative Measures

To mitigate these environmental challenges and ensure optimal solar energy production, consider the following measures:

• Install high-quality, weather-resistant panels capable of performing well in humid conditions.
• Implement a regular cleaning schedule to remove dust and pollutants that may accumulate on the panels, especially during drier periods.

By taking these precautions, solar installations in Tin Shui Wai can capitalize on the area's generally favorable conditions for solar energy production, making it an ideal location for year-round solar PV generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

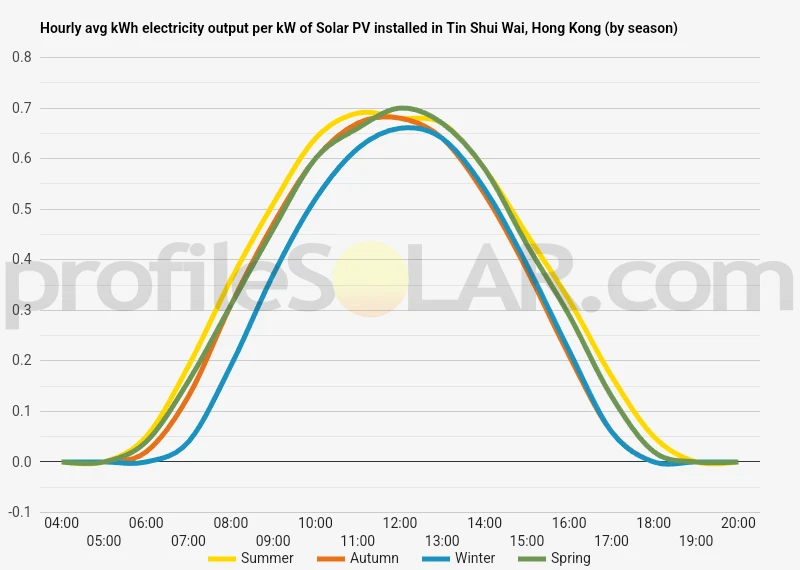

Solar output per kW of installed solar PV by season in Tin Shui Wai

Seasonal solar PV output for Latitude: 22.4489, Longitude: 113.9984 (Tin Shui Wai, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.36kWh/day in Summer.

Average 4.69kWh/day in Autumn.

Average 4.25kWh/day in Winter.

Average 5.04kWh/day in Spring.

Ideally tilt fixed solar panels 21° South in Tin Shui Wai, Hong Kong

To maximize your solar PV system's energy output in Tin Shui Wai, Hong Kong (Lat/Long 22.4489, 113.9984) throughout the year, you should tilt your panels at an angle of 21° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 22.4489, Longitude: 113.9984, the ideal angle to tilt panels is 21° South

Seasonally adjusted solar panel tilt angles for Tin Shui Wai, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tin Shui Wai, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tin Shui Wai, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tin Shui Wai, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tin Shui Wai, Hong Kong

Tin Shui Wai is located in the northwestern part of Hong Kong's New Territories, situated in a relatively flat area near the coast. The topography around Tin Shui Wai is characterized by a mix of urban development and natural features.

To the east and south of Tin Shui Wai, the land is predominantly flat, consisting of reclaimed land and wetlands. This area includes the Hong Kong Wetland Park, which is a large nature reserve with marshes and ponds. The flat terrain extends towards the nearby towns of Yuen Long and Tuen Mun.

To the west, the landscape transitions into the waters of Deep Bay, which separates Hong Kong from mainland China. The coastline in this area is relatively low-lying and features mudflats and mangrove forests.

To the north and northeast, the terrain becomes more varied, with gentle hills and small mountains rising from the flat coastal plain. These hills are part of the larger mountain ranges that make up much of Hong Kong's northern New Territories.

Areas Suited for Large-Scale Solar PV

For large-scale solar photovoltaic (PV) installations, the most suitable areas near Tin Shui Wai would likely be:

1. The flat, open areas to the east and south of Tin Shui Wai: These regions offer expansive spaces that could potentially accommodate large solar arrays. However, it's important to note that much of this land is either developed or protected as wetlands, which may limit the available area for solar installations.

2. Rooftops of large industrial or commercial buildings in nearby areas like Yuen Long or Tuen Mun: While not strictly "topographical," these flat surfaces could provide significant space for solar panels without requiring additional land use.

3. The gentler slopes of hills to the north and northeast: These areas might be suitable for solar farms, as they receive good sun exposure and are less likely to be shadowed by taller mountains. However, careful planning would be needed to minimize environmental impact and manage potential runoff issues.

It's worth noting that Hong Kong's dense urban development and limited land availability pose challenges for large-scale solar projects. Any significant solar PV installation would need to carefully balance energy production goals with environmental conservation and urban planning considerations.

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
