Tsuen Wan, Hong Kong, situated at 22.3638°N, 114.1091°E, offers a promising location for solar PV energy generation throughout the year. This tropical climate provides consistent sunlight, with seasons primarily distinguished by wet and dry periods rather than significant temperature variations.

Seasonal Solar Performance

The solar energy potential in Tsuen Wan demonstrates a relatively stable output across seasons. Summer yields the highest production at 5.52 kWh/day per kW installed, closely followed by spring at 5.40 kWh/day. Autumn maintains a respectable 4.91 kWh/day, while winter sees a slight dip to 4.35 kWh/day. This consistency is advantageous for year-round solar energy generation.

Optimal Generation Periods

The most favorable times for solar energy production in Tsuen Wan are during the summer and spring months. These seasons offer longer daylight hours and clearer skies, maximizing solar panel efficiency. However, the relatively small variation between seasons suggests that solar PV systems can operate effectively throughout the year.

Panel Installation Considerations

For fixed panel installations in Tsuen Wan, the ideal tilt angle to maximize year-round solar production is 20 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Factors

While Tsuen Wan's tropical climate is generally favorable for solar energy, there are some environmental factors to consider:

• Typhoons: Hong Kong experiences typhoons, which can potentially damage solar installations.
• Air pollution: Urban air pollution may occasionally reduce solar irradiance.

To mitigate these factors, solar installations should incorporate sturdy mounting systems capable of withstanding high winds. Regular cleaning and maintenance can help offset the impact of air pollution on panel efficiency. Additionally, using high-quality, weather-resistant panels can ensure longevity and consistent performance in this tropical urban environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

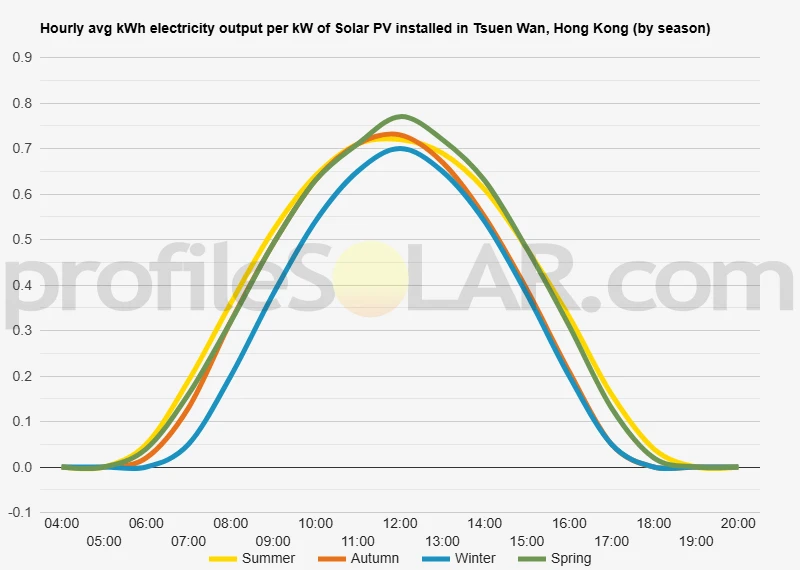

Solar output per kW of installed solar PV by season in Tsuen Wan

Seasonal solar PV output for Latitude: 22.3638, Longitude: 114.1091 (Tsuen Wan, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Tsuen Wan, Hong Kong

To maximize your solar PV system's energy output in Tsuen Wan, Hong Kong (Lat/Long 22.3638, 114.1091) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tsuen Wan, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tsuen Wan, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	37° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tsuen Wan, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tsuen Wan, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tsuen Wan, Hong Kong

Tsuen Wan, located in the New Territories of Hong Kong, is characterized by a diverse and dramatic topography. The area is nestled between steep mountains and the coast, creating a unique landscape that combines urban development with natural features. To the north and west of Tsuen Wan, the terrain rises sharply into the Tai Mo Shan Country Park. This mountainous region is dominated by Tai Mo Shan, Hong Kong's highest peak at 957 meters (3,140 feet) above sea level. The slopes of these mountains are covered in lush vegetation and are crisscrossed by hiking trails and small streams. To the south and east, Tsuen Wan opens up to the sea, specifically to Rambler Channel and the western part of Victoria Harbour. The coastline here has been significantly altered by land reclamation, creating flat areas that now host industrial and residential developments. The urban core of Tsuen Wan itself sits on relatively flat land, much of which has been reclaimed from the sea over the years. This area is densely populated and built up with high-rise buildings and infrastructure.

Potential for Large-scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal location would have ample sunlight exposure, relatively flat terrain, and minimal shadowing from surrounding features. Given these criteria, the most suitable areas for large-scale solar PV near Tsuen Wan would likely be: 1. Reclaimed coastal areas: The flat, open spaces created by land reclamation along the coast could potentially accommodate solar installations. However, competition for this valuable land from urban development might be a limiting factor. 2. Industrial rooftops: The numerous large industrial buildings in Tsuen Wan and neighboring areas like Kwai Chung offer extensive flat roof spaces that could be utilized for solar panels. 3. Reservoirs: While not immediately adjacent to Tsuen Wan, the nearby Tai Lam Chung Reservoir and Shing Mun Reservoir have potential for floating solar installations, a technology that is gaining popularity worldwide. It's important to note that the mountainous areas, while receiving good sunlight, are less suitable due to their steep slopes and ecological importance. Additionally, any large-scale solar projects would need to carefully consider Hong Kong's dense urban environment, limited land availability, and strict regulations regarding land use and environmental protection.
