Tsz Wan Shan, Wong Tai Sin, Hong Kong represents a moderately good location for year-round solar energy generation, though it faces some significant challenges that potential solar installers should carefully consider.

Solar Energy Production Potential

The location produces consistent solar energy throughout the year, with summer being the peak season at 5.52 kWh per day per kW of installed solar capacity. Spring follows closely behind at 5.41 kWh per day, making these the optimal months for solar generation. Autumn drops to 4.90 kWh per day, while winter sees the lowest production at 4.35 kWh per day per kW installed. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 20 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's position throughout the year and local solar irradiance patterns.

Environmental and Weather Challenges

Hong Kong's subtropical climate presents several significant factors that can impede solar energy production at Tsz Wan Shan:

• High humidity and frequent cloud cover - particularly during the wet season, which can substantially reduce solar irradiance
• Typhoons and severe weather events - common during summer and early autumn, posing risks to solar installations
• Air pollution and urban haze - can create a film on panels and reduce light transmission
• Heavy monsoon rains - while helpful for cleaning, can be accompanied by extended cloudy periods

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented during installation: **Structural reinforcement** is essential to withstand typhoon-force winds. Panels should be mounted with heavy-duty racking systems and additional anchoring appropriate for Hong Kong's building codes and extreme weather requirements. **Regular maintenance scheduling** becomes crucial in this environment. Monthly cleaning of panels is recommended to remove accumulated dust, pollution residue, and organic matter that can significantly reduce efficiency. Automated cleaning systems may be worth considering for larger installations. **Enhanced drainage systems** should be incorporated around panel installations to handle Hong Kong's intense rainfall and prevent water accumulation that could damage electrical components or create safety hazards. **Corrosion-resistant materials** are vital given the high humidity and occasional salt spray from the nearby ocean. All mounting hardware, electrical connections, and panel frames should be rated for marine or high-humidity environments. Despite these challenges, Tsz Wan Shan's tropical location provides relatively consistent solar energy production year-round compared to temperate climates, making it a viable location for solar installation when proper precautions are taken.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

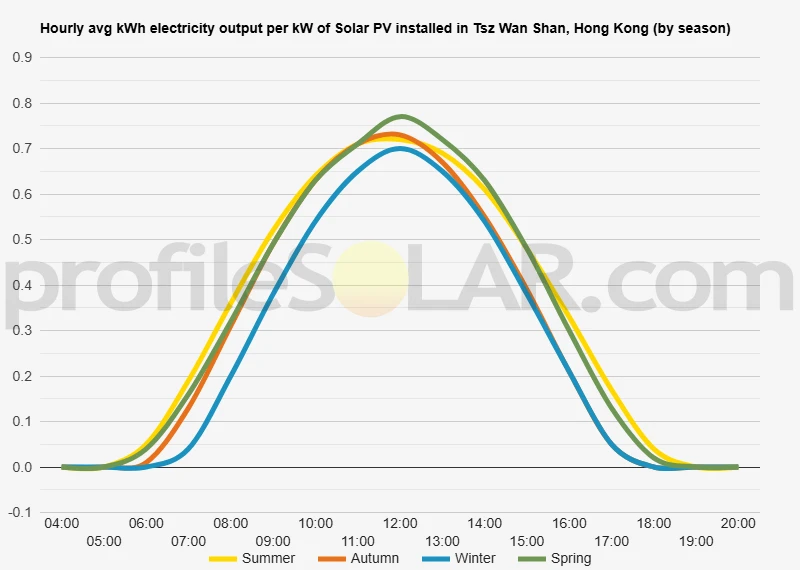

Solar output per kW of installed solar PV by season in Tsz Wan Shan

Seasonal solar PV output for Latitude: 22.3531, Longitude: 114.2027 (Tsz Wan Shan, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Tsz Wan Shan, Hong Kong

To maximize your solar PV system's energy output in Tsz Wan Shan, Hong Kong (Lat/Long 22.3531, 114.2027) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tsz Wan Shan, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tsz Wan Shan, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	37° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tsz Wan Shan, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tsz Wan Shan, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tsz Wan Shan, Hong Kong

Topography Around Tsz Wan Shan

Tsz Wan Shan sits in the eastern part of Kowloon Peninsula, nestled within a landscape characterized by steep hills and narrow valleys typical of Hong Kong's dramatic terrain. The area is dominated by the towering presence of Lion Rock to the northwest, which rises sharply from the surrounding urban development. The neighborhood itself is built on sloping ground, with residential towers and infrastructure carefully positioned to work with the natural contours of the hillsides. The immediate vicinity features a series of ridges and valleys that create a complex topographical pattern. To the east, the terrain continues to rise toward the New Territories, while westward the land generally slopes down toward the more densely developed areas of Kowloon. The natural drainage patterns have been significantly modified by urban development, with streams channeled into concrete waterways and hillsides terraced to accommodate housing estates. Rocky outcrops and steep gradients are common throughout the area, reflecting Hong Kong's geological foundation of volcanic rocks and granite intrusions. The original vegetation has been largely replaced by urban infrastructure, though some hillside areas retain patches of secondary forest and shrubland on slopes too steep for development.

Solar PV Suitability in Nearby Areas

The challenging topography around Tsz Wan Shan presents both opportunities and obstacles for large-scale solar installations. The most promising locations would be the flatter industrial and commercial zones to the south and west, where Kai Tak Airport once operated. This reclaimed land area offers extensive flat surfaces with minimal shading from surrounding hills, making it ideal for ground-mounted solar arrays or large rooftop installations on industrial buildings. The hillsides themselves, while offering good solar exposure on south-facing slopes, present significant challenges for large-scale development due to their steep gradients and the engineering difficulties of installing and maintaining solar panels on such terrain. However, some of the broader ridgelines and plateau areas in the surrounding New Territories could accommodate solar installations, particularly where the land has been previously cleared or developed for other purposes. Rooftop installations on the numerous high-rise residential and commercial buildings in the area represent another significant opportunity. The density of tall buildings means that upper floors and rooftops often receive good solar exposure despite the hilly terrain, though careful assessment would be needed to account for shading from adjacent structures and hills. The former quarry sites and other disturbed lands in the broader region could also provide suitable locations for solar development, as these areas often feature relatively flat terraced surfaces created during the extraction process and may have fewer competing land uses than prime development sites.
