The location in Tuen Mun, Hong Kong, situated in the tropics, offers a promising environment for solar energy generation throughout the year. With its consistent sunlight and seasonal patterns characterized by wet and dry periods rather than extreme temperature fluctuations, this area presents favorable conditions for solar PV installations.

Seasonal Solar Performance

Solar panel performance in Tuen Mun varies across the seasons, but remains relatively strong year-round. Summer months yield the highest output at 5.36 kWh per day for each kilowatt of installed capacity. Spring follows closely with 5.04 kWh/day, while autumn and winter see slightly reduced but still significant production at 4.69 kWh/day and 4.25 kWh/day, respectively.

Optimal Installation Angle

For fixed panel installations in Tuen Mun, the ideal tilt angle to maximize year-round solar production is 21 degrees facing south. This angle has been calculated to optimize energy capture across all seasons, taking into account the location's latitude and the Earth's elliptical orbit.

Peak Generation Periods

The most productive periods for solar energy generation in Tuen Mun are during the summer months, typically from June to August. However, the relatively high output during spring and autumn means that the location benefits from extended periods of strong solar potential throughout the year.

Environmental Considerations

While Tuen Mun's tropical climate is generally favorable for solar energy, there are some environmental factors to consider: 1. Typhoons: Hong Kong is prone to tropical cyclones, which can potentially damage solar installations. 2. High humidity: The area's humid climate may lead to increased dust accumulation on panels, potentially reducing efficiency. To mitigate these challenges, solar installations in Tuen Mun should incorporate robust mounting systems capable of withstanding high winds. Regular cleaning and maintenance schedules should also be implemented to combat the effects of humidity and dust accumulation, ensuring optimal performance year-round. In conclusion, Tuen Mun's location offers strong potential for solar energy generation, with consistent output throughout the year and particularly high yields during summer and spring. By addressing the environmental challenges through appropriate installation and maintenance practices, solar PV systems in this area can provide reliable and efficient renewable energy.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 47 locations across Hong Kong. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Hong Kong by location

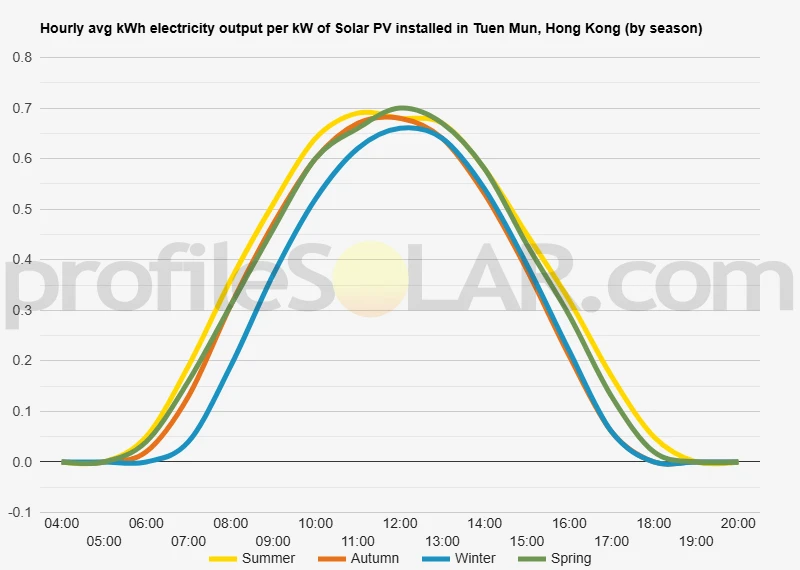

Solar output per kW of installed solar PV by season in Tuen Mun

Seasonal solar PV output for Latitude: 22.3981, Longitude: 113.9737 (Tuen Mun, Hong Kong), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° South in Tuen Mun, Hong Kong

To maximize your solar PV system's energy output in Tuen Mun, Hong Kong (Lat/Long 22.3981, 113.9737) throughout the year, you should tilt your panels at an angle of 21° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tuen Mun, Hong Kong

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tuen Mun, Hong Kong. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	38° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tuen Mun, Hong Kong

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tuen Mun, Hong Kong.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tuen Mun, Hong Kong

Tuen Mun, located in the western New Territories of Hong Kong, is characterized by a diverse and picturesque topography. The area features a unique blend of coastal plains, rolling hills, and steep mountains, creating a varied landscape that offers both challenges and opportunities for development. Along the coast, Tuen Mun boasts expansive flatlands that gradually rise into gently sloping terrain. These lowland areas are where most of the urban development has taken place, with residential complexes, industrial zones, and commercial centers dotting the landscape. The flat coastal regions provide easy access to the sea, supporting various maritime activities and offering scenic views of the surrounding waters. As one moves inland from the coast, the terrain becomes increasingly hilly. These undulating areas are often covered in lush vegetation, providing a stark contrast to the more densely populated coastal zones. The hills surrounding Tuen Mun offer panoramic views of the city and the sea, making them popular spots for hiking and outdoor recreation.

Mountain Ranges

Further inland, the landscape transitions into more rugged mountain terrain. The most prominent mountain in the vicinity is Castle Peak, also known as Pui To Shan, which rises to an elevation of about 583 meters above sea level. This mountain, along with other peaks in the area, forms part of the Tai Lam Country Park, a vast expanse of protected natural land that surrounds much of Tuen Mun's eastern and northern borders.

Potential for Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would have ample sunlight exposure, relatively flat terrain for ease of installation, and minimal shading from surrounding landscape features. The coastal flatlands of Tuen Mun, particularly in areas that are not heavily developed, could potentially accommodate large-scale solar installations. These areas benefit from unobstructed sunlight and easier access for construction and maintenance. Some of the gently sloping hillsides surrounding Tuen Mun might also be suitable for solar PV projects. While they may require some terrain modification, these areas often have good sun exposure and are less likely to be affected by shading from nearby buildings or natural features. However, it's important to note that Hong Kong faces significant land constraints, and any large-scale solar projects would need to carefully balance energy production goals with other land use priorities, including conservation and urban development needs. Additionally, the region's subtropical climate, characterized by periods of heavy rainfall and occasional typhoons, would need to be factored into the design and implementation of any solar PV installations.
