Solar Energy Potential in Alwar, Rajasthan, India

Alwar, Rajasthan, located in northern India at coordinates 27.5634, 76.626, offers a promising location for solar energy generation. The city experiences significant solar potential throughout the year, with varying levels of electricity output across different seasons. Spring stands out as the most productive season for solar energy in Alwar, Rajasthan, with an impressive daily output of 6.63 kWh per kW of installed solar capacity. This high yield is likely due to clear skies and optimal sun angles during this time of year. Summer follows closely behind, generating 5.65 kWh per day, benefiting from long daylight hours and intense sunlight. Autumn sees a slight decrease in solar production, with 4.55 kWh per day, while winter experiences the lowest output at 3.95 kWh per day. Despite the reduced efficiency during winter months, Alwar still maintains a respectable solar energy potential year-round.

Optimal Panel Installation

For fixed solar panel installations in Alwar, Rajasthan, the ideal tilt angle to maximize year-round energy production is 25 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for seasonal variations in the sun's position.

Environmental Considerations

While Alwar generally provides favorable conditions for solar energy production, there are some environmental factors to consider: 1. Dust and air pollution: Alwar, Rajasthan, like many cities in northern India, can experience high levels of air pollution and dust, particularly during the dry seasons. These particles can accumulate on solar panels, reducing their efficiency. 2. Monsoon season: The region experiences a monsoon season, typically from July to September, which can lead to increased cloud cover and potentially reduced solar output. To mitigate these challenges, consider implementing the following measures:

• Regular cleaning and maintenance of solar panels to remove dust and debris
• Installing panels at a slightly steeper angle to promote natural cleaning by rainwater
• Using anti-soiling coatings on panel surfaces to minimize dust accumulation
• Implementing a robust drainage system to manage heavy rainfall during monsoon season

By addressing these factors, solar installations in Alwar can maximize their energy production potential and capitalize on the region's abundant sunlight throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

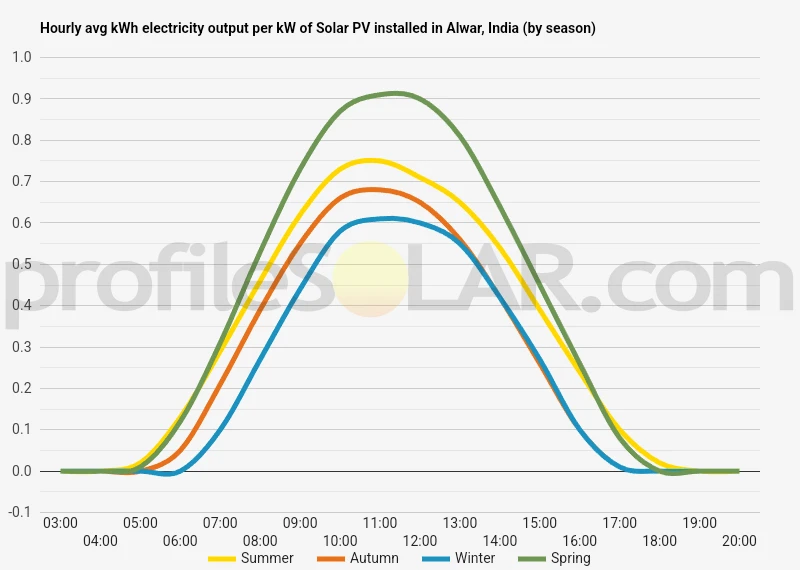

Solar output per kW of installed solar PV by season in Alwar

Seasonal solar PV output for Latitude: 27.5634, Longitude: 76.626 (Alwar, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Alwar, India

To maximize your solar PV system's energy output in Alwar, India (Lat/Long 27.5634, 76.626) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Alwar, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Alwar, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	33° South in Autumn	42° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Alwar, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Alwar, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Alwar, India

The topography around Alwar, India is characterized by a diverse landscape that includes both flat plains and hilly terrain. Alwar is situated in the eastern part of the state of Rajasthan, nestled between the Aravalli Range and the Indo-Gangetic plains. This unique location gives the area a varied topographical profile.

To the north and east of Alwar, you'll find mostly flat or gently rolling plains. These areas are part of the larger Indo-Gangetic plain system and are primarily used for agriculture. The land here is relatively level, with occasional small hills or elevated areas.

To the south and west, the terrain becomes more rugged as it transitions into the foothills of the Aravalli Range. This ancient mountain range runs through Rajasthan and creates a series of hills and ridges near Alwar. The Sariska Tiger Reserve, located to the southwest of Alwar, is a prime example of this hilly landscape, featuring forested areas and rocky outcrops.

When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the flat plains to the north and east of Alwar present the most promising opportunities. These areas offer several advantages for solar energy production:

Firstly, the flat terrain makes it easier and more cost-effective to install large arrays of solar panels. There's less need for extensive land preparation or terracing, which can significantly reduce construction costs. Secondly, these open plains typically receive ample sunlight throughout the year, with fewer obstructions from hills or tall vegetation that could cast shadows on the panels.

Additionally, the agricultural nature of these plains means that there are likely to be large, contiguous parcels of land available for development. This is crucial for utility-scale solar projects, which require significant space to achieve meaningful power generation capacity.

However, it's important to note that while the flat plains are generally more suitable, specific site selection would require detailed environmental and technical assessments. Factors such as soil stability, flood risk, proximity to power transmission infrastructure, and local land use regulations would all need to be carefully evaluated before determining the exact location for a large-scale solar PV installation in the region around Alwar.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
