Solar Energy Potential in Ballari, Karnataka, India

Ballari, Karnataka, India, located at 15.1463° N, 76.926° E, offers promising conditions for solar power generation throughout the year. Situated in the tropics, this location benefits from relatively consistent sunlight patterns compared to regions at higher latitudes. The seasonal solar production data reveals interesting patterns. During spring, Ballari experiences its peak solar generation potential with an impressive 7.06 kWh per day for each kilowatt of installed capacity. Winter follows as the second most productive season with 5.47 kWh/day, while summer yields 5.31 kWh/day. Autumn shows the lowest output at 4.85 kWh/day per installed kilowatt. This seasonal variation indicates that March through May (spring) represents the optimal period for solar energy production in Ballari. The relatively strong performance during winter months is particularly advantageous, as many locations experience significant drops in solar production during this season.

Optimal Panel Installation

For fixed solar panel installations in Ballari, Karnataka, the ideal tilt angle to maximize year-round energy production is 14 degrees facing South. This carefully calculated angle optimizes the panels' exposure to sunlight throughout the year, accounting for the region's tropical latitude and the Earth's elliptical orbit.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Ballari:

• Dust and particulate matter: Ballari's semi-arid climate and industrial activities (particularly mining) can lead to dust accumulation on panels, reducing efficiency by up to 25% if not addressed.
• Monsoon season: The region experiences heavy rainfall during the southwest monsoon (June-September), which coincides with reduced solar radiation due to cloud cover.
• High temperatures: Summer temperatures frequently exceed 40°C, which can reduce photovoltaic efficiency as solar panels typically lose efficiency above 25°C.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended: Regular cleaning protocols should be implemented, especially during dry and dusty periods. Automated cleaning systems or scheduled manual cleaning can maintain optimal panel performance. Additionally, installing panels at the recommended 14-degree tilt helps with natural cleaning during rainfall. For temperature concerns, ensuring adequate airflow beneath panels through proper mounting systems can help mitigate heat-related efficiency losses. Using high-efficiency panels with better temperature coefficients would also be beneficial in this tropical climate. Considering the seasonal variation, a slightly oversized system might be warranted to compensate for the lower autumn production, ensuring more consistent power supply throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

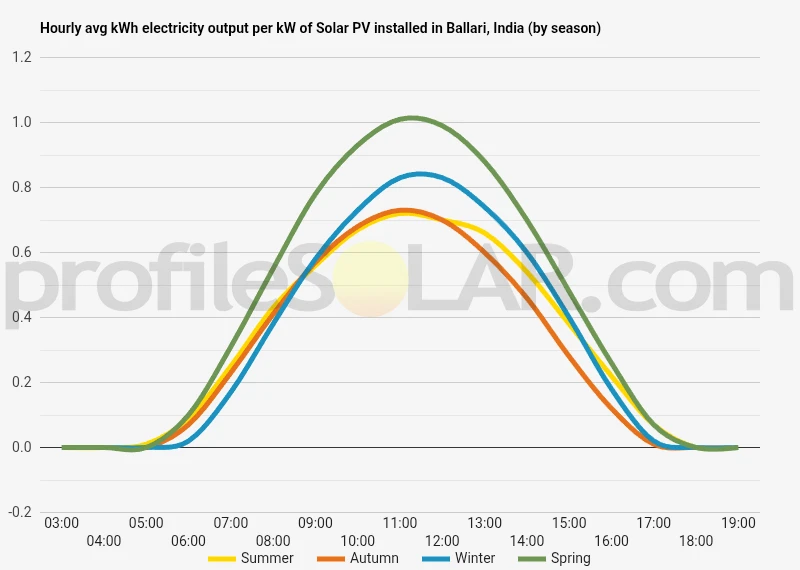

Solar output per kW of installed solar PV by season in Ballari

Seasonal solar PV output for Latitude: 15.1463, Longitude: 76.926 (Ballari, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 14° South in Ballari, India

To maximize your solar PV system's energy output in Ballari, India (Lat/Long 15.1463, 76.926) throughout the year, you should tilt your panels at an angle of 14° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ballari, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ballari, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 14° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	21° South in Autumn	30° South in Winter	9° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ballari, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ballari, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ballari, India

Ballari, located in the southern Indian state of Karnataka, features a distinctive topography characterized by rocky terrain and undulating landscapes. The region sits within the eastern part of the Deccan Plateau, with an elevation averaging around 460 meters above sea level. The landscape is dominated by granite outcrops and rocky hills, including the prominent Ballari Gudda (Ballari Hill) which rises distinctly from the surrounding plains. The terrain around Ballari consists primarily of semi-arid plains interspersed with scattered rocky formations. These plains extend for considerable distances, particularly to the east and south of the city. The land gradually slopes from the hilly western regions toward the eastern plains, creating natural drainage patterns that flow eastward.

Geological Features

The geology of the Ballari region is predominantly composed of ancient granite and gneiss formations that are part of the Dharwar Craton, one of the oldest geological formations in India. These rocks contribute to the rugged nature of the landscape and the formation of distinctive hills that punctuate the horizon. The soil in the region tends to be red and black, derived from the weathering of these underlying rocks, with varying degrees of fertility. Water bodies in the region are limited, with the Tungabhadra River flowing approximately 30 kilometers to the west. Several seasonal streams and minor water channels crisscross the landscape, most of which remain dry outside the monsoon season.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the eastern and southeastern plains surrounding Ballari offer particularly favorable conditions. These areas combine several advantageous characteristics: The flat to gently undulating terrain in these directions requires minimal land preparation, reducing installation costs and environmental impact. The absence of significant geographical barriers allows for efficient layout of solar arrays across large continuous parcels. The relatively sparse vegetation in these semi-arid plains means less land clearing is necessary, further reducing environmental disruption and project costs. The natural drainage patterns in these areas also help minimize the risk of flooding that could damage solar infrastructure. The northwestern regions, while still suitable, feature more variable terrain that might require additional engineering solutions. The southwestern areas near the Sandur hills present more challenging topography with steeper slopes and more pronounced elevation changes.

Practical Considerations

The abundant open space in the plains east of Ballari provides ample room for large-scale developments without significant competition from agricultural or urban land uses. These areas also benefit from proximity to existing transportation infrastructure, with several highways and railways connecting Ballari to major cities, facilitating equipment transport during construction and maintenance. The region's natural elevation gradient can be strategically utilized to minimize shading between solar panels, particularly in the eastern plains where the gentle slopes often face in favorable directions for solar exposure. It's worth noting that while the rocky outcrops characteristic of the region might initially seem disadvantageous, they can actually provide natural windbreaks that help protect solar installations from dust storms and strong winds that occasionally affect the area.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
