Solar Energy Potential in Ernakulam, Kerala, India

Ernakulam, Kerala, India, located at 9.9406° N, 76.2653° E, offers a promising location for solar energy generation throughout the year. This tropical location benefits from consistent sunlight patterns, making it suitable for solar photovoltaic (PV) installations. The seasonal energy production shows interesting variations across the year. Spring stands out as the most productive season, with panels generating approximately 6.32 kWh per day for each kilowatt of installed capacity. Winter follows closely behind at 6.12 kWh/day. Summer yields about 5.24 kWh/day, while autumn represents the lowest production period at 4.77 kWh/day. This seasonal pattern reveals that contrary to what might be expected, the cooler seasons of winter and spring actually outperform the summer months for solar energy generation in Ernakulam. This makes the location particularly valuable for year-round energy production without extreme seasonal drops.

Optimal Panel Installation

For fixed solar panel installations in Ernakulam, Kerala, the ideal tilt angle is 10 degrees facing South. This specific angle has been calculated to maximize total year-round production based on the location's latitude and seasonal solar patterns. Proper installation at this angle can significantly improve overall energy yield compared to flat or improperly angled installations.

Environmental Considerations

Several environmental factors could potentially impact solar production in Ernakulam:

• Monsoon seasons bring heavy rainfall, particularly during the June-September southwest monsoon and the October-November northeast monsoon. These periods may correspond with the lower autumn production figures.
• High humidity levels in this tropical location can create condensation on panels, potentially reducing efficiency if not properly managed.
• Dust accumulation is common in urban areas like Ernakulam and can gradually decrease panel efficiency.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended: Installing panels with proper drainage systems and anti-soiling coatings can minimize the impact of heavy rainfall. Regular cleaning schedules, particularly after the monsoon seasons, will help maintain optimal efficiency. Using high-quality, humidity-resistant components and proper sealing techniques during installation will prevent moisture-related damage. Additionally, automated cleaning systems or scheduled maintenance can address dust accumulation, especially important in urban environments. Finally, choosing high-temperature rated panels is advisable, as they maintain better efficiency during hot periods, which are common in this tropical location. With these considerations in mind, Ernakulam presents a favorable location for solar PV installations with relatively consistent energy production throughout the year when properly installed and maintained.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

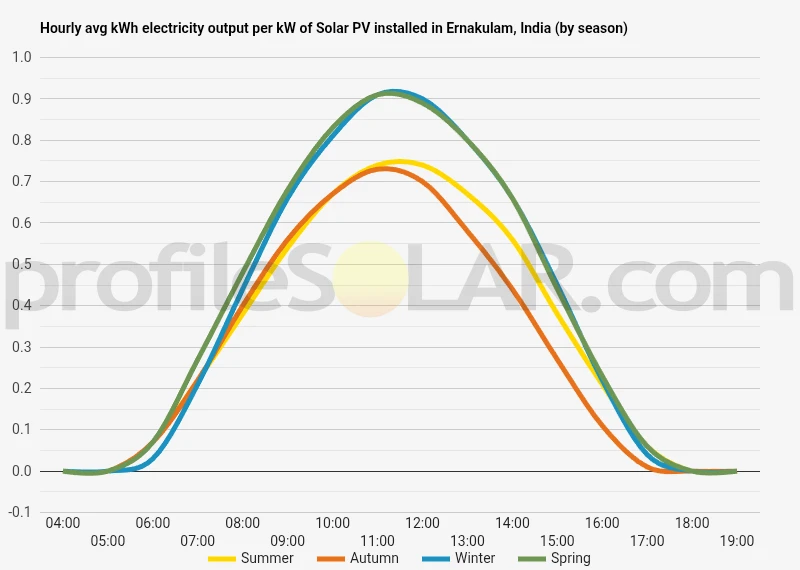

Solar output per kW of installed solar PV by season in Ernakulam

Seasonal solar PV output for Latitude: 9.9406, Longitude: 76.2653 (Ernakulam, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Ernakulam, India

To maximize your solar PV system's energy output in Ernakulam, India (Lat/Long 9.9406, 76.2653) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ernakulam, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ernakulam, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	15° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ernakulam, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ernakulam, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ernakulam, India

The topography around Ernakulam, India presents a diverse landscape characterized by coastal plains transitioning to highlands as one moves eastward. Ernakulam district, which includes the commercial hub of Kochi (Cochin), sits along the southwestern coast of India in the state of Kerala. The immediate vicinity of Ernakulam city is predominantly flat, with elevation generally less than 10 meters above sea level. This coastal plain extends several kilometers inland before the terrain begins to rise.

Coastal Features

The western boundary of Ernakulam is defined by the Arabian Sea and the famous Kerala backwaters - an intricate network of brackish lagoons, lakes, and canals running parallel to the coast. These backwaters include portions of Lake Vembanad, one of the largest lakes in India. The coastal areas feature sandy beaches interspersed with river mouths and estuaries where multiple waterways meet the sea.

Inland Topography

Moving eastward from Ernakulam, the landscape gradually transitions from coastal plains to undulating midlands. This midland region features gentle hills and valleys with elevations typically ranging from 20 to 100 meters. The terrain becomes increasingly varied with numerous small hillocks, plateaus, and valleys created by the many rivers and streams flowing westward toward the Arabian Sea. Further east, the topography becomes more pronounced as it approaches the Western Ghats mountain range. The eastern portions of Ernakulam district feature significant hills with elevations reaching 300-1000 meters in some areas. These highlands are characterized by steep slopes, dense forests, and numerous waterfalls, particularly during the monsoon season.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas around Ernakulam show promise based on topographical considerations: The midland regions east of Ernakulam city offer favorable conditions for solar development. These areas, with their gently rolling terrain between 20-100 meters elevation, provide reasonable flat expanses while avoiding the flood-prone coastal plains. Regions around Muvattupuzha, Kothamangalam, and Perumbavoor have suitable topography with adequate land that isn't excessively steep or prone to flooding. Some of the plateau areas in the eastern parts of the district also present opportunities for solar development. While these areas have higher elevation, they often feature relatively flat tops that could accommodate large solar arrays. Areas near Neriyamangalam and parts of Kuttampuzha offer such topographical advantages. The coastal plains, while flat and seemingly ideal, present challenges due to high population density, intensive agriculture, and vulnerability to flooding. However, certain less developed sections of the coastal belt, particularly north of Kochi toward Kodungallur, have suitable topography for solar installations provided appropriate flood mitigation measures are implemented.

Topographical Challenges

Despite these promising areas, several topographical factors constrain solar development around Ernakulam. The region receives heavy rainfall during monsoon seasons, which has shaped the landscape through significant erosion. This creates drainage patterns that must be considered when planning large installations. The steeper eastern highlands, while receiving good solar radiation, present challenges for large-scale development due to difficult terrain, dense forest cover, and environmental sensitivity as they approach the biodiversity-rich Western Ghats. Additionally, the extensive network of rivers, streams, and backwaters fragments much of the landscape, limiting the size of contiguous land parcels available for very large solar installations. In conclusion, the midland regions east of Ernakulam city, with their balance of reasonable flatness, adequate elevation to avoid flooding, and relatively lower population density compared to coastal areas, offer the most promising topography for large-scale solar PV development in the region.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
