Solar Energy Potential in Gwalior, Madhya Pradesh, India

Gwalior, Madhya Pradesh, India, located at 26.2331° N, 78.1692° E in the Northern Sub Tropics, offers promising conditions for solar PV energy generation throughout the year. The seasonal electricity output shows significant variation across different times of the year, making it an interesting location for solar power installation. Spring stands out as the most productive season in Gwalior, Madhya Pradesh, with an impressive 6.88 kWh per day for each kilowatt of installed solar capacity. Summer follows with a solid performance of 5.49 kWh/day, while autumn sees a moderate decline to 4.68 kWh/day. Winter represents the least productive period, though still delivering a respectable 3.97 kWh/day per kW installed.

Optimal Panel Installation

For fixed solar panel installations in Gwalior, Madhya Pradesh, the ideal tilt angle to maximize year-round energy production is 24 degrees facing South. This carefully calculated angle balances seasonal variations in the sun's position to capture the most solar energy throughout the entire year.

Environmental and Weather Considerations

Several environmental factors in Gwalior can potentially impact solar energy production:

• Dust and air pollution: Gwalior occasionally experiences high levels of airborne particulates that can accumulate on panel surfaces, reducing efficiency by up to 25% if not addressed.
• Seasonal monsoons: Heavy rainfall during monsoon season can temporarily reduce solar output, though the panels will benefit from natural cleaning.
• High summer temperatures: When temperatures exceed 40°C (which happens frequently in Gwalior summers), solar panel efficiency can decrease slightly.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Regular cleaning schedule: Implementing monthly panel cleaning during dry seasons and bi-weekly during extreme dust conditions
• Temperature management: Installing panels with sufficient airflow beneath them to reduce temperature-related efficiency losses
• Quality inverters: Using inverters designed to perform well in high-temperature environments
• Elevated mounting: Positioning panels at sufficient height to avoid dust accumulation from ground-level activities

With proper installation and maintenance, Gwalior's strong spring and summer solar potential can be effectively harnessed, with reasonable production continuing even during the less ideal winter months.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

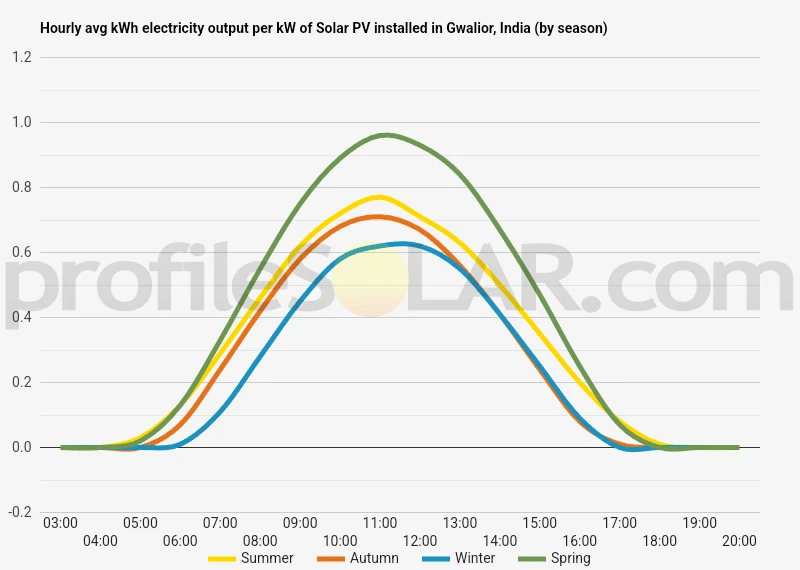

Solar output per kW of installed solar PV by season in Gwalior

Seasonal solar PV output for Latitude: 26.2331, Longitude: 78.1692 (Gwalior, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° South in Gwalior, India

To maximize your solar PV system's energy output in Gwalior, India (Lat/Long 26.2331, 78.1692) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gwalior, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gwalior, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	32° South in Autumn	41° South in Winter	20° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gwalior, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gwalior, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gwalior, India

Gwalior, located in the central Indian state of Madhya Pradesh, sits within a landscape characterized by diverse topographical features. The city itself is nestled in a valley, flanked by a sandstone plateau that rises prominently to the north. This plateau hosts the historic Gwalior Fort, an imposing structure that stands approximately 300 feet above the surrounding plains. The terrain surrounding Gwalior presents a mixture of flat plains, gentle undulations, and occasional rocky outcrops. To the north and northeast, the landscape gradually transitions into the rugged Vindhya Range, creating a visually striking backdrop to the otherwise predominantly level terrain. The southern and western approaches to the city feature expansive plains that extend toward the neighboring regions of Rajasthan.

Hydrological Features

The Chambal River flows to the west of Gwalior, carving deep ravines in certain sections. These ravines, known locally as "beehad," create a distinctive topographical feature characterized by intricate networks of gullies and ridges. The Sank and Morar rivers also traverse the region, contributing to the agricultural fertility of the surrounding plains. The city experiences a semi-arid climate, which has influenced the natural vegetation and landscape characteristics. The native vegetation consists primarily of drought-resistant species, with thorny scrub forests appearing in patches throughout the region, particularly in areas less suitable for agriculture.

Solar Potential Areas

For large-scale solar photovoltaic installations, the expansive plains to the south and southwest of Gwalior present particularly favorable conditions. These areas benefit from relatively flat terrain, minimal shadowing effects, and good accessibility via existing transportation networks. The land in these directions features fewer settlements and agricultural activities compared to other directions from the city center. The plateau regions to the north, while elevated and receiving abundant sunlight, may present installation challenges due to their rocky terrain and cultural significance (including protected historical sites). However, some sections of the plateau that lack historical structures could be considered for solar development, provided careful environmental and archaeological assessments are conducted. The ravine-affected areas west of the city, toward the Chambal River, present an interesting opportunity. Though topographically complex, these lands are often less suitable for traditional agriculture and could potentially be repurposed for solar installations. The varied angles of the ravine slopes would require careful placement of panels, but some sections could potentially receive optimal sun exposure throughout the day. Areas to avoid would include the fertile agricultural lands along the river valleys, which serve important food production functions, and any locations with significant forest cover or designated as protected natural habitats. Additionally, the eastern approaches to the city have seen increasing urbanization, making large-scale installations less feasible in that direction. The semi-arid climate of the region naturally reduces concerns about excessive cloud cover that might hamper solar energy production. The relatively sparse vegetation in non-agricultural areas also minimizes concerns about shadowing effects on potential solar installations.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
