Haldia, West Bengal, India, located at 22.0597°N, 88.1101°E, offers a promising environment for solar energy generation throughout the year. Situated in the tropics, this location benefits from consistent sunlight and experiences seasons primarily characterized by wet and dry periods rather than significant temperature fluctuations.

Seasonal Solar Performance

The solar energy output in Haldia varies across the meteorological seasons: • Spring: 6.01 kWh/day per kW installed • Summer: 4.45 kWh/day per kW installed • Autumn: 4.34 kWh/day per kW installed • Winter: 4.05 kWh/day per kW installed

Spring stands out as the most productive season for solar energy generation in Haldia, West Bengal, with an impressive output of 6.01 kWh/day per kW installed. This peak performance is likely due to clearer skies and optimal sun angles during this time of year. While the other seasons show lower but still substantial outputs, the relatively small variation between them indicates a stable year-round solar potential.

Optimal Panel Placement

For fixed solar panel installations in Haldia, West Bengal, the ideal tilt angle to maximize year-round energy production is 21 degrees facing South. This angle has been calculated taking into account the location's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data to ensure optimal performance throughout the year.

Environmental Considerations

While Haldia's location is generally favorable for solar energy production, there are some environmental factors to consider. The region experiences a monsoon season, typically from June to September, which can lead to increased cloud cover and potentially reduced solar output. Additionally, the area's proximity to the coast may expose solar installations to salt air, which can accelerate corrosion of equipment if not properly protected.

To mitigate these challenges, several preventative measures can be taken: 1. Use corrosion-resistant materials and protective coatings on solar panels and mounting structures to guard against salt air damage. 2. Implement a regular cleaning schedule to remove salt deposits and other debris that may accumulate on panel surfaces. 3. Install a robust drainage system to prevent water accumulation during heavy monsoon rains. 4. Consider using microinverters or power optimizers to minimize the impact of partial shading from cloud cover on overall system performance.

Despite these considerations, Haldia's consistent sunlight throughout the year and strong spring performance make it a suitable location for solar PV installations, with the potential for significant energy generation when proper precautions are taken.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

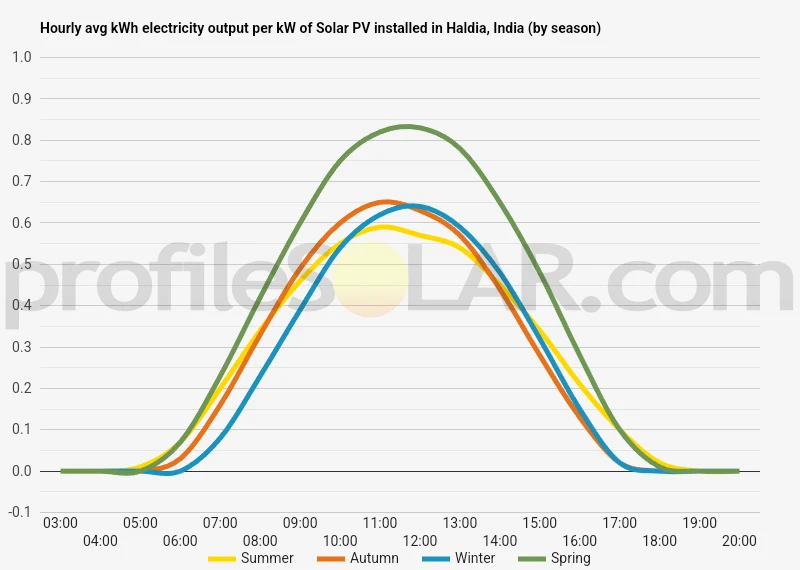

Solar output per kW of installed solar PV by season in Haldia

Seasonal solar PV output for Latitude: 22.0597, Longitude: 88.1101 (Haldia, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° South in Haldia, India

To maximize your solar PV system's energy output in Haldia, India (Lat/Long 22.0597, 88.1101) throughout the year, you should tilt your panels at an angle of 21° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Haldia, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Haldia, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	37° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Haldia, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Haldia, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Haldia, India

The topography around Haldia, India, located at latitude 22.0597 and longitude 88.1101, is characterized by its low-lying coastal plain and deltaic landscape. Situated near the confluence of the Hooghly River and the Bay of Bengal, Haldia and its surrounding areas are predominantly flat with minimal elevation changes. The terrain is composed of alluvial soil deposited by the river over thousands of years, creating a fertile and level landscape. The region surrounding Haldia is part of the larger Ganges Delta, one of the world's largest river deltas. As such, the area is crisscrossed by numerous rivers, channels, and tributaries, forming a complex network of waterways. These water bodies have shaped the local topography, creating natural levees, sandbars, and occasional low-lying marshy areas.

Suitable Areas for Large-Scale Solar PV

When considering areas near Haldia for large-scale solar photovoltaic (PV) installations, several factors come into play. The flat terrain of the region is generally favorable for solar projects, as it reduces the need for extensive land preparation and allows for easier installation and maintenance of solar panels. One of the most suitable areas for large-scale solar PV near Haldia would be the open agricultural lands that lie slightly inland from the coast. These areas typically have good sun exposure and are less prone to flooding compared to locations closer to the river mouths. The regions to the west and northwest of Haldia, such as parts of Purba Medinipur district, offer potential sites for solar installations. Another promising area for solar development could be the slightly elevated lands along the natural levees of the rivers. These areas are less susceptible to waterlogging and provide a stable foundation for solar infrastructure. However, care must be taken to avoid ecologically sensitive zones and prime agricultural lands. It's important to note that while the flat topography is advantageous for solar PV, the region's vulnerability to cyclones and occasional flooding must be considered in the design and implementation of any large-scale solar projects. Elevated structures and robust foundations would be necessary to protect the solar installations from potential water damage and strong winds. In conclusion, the areas surrounding Haldia offer potential for large-scale solar PV development, particularly in the inland agricultural zones and along natural river levees. However, careful site selection, environmental impact assessments, and engineering considerations are crucial to ensure the long-term viability and sustainability of such projects in this unique deltaic landscape.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
