Imphal, Manipur, India, situated at latitude 24.809 and longitude 93.9407, offers a promising location for solar PV energy generation throughout the year. This northern subtropical region experiences consistent solar radiation across all seasons, making it an attractive site for solar power installations.

Seasonal Solar Performance

The solar energy output in Imphal remains relatively stable across seasons, with a notable peak during spring. Here's a breakdown of the expected daily electricity output per kilowatt of installed solar capacity:

• Spring: 5.96 kWh/day
• Autumn: 4.94 kWh/day
• Winter: 4.76 kWh/day
• Summer: 4.73 kWh/day

Spring emerges as the most productive season, with output significantly higher than the rest of the year. The other seasons maintain a fairly consistent performance, with only minor variations between them.

Optimal Panel Positioning

For fixed panel installations in Imphal, Manipur, the ideal tilt angle to maximize year-round solar production is 24 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.

Environmental Considerations

While Imphal's climate is generally favorable for solar energy production, there are a few environmental factors to consider:

1. Monsoon season: Imphal experiences heavy rainfall during the monsoon months (June to September), which could temporarily reduce solar output. To mitigate this, ensure proper waterproofing and drainage systems are in place for the solar installation.

2. Air pollution: The city sometimes faces air quality issues, which can decrease solar panel efficiency. Regular cleaning and maintenance of panels can help maintain optimal performance.

3. Occasional hailstorms: Though rare, hailstorms can damage solar panels. Installing hail guards or using impact-resistant panels can provide added protection.

By addressing these factors during installation and maintenance, Imphal can harness its solar potential effectively, making it a suitable location for year-round solar energy generation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

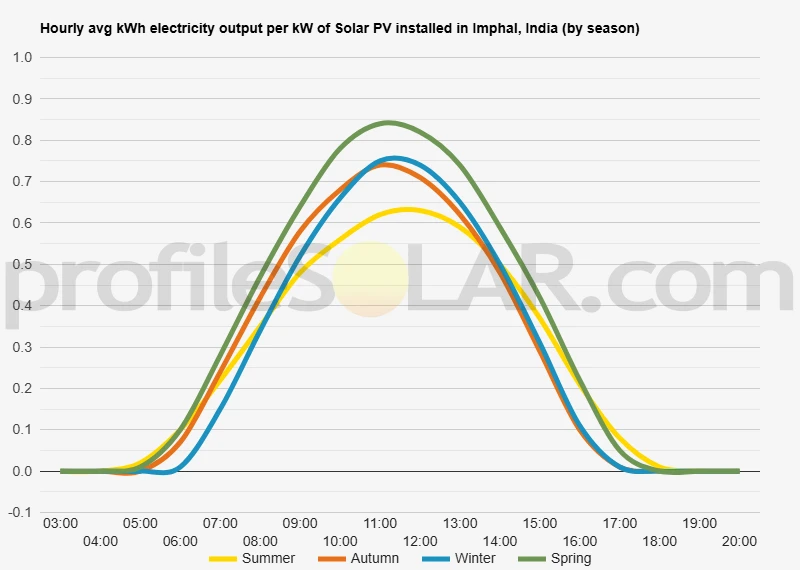

Solar output per kW of installed solar PV by season in Imphal

Seasonal solar PV output for Latitude: 24.809, Longitude: 93.9407 (Imphal, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° South in Imphal, India

To maximize your solar PV system's energy output in Imphal, India (Lat/Long 24.809, 93.9407) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Imphal, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Imphal, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	30° South in Autumn	40° South in Winter	19° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Imphal, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Imphal, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Imphal, India

The topography around Imphal, India, is characterized by a unique blend of landscapes that make it a visually striking and geographically diverse region. Imphal itself is situated in a valley surrounded by rolling hills and mountains, creating a bowl-like formation that has shaped the city's development and the lives of its inhabitants. The Imphal Valley, where the city is located, is a relatively flat area nestled among the hills. This valley is approximately 40 kilometers long and 20 kilometers wide, providing a fertile plain that has been crucial for agriculture in the region. The valley floor sits at an elevation of about 790 meters above sea level, offering a stark contrast to the surrounding elevated terrain.

Surrounding Hills and Mountains

As one moves away from the central valley, the landscape quickly transitions into hilly terrain. These hills gradually increase in elevation, forming a natural barrier around the city. To the east of Imphal, the terrain becomes more rugged, with the Manipur Hills rising to form part of the Indo-Burma Range. These hills are covered in lush forests and are home to diverse flora and fauna. To the west, the Manipur Hills continue, eventually merging with the Naga Hills. This western range is generally lower in elevation compared to the eastern side but still presents a significant change in topography from the valley floor.

Rivers and Water Bodies

The Imphal River, a major waterway in the region, flows through the valley, contributing to its fertility and shaping the local ecosystem. Numerous smaller streams and tributaries crisscross the landscape, creating a network of waterways that have historically been vital for irrigation and transportation.

Potential for Solar PV Installation

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be: 1. The valley floor areas surrounding Imphal city: These flat or gently sloping lands offer the easiest terrain for installation and maintenance of solar panels. However, care must be taken not to encroach on prime agricultural land. 2. South-facing hillsides: The hills surrounding the Imphal Valley, particularly those with southern exposure, could provide excellent locations for solar farms. These elevated areas often receive more direct sunlight and are less likely to be shaded by other geographical features. 3. Degraded or non-forested hill areas: Some of the hilly regions that have been deforested or are not suitable for agriculture could be repurposed for solar energy production. This would need to be balanced with reforestation efforts to maintain ecological stability. 4. Elevated plateaus: If any exist in the surrounding hills, these flat areas at higher elevations could be ideal for solar installations, combining the benefits of flat terrain with increased solar exposure. It's important to note that while the topography around Imphal offers potential for solar PV development, any large-scale installation would need to carefully consider environmental impacts, land use conflicts, and the region's significant rainfall during the monsoon season. Additionally, the sometimes hazy sky conditions due to the surrounding hills may affect solar efficiency, requiring thorough feasibility studies before embarking on major projects.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
