Solar PV Analysis of Jabalpur, India
Jabalpur, Madhya Pradesh, India, situated at 23.1701° N, 79.957° E, presents a favorable location for solar energy generation throughout the year. This tropical city experiences consistent sunlight, with its seasons characterized more by wet and dry periods rather than significant temperature fluctuations.
The solar energy potential in Jabalpur varies across the meteorological seasons, with spring offering the highest output at 6.99 kWh per day for each kilowatt of installed solar capacity. Autumn follows with 5.18 kWh/day, then summer with 4.85 kWh/day, and winter with 4.73 kWh/day. These figures indicate a relatively stable year-round solar energy production, with a notable peak during the spring months.
Optimal Panel Installation
For fixed solar panel installations in Jabalpur, Madhya Pradesh, the ideal tilt angle to maximize year-round energy production is 22 degrees facing South. This angle has been calculated considering the city's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data to account for Earth's elliptical orbit.
Peak Production Periods
The most productive time for solar energy generation in Jabalpur is during the spring season, typically from March to May. This period coincides with longer daylight hours and clearer skies, resulting in higher solar irradiance. The autumn months also show above-average production, making it the second-best season for solar energy harvesting.
Environmental Factors and Mitigation
While Jabalpur's location is generally favorable for solar energy production, there are some environmental factors to consider:
- Monsoon season: Heavy rainfall and cloud cover during the monsoon months (typically June to September) can reduce solar panel efficiency. To mitigate this, ensure proper waterproofing and drainage systems are in place.
- Dust accumulation: Jabalpur's dry periods can lead to dust buildup on solar panels. Regular cleaning and maintenance schedules should be implemented to maintain optimal performance.
By addressing these factors through proper installation techniques and regular maintenance, solar energy systems in Jabalpur can maintain high efficiency and productivity throughout the year.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in India by location

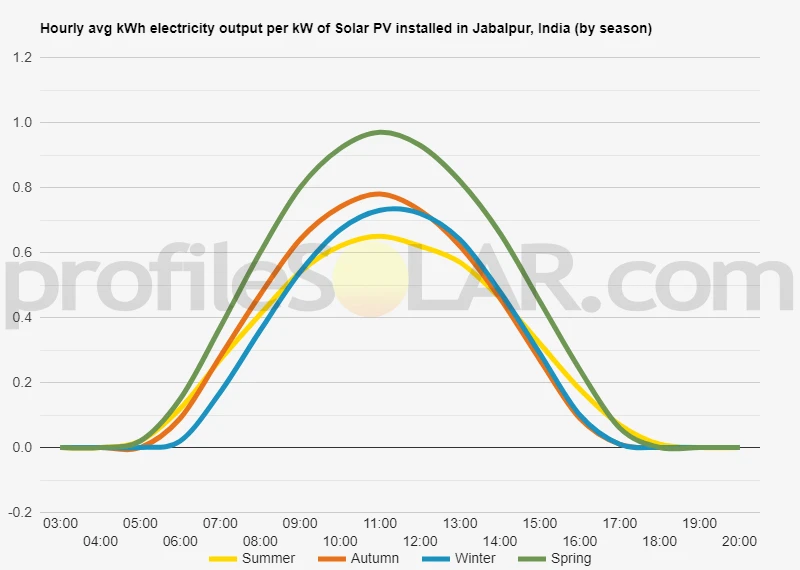

Solar output per kW of installed solar PV by season in Jabalpur
Seasonal solar PV output for Latitude: 23.1701, Longitude: 79.957 (Jabalpur, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 22° South in Jabalpur, India
To maximize your solar PV system's energy output in Jabalpur, India (Lat/Long 23.1701, 79.957) throughout the year, you should tilt your panels at an angle of 22° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Jabalpur, India
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jabalpur, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 7° South in Summer | 29° South in Autumn | 38° South in Winter | 17° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Jabalpur, India
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jabalpur, India.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Jabalpur, India
The topography around Jabalpur, India is diverse and interesting. The city itself sits in a rocky basin surrounded by low hills and ridges. To the north and east of Jabalpur, you'll find the Vindhya Range, a series of modest mountain ranges with elevations typically between 450 to 1,100 meters (1,480 to 3,610 feet) above sea level. These hills are characterized by plateaus, steep escarpments, and valleys.
To the south and west of Jabalpur, the landscape becomes flatter, transitioning into the fertile plains of the Narmada River valley. The Narmada River, one of India's major waterways, flows about 15 kilometers (9 miles) south of the city. This area is known for its rich alluvial soil and is extensively cultivated.
Jabalpur is also famous for its unique marble rock formations along the Narmada River at Bhedaghat, about 20 kilometers (12 miles) west of the city. These towering white cliffs create a stunning gorge through which the river flows.
Areas Suitable for Large-Scale Solar PV
For large-scale solar photovoltaic (PV) installations, the areas most suited would likely be:
1. The plains to the south and west of Jabalpur: These flat or gently rolling areas receive ample sunlight and have fewer obstructions. The open agricultural land in the Narmada valley could potentially accommodate large solar arrays without significant terrain modifications.
2. Elevated plateaus in the Vindhya Range: While more challenging to access, these areas often have high solar irradiance due to their elevation and lack of shade. However, care must be taken to avoid ecologically sensitive zones.
3. Brownfield sites or unused industrial land: Any large, flat areas of unused land near the city could be repurposed for solar installations, benefiting from proximity to existing infrastructure.
It's important to note that while topography is crucial, other factors such as land availability, proximity to the power grid, and local regulations would also play significant roles in determining the best locations for large-scale solar PV projects in the Jabalpur area.
India solar PV Stats as a country
India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in India?
Yes, there are several incentives for businesses wanting to install solar energy in India. These include:
1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.
2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.
3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.
4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.
Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Saturday 12th of October 2024
Last Updated: Monday 21st of July 2025
Tell Us About Your Work
We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
Feeling generous?
Share this with your friends!
Compare this location to others worldwide for solar PV potential
The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.
However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
