Jamnagar, Gujarat, India, situated at latitude 22.4667° N and longitude 70.0644° E, offers a favorable location for solar energy production throughout the year. This tropical region experiences consistent sunlight, with seasons characterized more by wet and dry periods than significant temperature variations.

Seasonal Solar Performance

Solar PV installations in Jamnagar demonstrate robust energy generation across all seasons. Spring stands out as the most productive period, with an impressive 7.37 kWh per day for each kilowatt of installed capacity. Summer follows with 5.43 kWh/day, while winter and autumn maintain respectable outputs of 5.08 kWh/day and 4.92 kWh/day, respectively. The consistent performance across seasons indicates that Jamnagar is well-suited for year-round solar energy production. The peak output in spring suggests that this season offers optimal conditions for solar generation, likely due to clear skies and moderate temperatures.

Optimal Panel Tilt

For fixed solar panel installations in Jamnagar, Gujarat, the ideal tilt angle to maximize year-round energy production is 21 degrees facing south. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit and seasonal variations in solar elevation.

Environmental Considerations

While Jamnagar's climate is generally conducive to solar energy production, there are a few environmental factors to consider: 1. Monsoon season: Heavy rainfall during the monsoon months (typically June to September) may temporarily reduce solar output due to cloud cover and precipitation. 2. Dust accumulation: The region's arid climate can lead to dust buildup on solar panels, potentially decreasing efficiency. To mitigate these factors, several preventative measures can be implemented:

• Install a robust cleaning system to remove dust and debris regularly
• Use anti-soiling coatings on solar panels to reduce dust accumulation
• Implement a slight increase in panel tilt during monsoon season to facilitate natural cleaning by rainwater
• Consider using bifacial solar panels to capture reflected light, potentially offsetting losses during cloudy periods

By addressing these environmental factors, solar installations in Jamnagar can maintain high efficiency and maximize energy production throughout the year, taking full advantage of the location's favorable solar conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

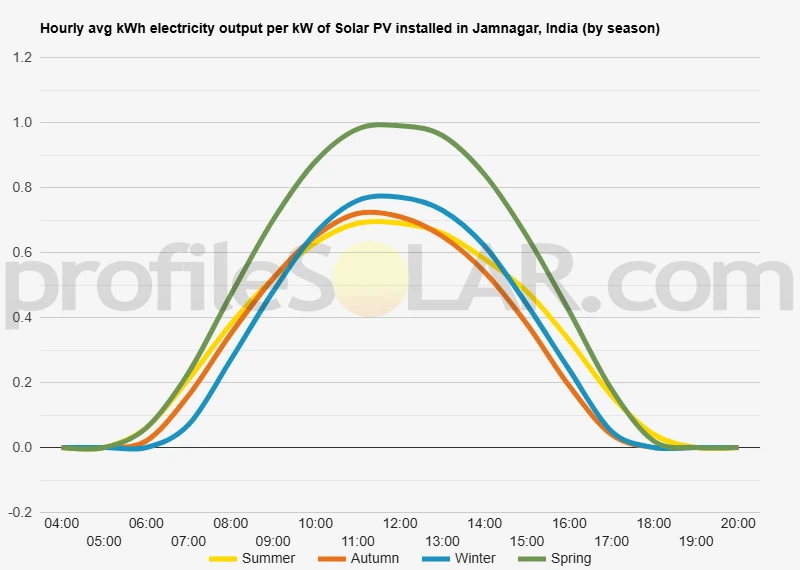

Solar output per kW of installed solar PV by season in Jamnagar

Seasonal solar PV output for Latitude: 22.4667, Longitude: 70.0644 (Jamnagar, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° South in Jamnagar, India

To maximize your solar PV system's energy output in Jamnagar, India (Lat/Long 22.4667, 70.0644) throughout the year, you should tilt your panels at an angle of 21° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jamnagar, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jamnagar, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	29° South in Autumn	37° South in Winter	16° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jamnagar, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jamnagar, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jamnagar, India

The topography around Jamnagar, India, is characterized by a relatively flat coastal plain with some gentle undulations. Located in the western part of Gujarat state, Jamnagar sits near the Gulf of Kutch, which influences its landscape. The area is predominantly low-lying, with elevations generally ranging from sea level to about 50 meters above sea level. The terrain surrounding Jamnagar is a mix of agricultural land, scrubland, and semi-arid regions. To the north and east, the landscape gradually transitions into the more arid Kutch region, known for its salt marshes and desert-like conditions. To the south and west, the land meets the Arabian Sea, creating a coastal environment with beaches, tidal flats, and estuaries.

Suitable Areas for Large-scale Solar PV

The regions surrounding Jamnagar offer several promising locations for large-scale solar photovoltaic (PV) installations. The most suitable areas would be the inland regions to the north and east of Jamnagar city. These areas benefit from several favorable factors: Firstly, they receive abundant sunlight throughout the year, with clear skies for much of the time. This high solar irradiance is crucial for efficient solar power generation. Secondly, the terrain in these directions is generally flatter and less developed, providing ample space for extensive solar arrays without significant land-use conflicts. The semi-arid regions to the northeast, extending towards the Little Rann of Kutch, are particularly well-suited for solar PV projects. These areas have minimal agricultural activity and sparse vegetation, reducing potential environmental impacts. Additionally, the lack of tall structures or geographical features means there are fewer obstacles to cast shadows on solar panels, maximizing their exposure to sunlight. It's worth noting that while coastal areas receive plenty of sunlight, they may be less ideal due to higher humidity levels, potential salt spray, and the risk of cyclones. The inland areas, being slightly elevated and away from immediate coastal influences, offer a more stable environment for solar installations. When considering specific locations, it's important to account for proximity to existing power infrastructure, road access for construction and maintenance, and local land-use regulations. Areas near existing substations or transmission lines could be particularly advantageous, as they would reduce the costs associated with connecting new solar farms to the grid.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
