Solar Energy Potential in Kashipur, Uttarakhand, India

Kashipur, Uttarakhand, India, located in the Northern Sub Tropics at coordinates 29.2211, 78.9606, offers promising conditions for solar PV energy generation throughout the year. The location experiences significant seasonal variations in solar energy production that are worth understanding for anyone considering solar installations in this area. The solar energy output varies considerably across seasons. Spring stands out as the most productive period, generating an impressive 6.81kWh per day for each kilowatt of installed solar capacity. Summer follows with a solid production of 5.70kWh/day, while autumn yields 4.97kWh/day. Winter shows the lowest output at 4.00kWh/day per kW installed, though this is still a reasonable production level compared to many other locations worldwide.

Optimal Panel Installation

For fixed solar panel installations in Kashipur, Uttarakhand, the ideal tilt angle to maximize year-round energy production is 27 degrees facing South. This specific angle has been calculated by analyzing the daily solar elevation patterns at this latitude, weighted by the potential daily PV production based on NASA's solar irradiance data, and accounting for Earth's elliptical orbit.

Environmental and Weather Considerations

Several environmental factors in Kashipur may affect solar energy production:

• Dust and air pollution from nearby industrial activities and agricultural burning can significantly reduce panel efficiency by blocking sunlight.
• Monsoon season brings heavy rainfall and increased cloud cover, temporarily reducing solar output during those periods.
• High summer temperatures, which can occasionally exceed 40°C, may slightly reduce panel efficiency as solar panels typically lose efficiency above 25°C.

To mitigate these challenges, solar installations in Kashipur should incorporate:

• Regular cleaning schedules to remove dust accumulation, potentially using automated cleaning systems for larger installations
• Elevated mounting structures to prevent flooding issues during monsoon season
• Proper ventilation behind panels to minimize temperature-related efficiency losses
• High-quality inverters that can handle temperature fluctuations efficiently

Despite these challenges, Kashipur's location offers excellent solar potential, especially during spring and summer months. The annual average production remains favorable compared to many other regions, making solar PV a viable renewable energy option for this area.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

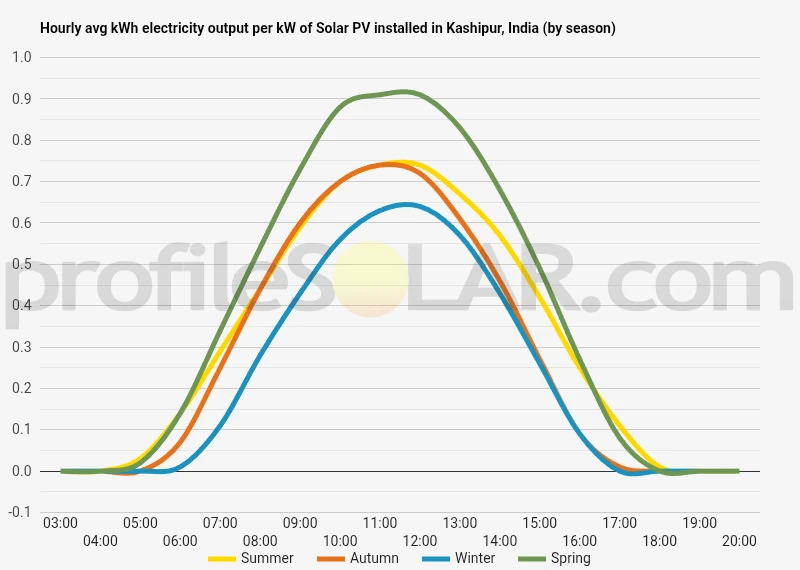

Solar output per kW of installed solar PV by season in Kashipur

Seasonal solar PV output for Latitude: 29.2211, Longitude: 78.9606 (Kashipur, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Kashipur, India

To maximize your solar PV system's energy output in Kashipur, India (Lat/Long 29.2211, 78.9606) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kashipur, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kashipur, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	35° South in Autumn	44° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kashipur, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kashipur, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kashipur, India

The topography around Kashipur, India, offers a diverse landscape that transitions between the plains of Uttarakhand and the foothills of the Himalayan mountain range. Situated in the Udham Singh Nagar district of Uttarakhand, Kashipur lies in what is known as the Terai region, characterized by fertile alluvial plains that gradually rise toward the north into the Shivalik Hills, the southernmost range of the Himalayas. The terrain immediately surrounding Kashipur is predominantly flat to gently undulating, with elevations ranging from approximately 200 to 300 meters above sea level. This relatively level landscape is punctuated by numerous seasonal and perennial water bodies, including the Kosi River that flows near the city. The soil composition in this region is primarily alluvial, deposited over centuries by rivers flowing down from the Himalayan mountains.

Surrounding Geographical Features

Moving northward from Kashipur, the landscape begins to ascend more noticeably into the Shivalik Hills, with elevations increasing to 600-900 meters. These foothills form a natural boundary between the plains and the greater Himalayan ranges beyond. The southern and eastern parts of the region maintain the characteristic flatness of the Gangetic plains, extending toward Moradabad and Rampur. The western areas near Kashipur transition into the more undulating terrain of the Bhabar region, a narrow belt of porous ground consisting of boulders, pebbles, and coarse sand brought down by mountain streams. This zone acts as a natural recharge area for groundwater.

Vegetation and Land Cover

The natural vegetation around Kashipur varies with the topography. The plains are heavily cultivated with agricultural fields dominating the landscape. Patches of tropical moist deciduous forests can be found, particularly in protected areas and toward the foothills. These forests include species such as sal, teak, and various bamboo varieties. As one moves toward the Shivalik Hills, the forest cover becomes denser with subtropical pine forests appearing at higher elevations. This transition in vegetation reflects the gradual change in climate and soil conditions with increasing altitude.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, the flat plains to the south and southeast of Kashipur present the most favorable conditions. These areas offer several advantages for solar energy development: The relatively level terrain minimizes the need for extensive land grading, reducing construction costs and environmental impact. The open plains have minimal natural shading from hills or mountains, allowing for maximum solar exposure throughout the day. Additionally, these areas typically have lower agricultural productivity compared to the fertile riverside lands, making them more suitable for alternative land use. The southwestern plains extending toward Moradabad also present excellent opportunities for solar development. This region experiences minimal cloud cover during most of the year, particularly in the dry winter and spring months, creating ideal conditions for solar energy generation. Areas to avoid would include the northern foothills, where increasing elevation creates varied slopes that can reduce direct sunlight exposure. The riverside areas along the Kosi and other water bodies should also be avoided due to their higher agricultural value, potential for flooding, and importance for local ecosystems.

Accessibility Considerations

The plains around Kashipur benefit from good transportation infrastructure, with national and state highways connecting the region to major urban centers. This accessibility is a significant advantage for solar PV development, as it facilitates the transportation of equipment during construction and maintenance phases. The proximity to existing electrical infrastructure, including transmission lines connecting to the northern grid, further enhances the suitability of these areas for large-scale solar projects, as it reduces the costs associated with connecting new generation capacity to the grid.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
