Solar Energy Potential in Khammam, Telangana, India

Khammam, Telangana, India, located at coordinates 17.2531, 80.1421, presents a promising location for solar PV energy generation throughout the year. Being situated in the tropics, this region benefits from relatively consistent sunlight patterns, though with seasonal variations that affect energy production. The solar electricity output in Khammam shows interesting seasonal patterns. Spring stands out as the most productive season, generating an impressive 6.71 kWh per day for each kilowatt of installed solar capacity. Winter follows with a respectable 5.22 kWh/day, while summer and autumn produce similar outputs at 4.81 kWh/day and 4.79 kWh/day respectively. This seasonal variation indicates that March through May (spring months) offer the most optimal conditions for solar energy production in Khammam. The higher output during spring likely results from clear skies and optimal sun angles during this period. Winter months also perform well, possibly due to cooler temperatures which improve solar panel efficiency, despite shorter days.

Optimal Panel Installation

For maximizing year-round solar energy production in Khammam, Telangana, fixed solar panels should be installed at a tilt angle of 16 degrees facing South. This specific angle has been calculated to capture the optimal amount of solar radiation throughout the year, accounting for the Earth's elliptical orbit and Khammam's tropical latitude.

Environmental and Weather Considerations

Several environmental factors in Khammam may affect solar energy production:

• Monsoon season (June to September) brings heavy rainfall and cloud cover, potentially reducing solar output during summer and early autumn months.
• Dust accumulation is significant in this semi-arid region, which can reduce panel efficiency by up to 25% if not addressed.
• High summer temperatures exceeding 40°C can decrease panel efficiency, as solar panels typically lose efficiency above 25°C.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install an automated cleaning system or implement a regular manual cleaning schedule, especially during the dry season when dust accumulation is highest.
• Consider elevated mounting structures with adequate spacing between panels to allow for natural air circulation, reducing temperature-related efficiency losses.
• Use high-efficiency panels with better temperature coefficients that maintain performance in hot conditions.
• Implement a slight increase in overall system capacity to compensate for reduced output during the monsoon season.
• Consider microinverters or power optimizers to minimize the impact of partial shading from cloud cover during monsoon months.

With proper installation and maintenance addressing these local factors, Khammam offers good potential for solar energy generation, with particularly excellent production during the spring months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

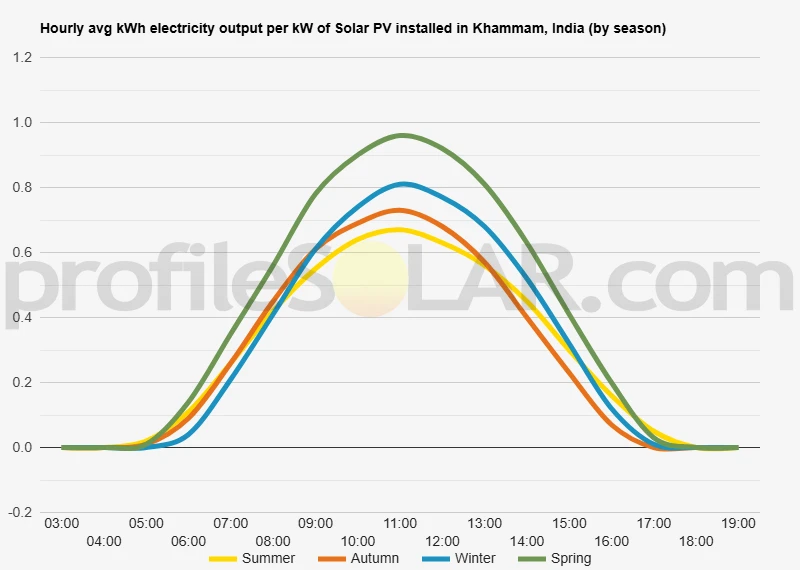

Solar output per kW of installed solar PV by season in Khammam

Seasonal solar PV output for Latitude: 17.2531, Longitude: 80.1421 (Khammam, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° South in Khammam, India

To maximize your solar PV system's energy output in Khammam, India (Lat/Long 17.2531, 80.1421) throughout the year, you should tilt your panels at an angle of 16° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Khammam, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Khammam, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	23° South in Autumn	32° South in Winter	11° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Khammam, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Khammam, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Khammam, India

Khammam is situated in the southeastern region of Telangana state in India, characterized by a diverse topographical landscape that transitions between plains, rolling hills, and river valleys. The city itself lies at an elevation of approximately 107 meters above sea level, nestled within a broader region that features varying terrain.

Regional Topography

The topography around Khammam is predominantly marked by gently undulating plains interspersed with scattered hillocks. To the east of Khammam, the terrain gradually rises toward the Eastern Ghats mountain range, creating a more rugged landscape with isolated hills and ridges. These hills are typically composed of ancient rock formations, primarily granite and gneiss, which are characteristic of the Deccan Plateau region. The western and southern portions of the Khammam district feature relatively flatter terrain, with expansive plains that have been shaped by the river systems flowing through the area. The most significant river influencing the topography is the Munneru River, a tributary of the Krishna River, which has carved valleys and deposited alluvial soils along its course.

Hydrological Features

The Godavari River flows along the northern boundary of the broader Khammam region, creating fertile valleys and influencing the overall drainage pattern. Several smaller streams and tributaries crisscross the landscape, creating natural drainage channels that have shaped the local topography over millennia. The region also contains several reservoirs and irrigation tanks that dot the landscape, many of which were constructed to harness water resources for agricultural purposes. These water bodies create local variations in the terrain and influence the surrounding microclimate.

Soil and Vegetation

The soils around Khammam vary from rich alluvial deposits in river valleys to red and black cotton soils in the plains and upland areas. These soil variations reflect the underlying geological formations and weathering processes that have occurred over time. The natural vegetation consists primarily of tropical dry deciduous forests, particularly in the hilly eastern portions. However, much of the original forest cover has been cleared for agriculture, leaving patches of forest interspersed with cultivated land.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas around Khammam present favorable conditions: The western plains of Khammam district offer extensive flat terrain with minimal shading obstacles, making them ideal for large solar arrays. These areas have good road connectivity for construction and maintenance access, while their relatively sparse population density means less competition for land use. The gently sloping areas to the south of Khammam city present another opportunity for solar development. These locations receive abundant solar radiation and have favorable topography that allows for efficient arrangement of solar panels with minimal earthwork requirements. Some of the elevated plateaus in the eastern part of the district, where agricultural productivity is lower due to thinner soil profiles, could be repurposed for solar installations. These higher elevation sites often experience less atmospheric dust and haze, potentially improving solar panel efficiency. Areas near existing power infrastructure, particularly along the major road corridors connecting Khammam to Vijayawada and Hyderabad, would minimize transmission losses and infrastructure development costs. The relatively stable ground conditions in these areas would also reduce foundation requirements for mounting structures. It's worth noting that while the region experiences seasonal monsoon rains, the overall climate remains favorable for solar energy production throughout most of the year. The varied topography actually provides developers with flexibility to select optimal sites based on specific project requirements and constraints.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
