Solar Energy Potential in Kuttikkanam, India

Kuttikkanam, located in the Kerala state of India, presents a promising location for solar energy production with consistent year-round potential. This tropical location experiences relatively steady sunlight throughout the year, with seasons defined more by rainfall patterns than temperature variations. The solar energy generation potential in Kuttikkanam shows interesting seasonal variations. Spring emerges as the most productive season with an impressive 6.32 kWh per day for each kilowatt of installed solar capacity. Winter follows closely behind with 6.12 kWh/day, demonstrating that the cooler months actually offer excellent solar generating conditions in this region. Summer yields 5.24 kWh/day, while autumn shows the lowest production at 4.77 kWh/day per installed kilowatt.

Optimal Panel Installation

For maximum year-round solar energy production in Kuttikkanam, fixed solar panels should be installed at a 9-degree tilt facing South. This specific angle has been calculated to optimize annual solar generation based on Kuttikkanam's particular latitude and the sun's position throughout the year.

Environmental and Weather Considerations

Several significant factors could impact solar production in Kuttikkanam:

• Heavy monsoon rainfall: Kerala experiences intense monsoon seasons that can reduce solar efficiency through cloud cover and direct rainfall. Installing panels with excellent drainage systems and water-resistant components is essential.
• High humidity levels: The tropical climate creates persistent humidity that can accelerate corrosion of mounting hardware and electrical connections. Using marine-grade materials and proper sealing can mitigate these effects.
• Vegetation growth: The lush tropical environment means faster vegetation growth that could shade panels. Regular maintenance and strategic placement away from tall trees are recommended.
• Dust accumulation: Seasonal dust, especially during dry periods, can reduce panel efficiency. Implementing automated cleaning systems or regular maintenance schedules can address this issue.

Seasonal Planning

Energy production planning should capitalize on the spring and winter months when output is highest. These periods could be ideal for energy-intensive activities or for storing excess energy if battery systems are installed. The slightly lower production during summer and autumn might require supplementary energy sources or conservation measures during peak demand periods. Despite the seasonal variations, Kuttikkanam's consistent year-round solar potential makes it a viable location for solar PV installations, especially when compared to locations at higher latitudes that experience more dramatic seasonal fluctuations in sunlight.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

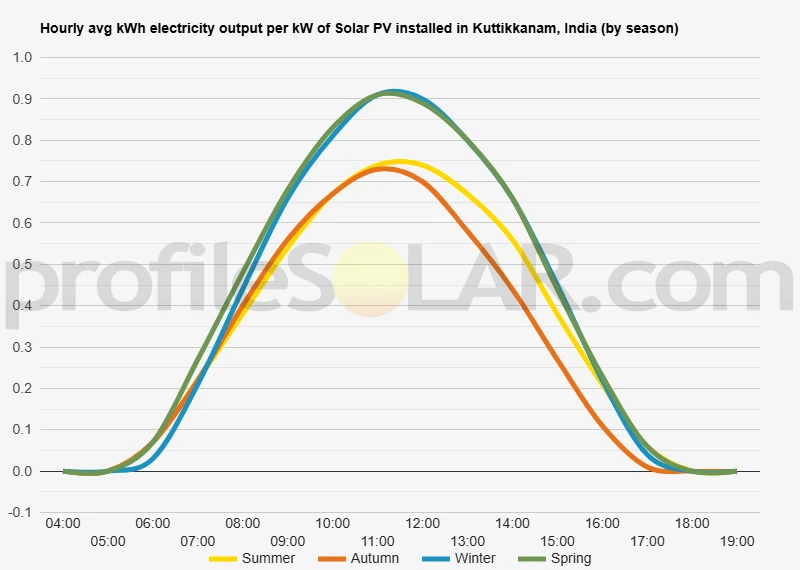

Solar output per kW of installed solar PV by season in Kuttikkanam

Seasonal solar PV output for Latitude: 9.5766, Longitude: 76.9675 (Kuttikkanam, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° South in Kuttikkanam, India

To maximize your solar PV system's energy output in Kuttikkanam, India (Lat/Long 9.5766, 76.9675) throughout the year, you should tilt your panels at an angle of 9° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kuttikkanam, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kuttikkanam, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	15° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kuttikkanam, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kuttikkanam, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kuttikkanam, India

The terrain surrounding Kuttikkanam in Kerala, India presents a distinctive highland landscape characteristic of the Western Ghats mountain range. Situated at an elevation of approximately 1,100 meters above sea level, Kuttikkanam features undulating hills, steep slopes, and verdant valleys. The topography is predominantly mountainous, with significant variations in elevation throughout the region. Dense forest cover blankets much of the landscape, interspersed with tea and spice plantations that have been established on the gentler slopes.

Topographical Features

The Western Ghats formation in this area creates a series of ridges and valleys running roughly parallel to the Arabian Sea coastline, which lies about 75 kilometers to the west. Kuttikkanam itself sits on a plateau-like area surrounded by higher peaks and ridges. The terrain generally slopes from east to west, with numerous streams and small waterfalls cutting through the landscape, especially during the monsoon season. These waterways eventually feed into larger river systems that flow westward toward the Kerala coast. The soil composition varies across the region, with rich, fertile soil in the valleys and thinner soil layers on the steeper slopes. Rocky outcrops are common on the higher elevations and along ridgelines. The combination of elevation, slope aspect, and forest cover creates numerous microclimates throughout the area.

Solar PV Suitability in Surrounding Areas

For large-scale solar photovoltaic installations, the most suitable areas near Kuttikkanam would be found in the lower-elevation regions to the west, particularly as one moves toward Kottayam district. These areas offer several advantages: The western slopes and foothills descending from Kuttikkanam provide more open terrain with gentler gradients, making construction and maintenance of solar arrays more feasible. As elevation decreases, the land becomes less steep and more accessible for development. Several cleared agricultural areas and plantations in the lower elevations present potential sites that would require minimal forest clearing, reducing environmental impact. The transition zones between the highlands and midlands of Kerala, approximately 15-30 kilometers west of Kuttikkanam, offer a compromise between adequate solar exposure and practical terrain conditions. The Peerumade-Vandiperiyar corridor, southeast of Kuttikkanam, contains some plateau areas with existing agricultural clearings that could potentially accommodate solar installations. These areas benefit from relatively flat terrain while still maintaining the elevation advantages.

Topographical Challenges

Despite these potential areas, several topographical factors present challenges for solar development in the immediate vicinity of Kuttikkanam: The steep slopes that characterize much of the region would require significant terracing or specialized mounting systems for solar arrays, increasing installation costs and environmental disruption. The dense forest cover would necessitate clearing, which raises environmental concerns given the ecological importance of the Western Ghats. The numerous streams and seasonal waterways create natural divisions in the landscape that would complicate site planning and potentially increase the risk of erosion or flooding around solar installations. The high elevation areas also experience more frequent cloud cover and fog, which can reduce solar efficiency. The most pragmatic approach for large-scale solar development would likely involve targeting the transitional zones between the highlands of Kuttikkanam and the midlands to the west, where the balance of topographical suitability, land availability, and solar exposure is more favorable.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
