Solar Energy Potential in Machilipatnam, India

Machilipatnam, located in the Krishna district of Andhra Pradesh, India, presents a promising location for solar photovoltaic (PV) energy generation throughout the year. This coastal town situated at 16.1855° N, 81.1335° E demonstrates relatively consistent solar energy potential across seasons with some notable seasonal variations. The location shows strong solar generation capabilities in all four meteorological seasons. Spring stands out as the most productive period, yielding an impressive 6.78 kWh per day for each kilowatt of installed solar capacity. Winter and summer follow with similar outputs of 5.16 kWh/day and 5.14 kWh/day respectively. Autumn experiences a slight dip but still maintains a respectable 4.55 kWh/day per installed kilowatt. For those considering solar installation in Machilipatnam, the optimal configuration for fixed solar panels would be a tilt angle of 15 degrees facing South. This specific angle has been calculated to maximize the total annual energy harvest from the installation, taking into account the location's latitude and seasonal solar patterns.

Seasonal Considerations

Spring emerges as the standout season for solar generation in Machilipatnam, producing approximately 32% more energy than during the autumn months. This makes March through May particularly valuable for solar energy collection. The relatively consistent output during winter and summer indicates that the location benefits from its tropical position with fairly stable solar conditions throughout much of the year.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar production in Machilipatnam:

• Monsoon cloud cover: Being on India's eastern coast, Machilipatnam experiences significant monsoon rainfall, particularly during the southwest monsoon (June-September) and northeast monsoon (October-December), which can reduce solar efficiency through cloud cover.
• Coastal humidity and salt exposure: Proximity to the Bay of Bengal means higher humidity and salt-laden air that can accelerate corrosion of solar equipment.
• Cyclonic storms: The region is vulnerable to tropical cyclones, particularly during October-December and April-June.
• Dust accumulation: Agricultural activities and seasonal dry periods can contribute to dust buildup on panels.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures can be implemented: Using corrosion-resistant mounting systems and components is essential for coastal installations. Regular panel cleaning schedules should be established, particularly before and after monsoon seasons. Installing panels with higher IP (Ingress Protection) ratings will provide better protection against moisture and dust intrusion. For areas prone to cyclonic activity, reinforced mounting structures engineered to withstand high winds should be considered. Additionally, implementing a slight increase in the recommended tilt angle might help with natural cleaning through rainfall runoff, reducing dust accumulation issues. Overall, Machilipatnam offers favorable conditions for solar PV installations with proper planning and preventative measures to address regional environmental factors.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

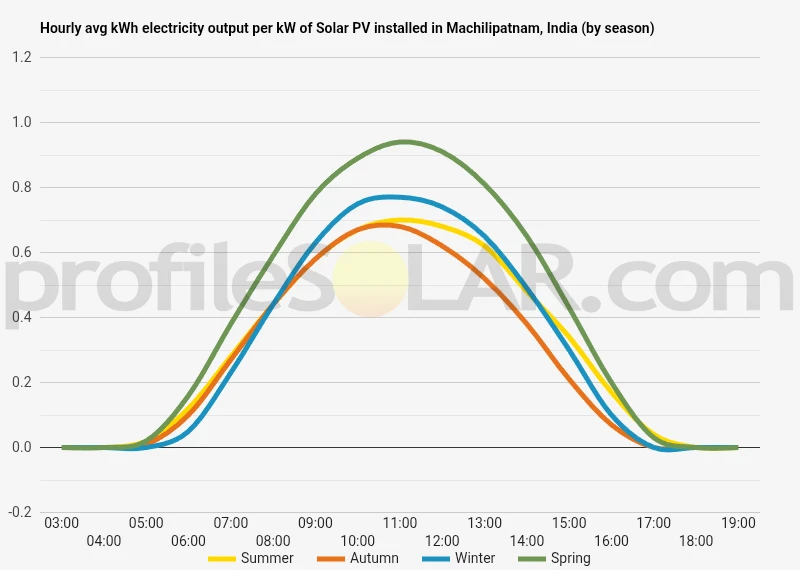

Solar output per kW of installed solar PV by season in Machilipatnam

Seasonal solar PV output for Latitude: 16.1855, Longitude: 81.1335 (Machilipatnam, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° South in Machilipatnam, India

To maximize your solar PV system's energy output in Machilipatnam, India (Lat/Long 16.1855, 81.1335) throughout the year, you should tilt your panels at an angle of 15° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Machilipatnam, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Machilipatnam, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
0° in Summer	22° South in Autumn	31° South in Winter	10° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Machilipatnam, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Machilipatnam, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Machilipatnam, India

Machilipatnam is a coastal city in the Krishna district of Andhra Pradesh, India. The topography of the region is predominantly flat with minimal elevation changes, characteristic of the Krishna River delta where the city is situated. This deltaic plain extends across much of the surrounding area, creating a vast expanse of low-lying land that gradually slopes toward the Bay of Bengal. The terrain around Machilipatnam consists primarily of alluvial soil deposited by the Krishna River over millennia. This has resulted in fertile plains that have traditionally been used for agriculture, particularly rice cultivation. The elevation rarely exceeds 10 meters above sea level across most of the region, with some areas lying almost at sea level.

Coastal Features

The immediate coastline near Machilipatnam features sandy beaches and occasional mudflats. The shoreline is relatively straight with few significant natural harbors, though Machilipatnam itself has historically served as a port city. Coastal vegetation includes scattered mangrove patches, particularly in areas where backwaters and estuarine conditions prevail. Moving slightly inland, the landscape transitions to flat agricultural plains interspersed with numerous irrigation channels, small ponds, and seasonal wetlands. During monsoon seasons, some low-lying areas may experience temporary flooding, especially in regions closest to the Krishna River distributaries.

Potential for Solar PV Development

For large-scale solar photovoltaic (PV) installations, the areas most suitable would be the inland plains that lie approximately 15-30 kilometers west and southwest of Machilipatnam. These regions maintain the flat topography advantageous for solar farms while being sufficiently elevated to avoid the flood-prone zones closer to the coast. The agricultural plains between Machilipatnam and Gudivada offer particularly promising conditions for solar development. These areas feature minimal shading obstacles, good drainage compared to coastal zones, and existing road infrastructure that could facilitate construction and maintenance of solar installations. The land extending toward Avanigadda in the north and toward Bantumilli in the southwest also presents favorable topographical conditions. These regions have relatively stable soil conditions and fewer seasonal wetlands compared to areas directly adjacent to river channels.

Topographical Considerations

When evaluating specific sites for solar PV development, several topographical factors merit consideration. The flat terrain minimizes earthwork requirements for construction but necessitates careful drainage planning. The alluvial soil, while generally stable, may require appropriate foundation designs for solar mounting structures. Areas immediately adjacent to the coast should be avoided due to potential exposure to cyclonic weather, storm surges, and salt spray that could degrade solar equipment. Similarly, the lowest-lying areas within the Krishna delta that experience regular inundation during monsoon seasons would present challenges for year-round operation. The optimal zones from a topographical perspective would be the slightly elevated plains that benefit from the region's flat character without the complications of coastal proximity or seasonal flooding. These areas combine minimal grading requirements with reduced flood risk, creating favorable conditions for large-scale solar development in the Machilipatnam region.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
