Location estimate

Mandi

Himachal Pradesh · India

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.14

kWh/day

Autumn

4.95

kWh/day

Winter

4.05

kWh/day

Spring

6.63

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Mandi, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.14 6.14 × 1 kWp = 6.14 kWh/day
Autumn 4.95 4.95 × 1 kWp = 4.95 kWh/day
Winter 4.05 4.05 × 1 kWp = 4.05 kWh/day
Spring 6.63 6.63 × 1 kWp = 6.63 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.14
Autumn · kWh/day
4.95
Winter · kWh/day
4.05
Spring · kWh/day
6.63

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 29 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
29°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
15°South
Autumn
Sep, Oct, Nov
38°South
Winter
Dec, Jan, Feb
47°South
Spring
Mar, Apr, May
25°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Mandi, Himachal Pradesh, India.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 15 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

15° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 38 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

38° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 47 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

47° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 25 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

25° tilt · South

Illustrative direction; exact azimuth not recorded.

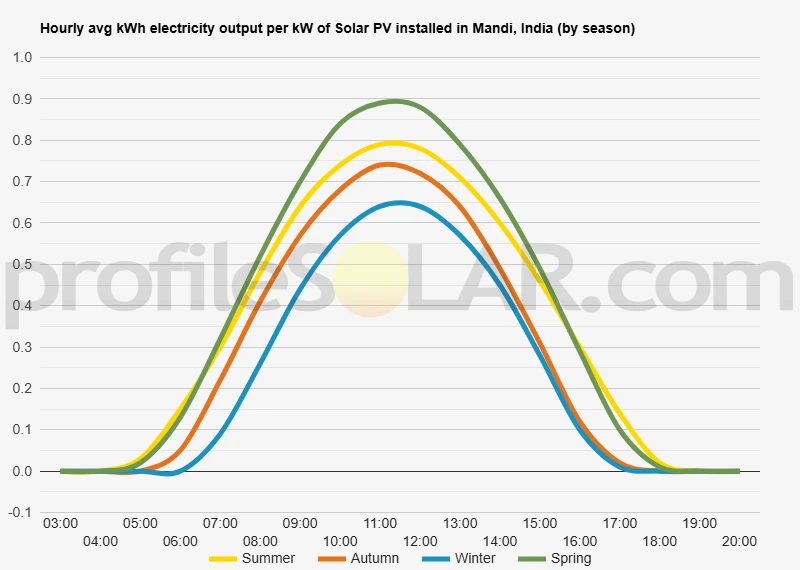

Historical hourly-by-season solar output chart for Mandi, India. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Mandi, India

Hourly profiles by season — Mandi, India · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Mandi, India · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Mandi

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 3.14 m

Proportional side viewDesign sun: ≈ 34.84° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 1.39 m
Added margin
≈ 0 m
Gap including margin
≈ 1.39 m
Panel horizontal footprint
≈ 1.75 m
Panel vertical rise
≈ 0.97 m
Pitch before margin
≈ 3.14 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
29°
Added margin
0 m
Latitude from the catalogue
31.712600000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.7492394142787915 m
Panel vertical rise
0.9696192404926741 m
Calculated clear gap
1.3931466321733879 m
Pitch before margin
3.142386046452179 m
Gap including margin
1.3931466321733879 m
Row pitch including margin
3.142386046452179 m
Design solar elevation
34.837617153186365°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Mandi

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Mandi's solar reference reaches its maximum in spring rather than summer. Estimated average daily generation per kW of rated installed capacity is 6.14 kWh/day in summer, 4.95 kWh/day in autumn, 4.05 kWh/day in winter and 6.63 kWh/day in spring. Summer follows spring, while winter is the lowest season. The profile retains a substantial winter contribution, although it remains below the brighter-season figures.

Read the full article

The Beas valley is central to the local setting. Himachal Pradesh's district account places Mandi town on the river and describes the wider district as mountainous, divided by ranges and transverse spurs. The contrast between a river-bank location and the enclosing slopes matters to solar exposure. A broad seasonal resource can coexist with a restricted local horizon. The fixed reference is 29° facing South. This is a broad output-weighted angle from simplified solar geometry. It should be compared with the actual roof pitch and skyline rather than treated as an exact optimum for every property. The seasonal values do not estimate gains from adjusting tilt, and a south-facing surface can still be shaded by terrain or nearby structures. Spring's leading figure is useful when comparing generation with use through the year. It should not be attributed to a single local weather mechanism on the basis of the seasonal totals alone. Likewise, the summer number does not establish that output remains steady through rainy periods. A building assessment should combine the profile with its actual horizon and the timing of electricity demand. For Mandi, a survey of the valley-side skyline is particularly useful: record the direction and height of nearby ridges, as well as trees and neighboring roofs. That observation helps distinguish morning, midday and afternoon exposure. It also supplies a firmer basis for design than generic claims that special panels or smart electronics will overcome mountain shadows.

Topography around Mandi

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Mandi's town setting is on the Beas River within a much more rugged district. The state Planning Department describes the Beas as running for much of its course between high banks, with swift flow particularly during rains. Its district account identifies the Suketi among the river's southern-bank tributaries. This river-and-slope setting should be retained without describing all valley ground as broad, flat construction land.

Read the full topography description

The district's relief is organized by ranges and numerous transverse spurs. The Jalori range separates the Beas and Satluj drainage systems, while the Nargu range lies north of the Beas. Other ridges include gentler stretches, so the district contains real variation rather than a simple rule that one compass sector is easy and another steep. These are regional features, not a surveyed description of every slope around the bound town point. For a roof, the key terrain information is the skyline seen from that surface. A ridge can block the lower seasonal sun even when a roof faces South; a higher or more open roof may have a different exposure a short distance away. A horizon survey is therefore a useful companion to the recorded generation figures. At ground level, river position and slope also affect water movement, access and foundation questions. A lower, flatter patch may receive runoff from steep land above it, while a hillside layout can require changes to row spacing and earthworks. The actual watercourse and the slope must be examined together. Describing a valley as less steep does not establish that it is outside flood influence or available for development. Mandi's terrain gives good reasons to examine a particular roof or parcel carefully. It does not support an inventory of preferred southwestern valleys or plateaus. The useful local picture is a settled river corridor enclosed by varied mountainous relief, with the seasonal resource interpreted through the exact installation's horizon.

Technical location reference

Approximate map point used for Mandi, India

This coordinate is the calculation reference for Mandi, India. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
31.712600000000000000, 76.932800000000000000
Originally displayed coordinate
lat31.7126 / long76.9328

How the estimate works

How this Mandi estimate was calculated

Here is how I calculated the location estimate for Mandi, India.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Mandi Location estimate includes and leaves out

Use the Mandi figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
