Solar Energy Potential in Mavelikkara, Kerala, India

Mavelikkara, Kerala, India, located at 9.2601° N, 76.5487° E, presents a favorable location for solar energy generation throughout the year. This tropical location benefits from consistent sunlight patterns, with seasonal variations primarily characterized by wet and dry periods rather than dramatic changes in daylight hours. The solar electricity output at Mavelikkara demonstrates strong potential across all meteorological seasons. Spring shows the highest production at 6.32 kWh per day for each kilowatt of installed solar capacity, closely followed by winter with 6.12 kWh/day. Summer and autumn offer slightly lower but still substantial outputs of 5.24 kWh/day and 4.77 kWh/day respectively. For maximum efficiency with fixed solar panel installations in Mavelikkara, Kerala, panels should be tilted at 9 degrees facing South. This specific angle has been calculated to optimize year-round solar energy capture based on the location's position relative to the sun's path throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Mavelikkara:

• Monsoon seasons bring heavy rainfall, particularly during the southwest monsoon (June-September) and northeast monsoon (October-December), which can reduce solar output due to cloud cover.
• High humidity levels typical of tropical regions can cause dust and particulates to adhere more readily to panel surfaces, potentially reducing efficiency.
• Occasional tropical storms may bring debris that could damage installations if not properly secured.

To mitigate these challenges, solar installations in Mavelikkara should incorporate several preventative measures:

Recommended Installation Practices

Installing panels with slightly steeper angles than the optimal 9 degrees can help with natural cleaning during rainfall events. Additionally, implementing regular cleaning schedules during the dry season will maintain maximum efficiency. Robust mounting systems designed to withstand tropical storm conditions are essential, as is selecting solar panel models with high humidity tolerance and anti-soiling coatings. A monitoring system that tracks performance can help identify when cleaning or maintenance is required, especially following extended periods of monsoon weather when organic growth and mineral deposits may accumulate. With these considerations addressed, Mavelikkara's consistent solar radiation throughout the year makes it a promising location for solar PV installations, with winter and spring offering particularly excellent generation potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

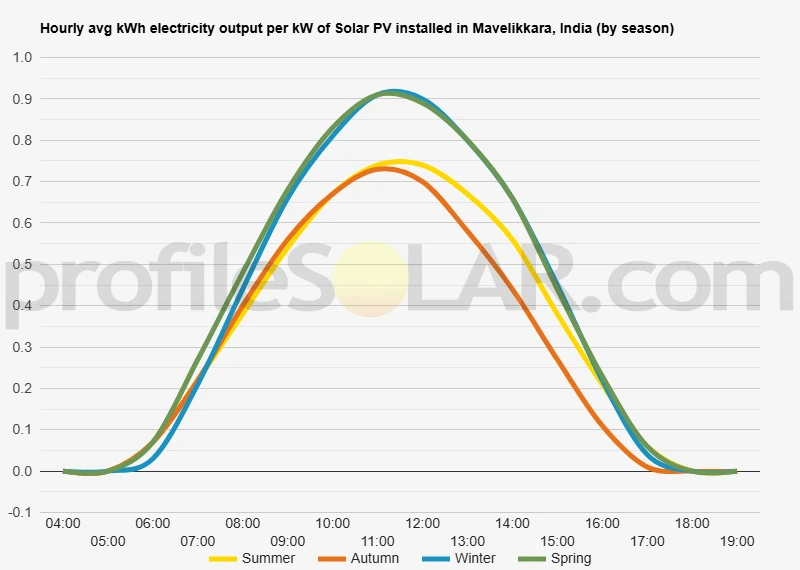

Solar output per kW of installed solar PV by season in Mavelikkara

Seasonal solar PV output for Latitude: 9.2601, Longitude: 76.5487 (Mavelikkara, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° South in Mavelikkara, India

To maximize your solar PV system's energy output in Mavelikkara, India (Lat/Long 9.2601, 76.5487) throughout the year, you should tilt your panels at an angle of 9° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mavelikkara, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mavelikkara, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	15° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mavelikkara, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mavelikkara, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mavelikkara, India

Mavelikkara, situated in the southern state of Kerala in India, presents a distinctive topographical landscape that reflects the broader geographical features of the region. The area around Mavelikkara is characterized by gently undulating terrain with low-lying plains interspersed with small hillocks. This region forms part of the midlands of Kerala, transitioning between the higher elevations of the Western Ghats to the east and the coastal lowlands to the west. The immediate vicinity of Mavelikkara consists predominantly of flat to slightly rolling terrain with elevations typically ranging between 10 to 30 meters above sea level. The landscape is crisscrossed by numerous small rivers, streams, and irrigation channels, with the Achankovil River being a significant water body flowing near the town. These waterways have shaped the local topography over millennia, creating fertile alluvial plains that have traditionally supported intensive agriculture.

Vegetation and Land Use

The natural vegetation around Mavelikkara has been substantially modified by human activities over centuries. The original tropical vegetation has largely given way to agricultural landscapes dominated by coconut plantations, paddy fields, and various other crops. Scattered patches of dense vegetation exist, particularly along waterways and in areas less suitable for cultivation. This mixed landscape of agriculture and settlements creates a mosaic pattern when viewed from above.

Potential for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas near Mavelikkara offer favorable conditions. The relatively flat terrain to the northeast and east of Mavelikkara presents opportunities for solar development, as these areas generally have fewer dense settlements and more open spaces. These locations would require minimal land grading, reducing installation costs and environmental impact. Areas that have been previously cleared for agriculture but are now less productive could be ideal candidates for solar conversion. The slightly elevated regions to the southeast of Mavelikkara might offer additional advantages by reducing the risk of seasonal flooding, which can be a concern in the lower-lying areas during the monsoon season.

Topographical Considerations

When assessing specific sites for solar PV installations near Mavelikkara, several topographical factors merit consideration. The gentle slopes found in the eastern periphery of the region would provide natural drainage during heavy rainfall events, potentially reducing maintenance issues. These areas also tend to have fewer water bodies, minimizing land use conflicts and environmental concerns related to wetland conservation. The southwestern areas closer to the coast have extremely flat terrain but may face higher humidity levels and occasional flooding risks. These factors could potentially affect the efficiency and longevity of solar equipment. The northwestern zones, while accessible, contain more densely populated settlements and intensively cultivated lands, which might present land acquisition challenges for large-scale installations.

Soil and Geological Aspects

The soil composition around Mavelikkara varies but generally consists of lateritic soils in the slightly elevated areas and alluvial soils in the river plains. The lateritic regions might offer better foundation conditions for solar mounting structures due to their improved drainage and stability characteristics. These areas typically correspond with the gently rolling terrain found to the east and northeast of Mavelikkara. The geological stability of the region is generally favorable for infrastructure development, with limited seismic activity. This reduces concerns about ground movement that might affect the alignment of solar panels over time. The underlying rock formations provide solid foundations for mounting structures, particularly in the slightly elevated areas away from the major water courses.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
