Udaipur, Rajasthan, India, located at 24.5854° N, 73.7141° E in the Northern Sub Tropics, offers a favorable environment for solar PV energy generation throughout the year. The city experiences varying levels of solar output across different seasons, providing a consistent source of renewable energy.

Seasonal Solar Performance

Solar PV systems in Udaipur demonstrate robust performance across all seasons. Spring stands out as the most productive period, with an impressive daily output of 7.33 kWh per kW of installed capacity. Summer follows with 5.51 kWh/day, while autumn and winter maintain respectable outputs of 4.85 kWh/day and 4.74 kWh/day, respectively.

Optimal Panel Positioning

To maximize year-round solar energy production in Udaipur, Rajasthan, fixed solar panels should be tilted at a 23-degree angle facing south. This optimal tilt ensures the panels capture the most sunlight throughout the year, accounting for the city's latitude and the Earth's elliptical orbit.

Peak Generation Periods

The most ideal time for solar energy generation in Udaipur is during the spring months, typically from March to May. This period offers the highest daily output, making it an excellent time for peak energy production. The summer months also provide strong solar potential, despite the slightly lower output compared to spring.

Environmental Considerations

While Udaipur's climate is generally conducive to solar energy production, there are a few environmental factors to consider:

• Dust and air pollution: Udaipur can experience periods of increased dust and air pollution, which may accumulate on solar panels and reduce their efficiency.
• Monsoon season: The region experiences a monsoon season, typically from July to September, which can lead to increased cloud cover and potentially reduced solar output.

Preventative Measures

To mitigate these environmental challenges and ensure optimal solar energy production, several preventative measures can be implemented:

1. Regular cleaning: Establish a routine cleaning schedule for solar panels to remove dust and pollutants, maintaining their efficiency.

2. Weather-resistant installations: Use high-quality, weather-resistant solar panels and mounting systems designed to withstand monsoon conditions and heavy rainfall.

3. Smart inverter technology: Implement advanced inverter systems that can optimize energy production even during periods of partial shading or reduced sunlight.

By considering these factors and implementing appropriate measures, solar PV installations in Udaipur can harness the region's abundant solar resources effectively, providing a reliable source of renewable energy throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

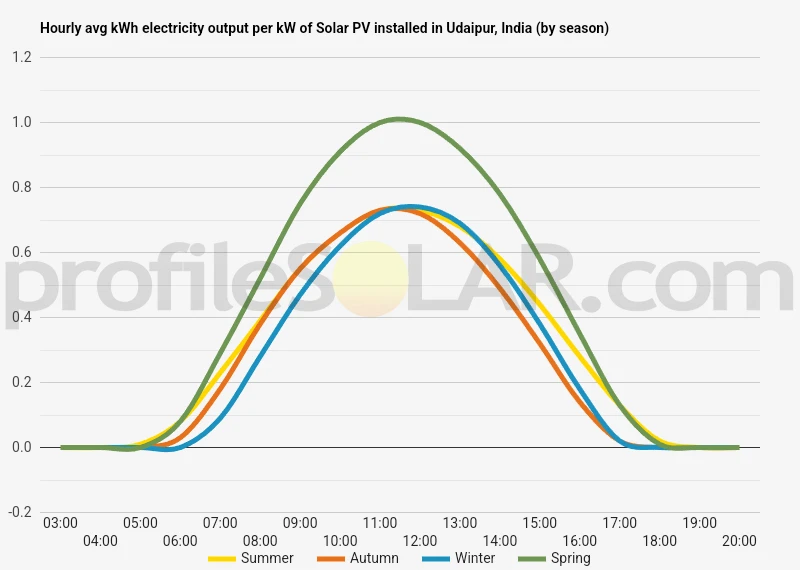

Solar output per kW of installed solar PV by season in Udaipur

Seasonal solar PV output for Latitude: 24.5854, Longitude: 73.7141 (Udaipur, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in Udaipur, India

To maximize your solar PV system's energy output in Udaipur, India (Lat/Long 24.5854, 73.7141) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Udaipur, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Udaipur, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	31° South in Autumn	39° South in Winter	18° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Udaipur, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Udaipur, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Udaipur, India

Udaipur, often called the "City of Lakes," is nestled in the Aravalli Range in the southern part of Rajasthan, India. The topography surrounding this picturesque city is characterized by a diverse landscape that includes hills, valleys, and plateaus. The Aravalli Range, one of the oldest mountain ranges in the world, dominates the region's topography. These ancient hills create a rugged and undulating terrain around Udaipur, with elevations ranging from about 500 to 1,000 meters above sea level. The hills are generally rounded and weathered, covered with sparse vegetation and rocky outcrops. Interspersed among the hills are numerous valleys and small plateaus. These areas often feature fertile soil and are used for agriculture. The landscape is dotted with several natural and artificial lakes, including the famous Lake Pichola, which adds to the region's scenic beauty and provides water resources for the local population.

Suitable Areas for Large-Scale Solar PV

When considering areas near Udaipur for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have ample sunlight exposure, relatively flat terrain, and minimal environmental impact. The arid regions to the west and southwest of Udaipur present promising opportunities for solar PV development. These areas, part of the Thar Desert, receive abundant sunlight throughout the year and have vast expanses of flat, unused land. The districts of Barmer and Jaisalmer, although slightly farther from Udaipur, are particularly well-suited for large-scale solar projects due to their desert climate and open landscapes. Closer to Udaipur, the plateaus and gentler slopes of the Aravalli Range could also be potential sites for solar installations. However, care must be taken to avoid ecologically sensitive areas and to minimize the impact on local flora and fauna. The southeastern parts of Rajasthan, including areas in the Udaipur district and neighboring Banswara and Dungarpur districts, offer a mix of flat and gently rolling terrain that could be suitable for solar PV projects. These regions benefit from good solar radiation and have less intensive agricultural use compared to other parts of the state. It's important to note that while the topography around Udaipur presents various options for solar PV development, factors such as land availability, proximity to power grids, and local regulations would also play crucial roles in determining the most suitable locations for large-scale solar projects.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
