Yavatmal, Maharashtra, India represents an excellent location for year-round solar PV energy generation. Located in the tropical region at coordinates 20.3944°N, 78.1291°E, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods than temperature variations.

Solar Energy Production Potential

The solar energy output data for Yavatmal shows remarkably consistent performance across most seasons. Winter, summer, and autumn all deliver very similar results, producing between 4.84 and 4.90 kWh per day for each kW of installed solar capacity. However, spring stands out as the exceptional season, generating 6.62 kWh per day per kW of installed capacity. This makes spring the ideal time for solar energy generation at this location, producing approximately 36% more energy than other seasons. The consistency across the other three seasons demonstrates that Yavatmal offers reliable solar production year-round, making it highly suitable for solar PV installations.

Optimal Panel Configuration

For maximum year-round solar production at Yavatmal, Maharashtra, fixed solar panels should be tilted at 19 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's path throughout the year and weighting the angles based on solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Yavatmal:

• Monsoon season impacts: Heavy rainfall and increased cloud cover during monsoon periods can significantly reduce solar irradiance
• Dust accumulation: The regional climate can lead to substantial dust buildup on solar panels, reducing their efficiency
• High humidity levels: Tropical humidity may affect equipment performance and longevity
• Extreme weather events: Potential for severe storms, hail, or cyclonic activity that could damage installations

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies should be implemented: Dust Management: Install automated cleaning systems or schedule regular manual cleaning, particularly during dry seasons. Consider anti-soiling coatings on panels to reduce dust adhesion. Weather Protection: Use high-quality mounting systems designed to withstand extreme weather conditions. Install panels with reinforced frames and impact-resistant glass to handle potential hail damage. Drainage and Ventilation: Ensure proper drainage around installations to prevent water accumulation during monsoons. Design mounting systems with adequate ventilation to manage humidity-related issues and prevent overheating. Equipment Selection: Choose inverters and electrical components rated for high humidity and temperature variations typical of tropical climates. Use corrosion-resistant materials for all mounting hardware and electrical connections. Regular maintenance schedules become particularly important in this environment, with more frequent inspections recommended during and after monsoon seasons to ensure optimal performance year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 422 locations across India. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in India by location

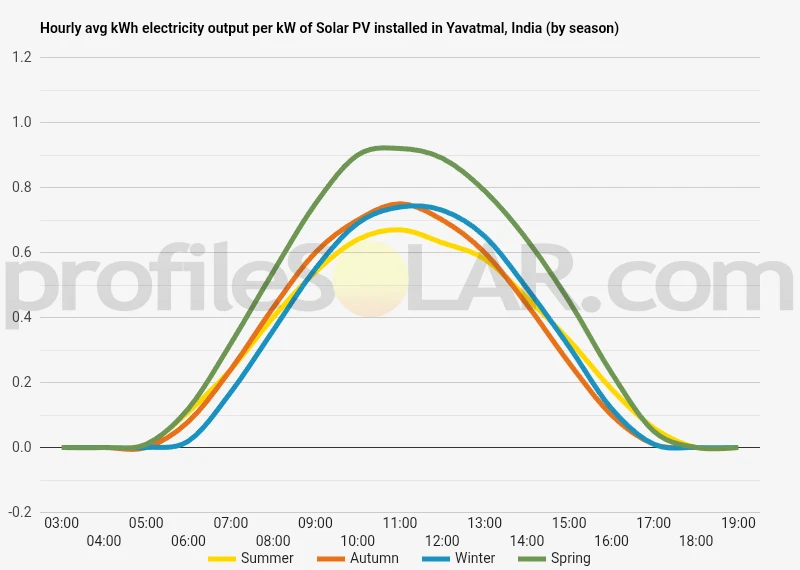

Solar output per kW of installed solar PV by season in Yavatmal

Seasonal solar PV output for Latitude: 20.3944, Longitude: 78.1291 (Yavatmal, India), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Yavatmal, India

To maximize your solar PV system's energy output in Yavatmal, India (Lat/Long 20.3944, 78.1291) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Yavatmal, India

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yavatmal, India. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	26° South in Autumn	36° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yavatmal, India

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yavatmal, India.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Yavatmal, India

Topographical Features of Yavatmal Region

Yavatmal is situated in the eastern part of Maharashtra, India, within the Vidarbha region. The area is characterized by relatively flat to gently rolling terrain that forms part of the Deccan Plateau. This ancient geological formation creates a landscape of moderate elevation changes, with the general elevation ranging from approximately 300 to 400 meters above sea level.

The topography around Yavatmal is predominantly agricultural plains interspersed with low hills and undulating terrain. The region features a mix of black cotton soil areas, known locally as regur soil, which creates fertile but sometimes challenging terrain for construction projects. These soils can expand and contract significantly with moisture changes, requiring careful foundation planning for any large infrastructure developments.

Several seasonal rivers and streams traverse the landscape, including tributaries of the Wardha River system. These waterways create natural drainage patterns that result in gentle slopes and occasional small valleys. The terrain generally slopes eastward toward the river systems, creating natural water flow patterns that influence the local topography.

Terrain Suitability for Solar Development

The relatively flat agricultural plains surrounding Yavatmal present excellent opportunities for large-scale solar photovoltaic installations. The gentle gradients across much of the region mean that extensive grading and earthwork would be minimal, reducing initial development costs significantly. Areas with slopes of less than 5 degrees are particularly well-suited for ground-mounted solar arrays.

The most promising locations for solar development lie in the agricultural areas to the north and northwest of Yavatmal city, where the terrain is exceptionally flat and open. These areas offer large contiguous parcels of land with minimal topographical obstacles. The black cotton soil, while requiring specialized foundation techniques, provides stable ground once properly managed.

Areas to avoid for solar development include the seasonal floodplains near river systems, where periodic inundation could pose risks to equipment. Additionally, the scattered low hills and rocky outcrops, while not extensive, would require additional site preparation costs and could create shading issues if not properly planned around.

The eastern portions of the district, moving toward the state border with Telangana, feature similarly favorable flat terrain but may offer even better access to transmission infrastructure. The relatively uniform elevation across these areas means that solar panels can be optimally oriented without significant terrain-related constraints.

Transportation access is generally good throughout the region, with the flat topography having facilitated the development of road networks that would support the logistics requirements of large-scale solar construction and maintenance operations.

India solar PV Stats as a country

India ranks 5th in the world for cumulative solar PV capacity, with 49,684 total MW's of solar PV installed. This means that 6.50% of India's total energy as a country comes from solar PV (that's 11th in the world). Each year India is generating 36 Watts from solar PV per capita (India ranks 56th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in India?

Yes, there are several incentives for businesses wanting to install solar energy in India. These include:

1. Capital Subsidy: The Ministry of New and Renewable Energy (MNRE) provides a capital subsidy of up to 30% on the cost of installing solar power systems for commercial and industrial establishments.

2. Accelerated Depreciation: Businesses can avail accelerated depreciation benefits under Section 32 of the Income Tax Act, 1961, which allows them to claim tax deductions on investments made in solar projects over a period of five years instead of claiming it all at once.

3. Net Metering: This policy allows businesses to sell excess electricity generated from their rooftop solar system back into the grid at retail rates, thus reducing their electricity bills significantly.

4. Solar Renewable Energy Certificates (SREC): Businesses can earn SRECs by generating renewable energy through their rooftop solar systems and then selling these certificates in the open market or trading platforms like IEX or PXIL at predetermined prices set by state regulatory commissions.

Do you have more up to date information than this on incentives towards solar PV projects in India? Please reach out to us and help us keep this information current. Thanks!
