Balad, Salah ad Din, Iraq presents a mixed picture for year-round solar energy generation, with significant seasonal variations that affect its overall suitability for solar PV installations.

Seasonal Solar Performance

The location shows strong solar energy potential during warmer months but faces considerable challenges in winter. Summer delivers excellent performance at 8.58 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring also provides very good output at 7.02 kWh per day per kW, representing the second-best period for solar energy production. However, the location experiences a dramatic drop in solar output during cooler months. Autumn production falls to 5.23 kWh per day per kW, while winter presents the most challenging conditions with only 3.60 kWh per day per kW of installed capacity. For optimal year-round energy capture at this location, solar panels should be installed at a fixed tilt angle of 29 degrees facing south. This angle maximizes total annual production by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental Challenges and Solutions

Several significant environmental factors can impede solar production at Balad and require careful consideration during installation planning. **Dust and sand accumulation** represents the most critical challenge for solar installations in this region. Iraq's arid climate and frequent sandstorms can quickly coat solar panels, dramatically reducing their efficiency. Regular cleaning schedules are essential, with panels potentially requiring cleaning weekly or even more frequently during peak dust seasons. Installing automated cleaning systems or designing accessible mounting structures for manual cleaning can help maintain optimal performance. **Extreme heat** during summer months can actually reduce solar panel efficiency despite the high solar irradiance. While counterintuitive, solar panels lose efficiency as temperatures rise above their optimal operating range. Installing panels with adequate ventilation underneath, using mounting systems that promote airflow, and selecting panels with better high-temperature performance characteristics can help mitigate this issue. **Potential security concerns** in the region may limit access for maintenance and cleaning, which could allow dust buildup and minor issues to become major problems. Planning for secure, easily accessible installations and training local personnel for routine maintenance can help address these challenges. To maximize energy production despite these challenges, consider these preventative measures:

• Install panels with anti-soiling coatings to reduce dust adhesion
• Design mounting systems with adequate ground clearance and ventilation
• Implement robust monitoring systems to quickly identify performance issues
• Plan for reliable water access for cleaning operations
• Choose high-quality panels rated for extreme temperature variations

Despite these challenges, Balad's location receives substantial solar energy, particularly during the six-month period from spring through summer, making it potentially viable for solar installations with proper planning and maintenance protocols.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 36 locations across Iraq. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Iraq by location

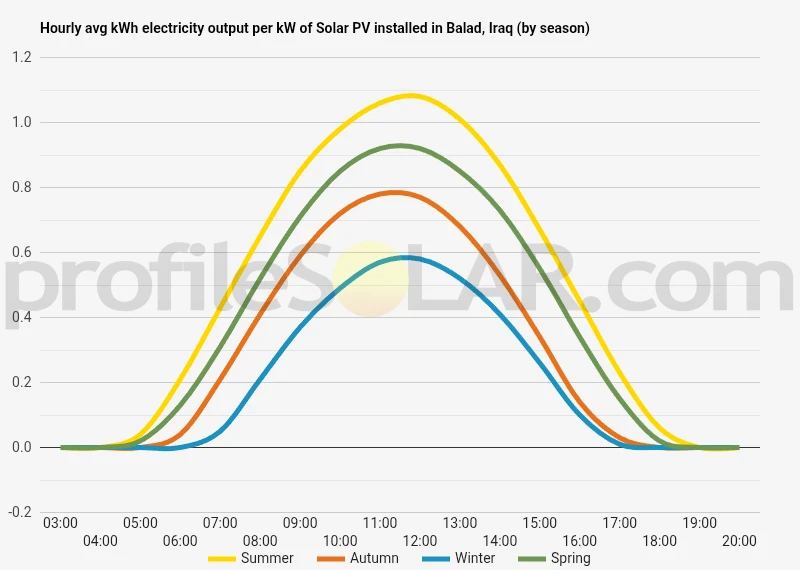

Solar output per kW of installed solar PV by season in Balad

Seasonal solar PV output for Latitude: 34.0155, Longitude: 44.152 (Balad, Iraq), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Balad, Iraq

To maximize your solar PV system's energy output in Balad, Iraq (Lat/Long 34.0155, 44.152) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Balad, Iraq

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Balad, Iraq. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	38° South in Autumn	49° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Balad, Iraq

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Balad, Iraq.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Balad, Iraq

Topographical Features of Balad Region

The area surrounding Balad, Iraq sits within the central Mesopotamian plain, characterized by relatively flat terrain with gentle undulations across the landscape. This region forms part of the broader alluvial plain created by the Tigris and Euphrates river systems over millennia. The elevation in and around Balad typically ranges from approximately 50 to 80 meters above sea level, creating a predominantly level topography with minimal steep gradients or significant elevation changes.

The terrain consists primarily of fertile alluvial soils deposited by ancient river flooding, interspersed with areas of harder clay and sandy compositions. Small wadis and drainage channels crisscross the landscape, though these are generally shallow depressions rather than deep valleys. The overall flatness of the region is interrupted occasionally by low ridges and mounds, but these features rarely exceed 20-30 meters in height above the surrounding plain.

Drainage and Water Features

The Tigris River flows approximately 15 kilometers to the east of Balad, creating a natural boundary and influencing the local drainage patterns. Several irrigation canals and smaller waterways branch off from the main river system, creating a network of water channels that support agricultural activities in the region. These water features generally flow in gentle gradients from northwest to southeast, following the natural slope of the Mesopotamian plain toward the Persian Gulf.

Seasonal variations in water levels can affect some low-lying areas, particularly during spring flooding periods when snowmelt from the northern mountains increases river volumes. However, the generally well-drained nature of the terrain means that standing water issues are typically limited to specific low-lying pockets rather than extensive areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the slightly elevated plateaus and ridges scattered throughout the region. These areas offer several advantages including natural drainage, reduced flood risk, and typically firmer ground conditions that can better support large-scale infrastructure. The elevated positions also tend to have fewer obstructions and more consistent wind patterns that help with panel cooling.

Areas located 3-5 kilometers west and southwest of Balad present particularly favorable conditions, where the terrain rises gently above the surrounding plain while maintaining relatively flat surfaces suitable for large arrays. These locations are sufficiently removed from the primary agricultural zones along the river systems, reducing potential land use conflicts while still maintaining reasonable access to existing infrastructure.

The northwestern approaches to the city also offer promising development potential, where the landscape transitions from the river valley influence toward slightly higher and drier terrain. These areas typically feature more stable soil conditions and reduced vegetation, minimizing site preparation requirements for large installations.

Regions immediately adjacent to existing transportation corridors would provide additional advantages for construction and maintenance access, particularly those areas along the major highways that connect Balad to Baghdad and other regional centers. The combination of suitable topography and infrastructure access makes these locations particularly attractive for utility-scale solar development projects.
