Dhi Qar, Iraq presents a highly favorable location for year-round solar energy generation, though with significant seasonal variation in output. Located in the Northern Sub Tropics at coordinates 31.25°N, 46.25°E, this region benefits from abundant sunshine throughout most of the year.

Seasonal Solar Performance

Summer delivers exceptional solar energy production at 8.36 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 7.16 kWh per day per kW, offering excellent conditions for solar power. Autumn provides moderate output at 5.44 kWh per day per kW, while winter shows the lowest production at 3.89 kWh per day per kW, though this still represents reasonable solar generation compared to many global locations. The optimal months for solar energy production span from late spring through early autumn, with summer providing nearly double the winter output. Even during the lowest-performing winter months, the location maintains decent solar generation capabilities.

Optimal Panel Configuration

For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 27 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental Challenges and Solutions

Several environmental factors in Dhi Qar can significantly impact solar panel performance and require careful consideration during installation:

• Dust and Sand Storms: The region experiences frequent dust storms and sandstorms that can dramatically reduce panel efficiency by coating surfaces with fine particles
• Extreme Heat: Summer temperatures can reach dangerous levels, potentially reducing panel efficiency and accelerating equipment degradation
• Limited Water Resources: The arid climate makes regular panel cleaning challenging due to water scarcity

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several protective measures should be implemented:

• Anti-soiling coatings: Apply hydrophobic and oleophobic coatings to panel surfaces to reduce dust adhesion and make cleaning more effective
• Automated cleaning systems: Install robotic dry-cleaning systems or waterless cleaning solutions to maintain panel surfaces without depleting water resources
• Enhanced cooling systems: Implement passive cooling designs with adequate spacing between panels and ground-mounted systems with airflow underneath to combat heat buildup
• Robust mounting systems: Use reinforced mounting structures designed to withstand high winds and sand abrasion
• Regular maintenance schedule: Establish frequent inspection and cleaning routines, particularly during dust storm seasons

Despite these environmental challenges, Dhi Qar remains an excellent location for solar energy generation when proper installation techniques and maintenance practices are employed. The high solar output during peak months more than compensates for the additional maintenance requirements.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 36 locations across Iraq. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Iraq by location

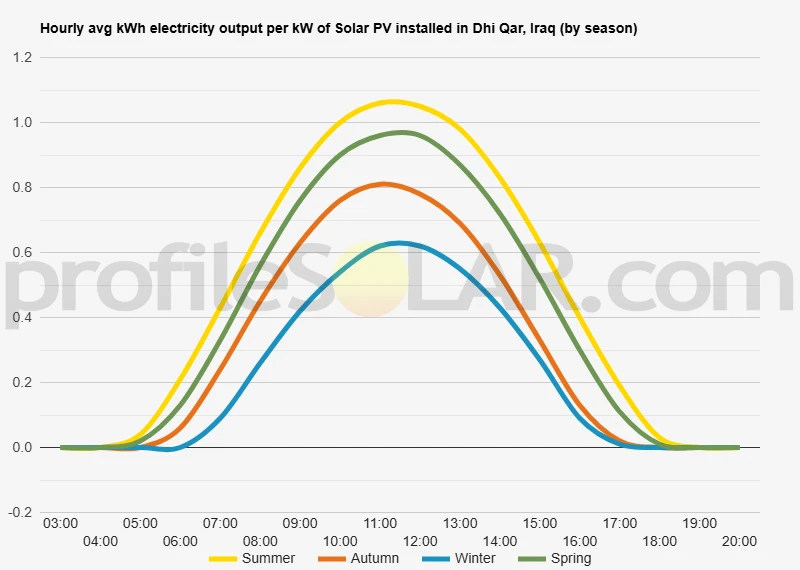

Solar output per kW of installed solar PV by season in Dhi Qar

Seasonal solar PV output for Latitude: 31.25, Longitude: 46.25 (Dhi Qar, Iraq), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Dhi Qar, Iraq

To maximize your solar PV system's energy output in Dhi Qar, Iraq (Lat/Long 31.25, 46.25) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Dhi Qar, Iraq

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Dhi Qar, Iraq. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	36° South in Autumn	46° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Dhi Qar, Iraq

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Dhi Qar, Iraq.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Dhi Qar, Iraq

Topographical Features of the Dhi Qar Region

The landscape around Dhi Qar in southern Iraq is characterized by predominantly flat, low-lying terrain that forms part of the broader Mesopotamian plain. This ancient alluvial region sits between the Tigris and Euphrates rivers, creating a vast expanse of relatively uniform topography with gentle undulations rather than dramatic elevation changes. The area represents classic river delta geography, where centuries of sediment deposition have created an expansive, level surface that extends in all directions from the provincial center.

The terrain consists primarily of fertile alluvial soils interspersed with areas of sandy and clay-rich deposits. Seasonal flooding has historically shaped much of the landscape, though modern irrigation and drainage systems have altered these natural patterns. The region features numerous irrigation channels, agricultural plots, and small settlements scattered across the plain, with occasional palm groves and date plantations providing the only significant vertical relief in an otherwise horizontal landscape.

Elevation changes throughout the area are minimal, with the land rising and falling by only a few meters across considerable distances. This creates an environment where visibility extends far across the plain, interrupted mainly by human settlements, agricultural infrastructure, and the occasional cluster of vegetation along waterways.

Optimal Areas for Large-Scale Solar Development

The flat topography of the Dhi Qar region presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable locations would be the expansive areas of unused or marginal agricultural land that lie away from the main irrigation channels and established farming zones. These areas offer the dual advantage of minimal land-use conflicts while providing the level terrain essential for efficient solar panel installation and maintenance.

Areas to the west and southwest of the main population centers would be particularly well-suited for solar development. These zones typically feature firmer, less flood-prone ground with good accessibility for construction and maintenance vehicles. The consistent flatness eliminates concerns about shading between panel rows and allows for optimal panel orientation without the need for extensive site preparation or grading work.

The eastern portions of the region, while equally flat, may present more challenges due to their proximity to agricultural areas and water management infrastructure. However, sections of this eastern zone that are not actively farmed or are experiencing soil salination issues could serve as excellent alternative sites for solar installations.

Transportation access represents another crucial factor in site selection. Areas near existing roads and power transmission infrastructure would significantly reduce development costs and complexity. The flat terrain means that new access roads can be constructed relatively easily and economically where needed, making even more remote locations potentially viable for large-scale solar projects.
