Kelar, Sulaymaniyah, Iraq presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Solar Energy Production Potential

The solar output data reveals substantial differences between seasons at this Northern Sub Tropics location. Summer delivers the highest energy production at 8.64kWh per day per kW of installed solar capacity, making it an excellent period for solar generation. Spring follows as the second-best season with 6.93kWh/day per kW, providing strong solar output during the March-May period. Autumn shows moderate production levels at 5.25kWh/day per kW, while winter presents the most challenging conditions with only 3.49kWh/day per kW. This winter figure represents less than half of the summer production, indicating that energy storage or grid connection becomes particularly important during the December-February period. For optimal year-round performance, solar panels at Kelar should be installed at a fixed tilt angle of 30 degrees facing south. This angle has been calculated to maximize total annual solar output by accounting for the sun's varying elevation throughout the year and seasonal differences in solar irradiance.

Environmental and Weather Challenges

Iraq's climate presents several significant factors that can impede solar panel performance and require careful planning during installation. Dust accumulation represents the most serious challenge for solar installations in this region. Iraq experiences frequent dust storms, particularly during summer months, and the arid climate generates persistent airborne particles that settle on solar panels. This dust layer can reduce solar output by 20-40% if left uncleaned, making regular maintenance essential. Extreme heat during summer months can reduce panel efficiency, as photovoltaic cells typically lose efficiency as temperatures rise above optimal operating ranges. While summer provides the highest solar irradiance, the intense heat partially offsets these gains.

Preventative Measures for Enhanced Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install automated cleaning systems or schedule frequent manual cleaning, particularly during dust storm seasons
• Use anti-soiling coatings on panels to reduce dust adhesion and make cleaning more effective
• Ensure adequate ventilation around panels to minimize heat buildup and maintain optimal operating temperatures
• Consider slightly steeper mounting angles than the optimal 30 degrees to promote natural dust removal during occasional rainfall
• Install monitoring systems to track performance drops that indicate cleaning needs

Despite these challenges, Kelar's location offers reasonable solar potential, particularly during spring and summer months when energy demands for cooling are typically highest.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 36 locations across Iraq. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Iraq by location

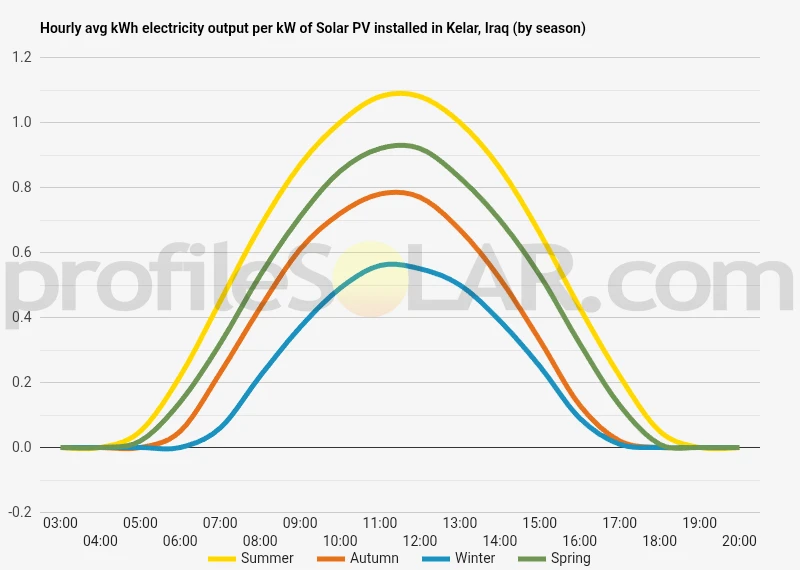

Solar output per kW of installed solar PV by season in Kelar

Seasonal solar PV output for Latitude: 34.6233, Longitude: 45.3131 (Kelar, Iraq), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Kelar, Iraq

To maximize your solar PV system's energy output in Kelar, Iraq (Lat/Long 34.6233, 45.3131) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kelar, Iraq

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kelar, Iraq. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	39° South in Autumn	49° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kelar, Iraq

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kelar, Iraq.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kelar, Iraq

Topographical Features Around Kelar

The landscape surrounding Kelar in Iraq presents a predominantly flat to gently rolling terrain characteristic of the broader Mesopotamian region. This area sits within the transition zone between the more mountainous regions to the north and east, and the expansive alluvial plains that extend southward toward Baghdad and beyond. The elevation changes are generally gradual, with the terrain featuring low hills and undulating countryside rather than steep slopes or dramatic elevation changes. The region exhibits the typical semi-arid topography of northern Iraq, with scattered low ridges and broad valleys that have been shaped by centuries of erosion and seasonal water flow. The soil composition consists largely of sedimentary deposits, creating relatively stable ground conditions across much of the area. Natural drainage patterns follow gentle gradients, with seasonal streams and wadis cutting shallow channels through the landscape during periods of rainfall.

Vegetation and Land Use Patterns

The natural vegetation around Kelar is sparse, consisting primarily of drought-resistant shrubs and seasonal grasses that adapt to the semi-arid climate. Agricultural activities dominate much of the usable land, with fields of wheat, barley, and other crops taking advantage of both rainfall and irrigation systems. Pastoral activities also occur throughout the region, with grazing areas scattered across the less intensively cultivated zones. The existing land use patterns create a patchwork of agricultural fields, fallow areas, and natural grasslands. Many areas experience seasonal variation in their utility for farming, leaving substantial portions of land underutilized during certain periods of the year. This agricultural rhythm creates opportunities for alternative land uses that could complement rather than compete with traditional farming activities.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Kelar would be the elevated plateau areas and gentle slopes that face southward or have minimal shading from surrounding terrain features. These areas typically offer the most consistent exposure to solar radiation throughout the day while maintaining relatively stable ground conditions for equipment installation. The broad, flat expanses to the south and southwest of Kelar present particularly attractive opportunities for solar development. These areas combine favorable topographical conditions with lower agricultural productivity compared to the more fertile valleys, reducing potential conflicts with food production. The terrain in these zones is sufficiently level to minimize grading requirements while still providing adequate drainage to prevent water accumulation around solar equipment. Areas with gentle southern-facing slopes would be especially well-suited for solar installations, as the natural angle of the land can optimize panel positioning without requiring extensive mounting adjustments. The stable geological conditions throughout much of the region would support the infrastructure requirements of large solar facilities, including access roads, electrical connections, and maintenance facilities. The less intensively farmed marginal lands on the periphery of the agricultural zones offer additional opportunities for solar development. These areas often have lower land values and fewer competing uses while still maintaining the favorable topographical characteristics needed for efficient solar energy generation. The relatively open nature of the landscape also facilitates the construction and maintenance access that large-scale solar installations require.
