Solar PV Analysis of Kirkuk, Iraq
The location at Kirkuk, Iraq has a decent potential for generating solar energy throughout the year. However, the effectiveness varies with each season.
In summer, it's great for solar power generation as you can expect about 8.50 kilowatt-hours (kWh) of electricity per day for each kilowatt (kW) of installed solar panels. This is when the sun is out longer and more directly overhead.
Spring also offers good potential with an expected output of approximately 6.85 kWh/day per kW of installed solar panels.
Autumn sees a drop in production to around 5.12 kWh/day per kW because days are shorter and sunlight less direct.
Winter months offer the least productive time due to shorter days and lower sun angles, resulting in about 3.43 kWh/day per kW.
To get the most out of your solar installation year-round at this location, it would be ideal to tilt your panels at an angle of 30 degrees facing southwards - this will allow them to capture maximum sunlight over the course of a day throughout different seasons.
Local factors that could affect production include dust storms which are common in this region – these can block sunlight from reaching the panels efficiently or even damage them if severe enough. Regular cleaning maintenance may be required especially during such weather conditions to keep efficiency high and prevent damage from accumulated dust or sand on panel surfaces.
Additionally, high temperatures during summer might reduce panel efficiency since extreme heat can negatively impact their performance; using cooling systems or installing panels slightly elevated off rooftops allowing air circulation underneath could help mitigate this issue.
Lastly, political instability or conflict in certain regions like Iraq could potentially impede installation processes or regular maintenance schedules needed for optimal operation due to safety concerns – ensuring reliable access and security measures would therefore be important considerations here too.
So while there are challenges associated with setting up efficient photovoltaic systems in Kirkuk given its environmental conditions and other factors, proper planning and maintenance can help overcome them to a significant extent.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 36 locations across Iraq. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Iraq by location

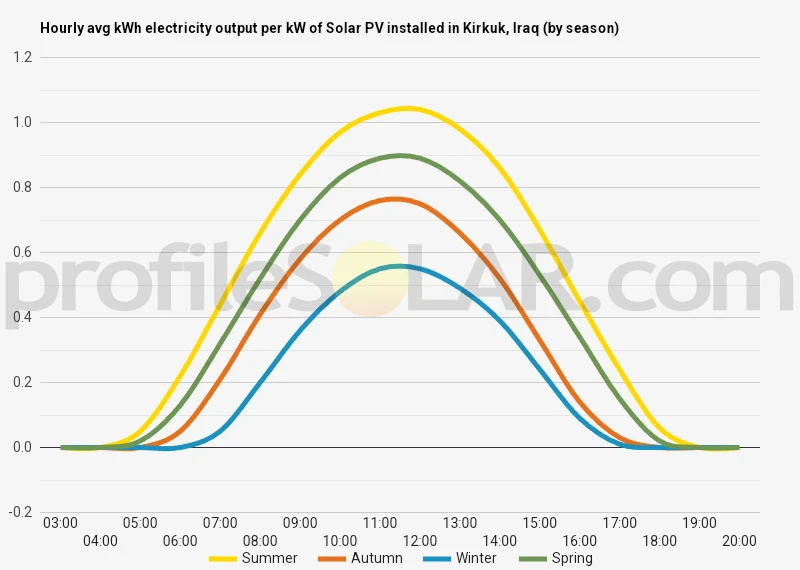

Solar output per kW of installed solar PV by season in Kirkuk
Seasonal solar PV output for Latitude: 35.4711, Longitude: 44.3925 (Kirkuk, Iraq), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 30° South in Kirkuk, Iraq
To maximize your solar PV system's energy output in Kirkuk, Iraq (Lat/Long 35.4711, 44.3925) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Kirkuk, Iraq
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kirkuk, Iraq. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 19° South in Summer | 40° South in Autumn | 50° South in Winter | 28° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Kirkuk, Iraq
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kirkuk, Iraq.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Kirkuk, Iraq
Kirkuk, Iraq is located in the northeastern part of the country and its topography is characterized by a mix of flat plains and low-lying hills. The region is arid with a desert climate, receiving very little rainfall throughout the year.
The terrain around Kirkuk is relatively flat which makes it suitable for large-scale solar photovoltaic (PV) installations. The vast open spaces with minimal obstructions such as tall buildings or trees allow for maximum exposure to sunlight. Moreover, the high levels of solar radiation in this region due to its desert climate make it an ideal location for harnessing solar energy.
Specific areas that could be most suited for large-scale solar PV near Kirkuk would include:
1. The flat plains to the south and southeast of Kirkuk city: These areas are largely uninhabited and provide ample space for large-scale solar farms.
2. Desert regions west of Kirkuk: These areas receive high levels of sunlight throughout the year making them perfect locations for harvesting solar energy.
3. Unused agricultural lands: Some agricultural lands that are not currently being used due to lack of water or other reasons could also be repurposed into solar farms.
It's important to note that while these areas may be geographically suited for large scale PV systems, other factors such as accessibility, proximity to electrical grid infrastructure, land ownership rights, security issues etc., should also be considered before planning any installation.
